Radar Measurement Time-of-Flight Micropilot FMR50

Xian Wellwork Industrial Co., Ltd.
Radar Measurement Time-of-Flight Micropilot FMR50 thumbnail-1
Radar Measurement Time-of-Flight Micropilot FMR50 thumbnail-2
Radar Measurement Time-of-Flight Micropilot FMR50 photo-1

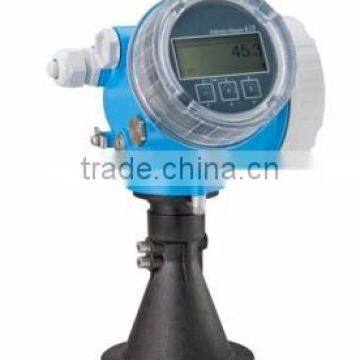

Radar Measurement Time-of-Flight Micropilot FMR50 photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Germany
Model Number:
FMR50
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Germany
Model Number FMR50

Radar measurement Time-of-Flight Micropilot FMR50



Basic model for level liquid applications



Product Overview



Micropilot FMR50 is the best choice in simple reservoir and storage applications as well as in utility processes. The FMR50 free space radar is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.



Benefits

  • Reliable non-contact measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation

  • Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)

  • Seamless integration into control or asset management systems

  • Intuitive, menu-guided operation concept (on-site or via the control system)

  • World's easiest proof test concept for SIL and WHG saves time and cost



Field of application

Encapsulated PVDF or PP-plated horn antenna.

  • Process connections: Thread, mounting bracket or slip-on flange

  • Temperature: -40 to +130°C (-40 to +266°F)

  • Pressure: -1 to +3bar (-14.5 to +43.5psi)

  • Maximum measuring range: 30m (98ft), 40m (131ft) for enhanced dynamics

  • Accuracy: ±2mm

  • K-band: 26GHz

  • International explosion protection certificates, 5-point linearity protocol, WHG overfill prevention, SIL

Technical information



Measuring PrincipleLevel radar
Characteristic / ApplicationFor basic level measurement in liquids, pastes and slurries; non affected by changing media, temperature changes, gas blankets or vapor;
Encapsulated PVDF or PP clad horn antenna

Supply / Communication2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART)

FrequencyK-band (~26 GHz)
Accuracy+/- 2 mm (0.08 in)
Ambient temperature-40...+80 °C
(-40...+176 °F)
Process temperature-40...+130 °C
(-40...+266 °F)
Process pressure absolute / max. overpressure limitVacuum...3 bar
(Vacuum...43.5 psi)
Main wetted partsPVDF, PTFE, Viton, PP, PBT

Process connectionThread:
G1 1/2, MNPT1 1/2
Flange:
UNI DN80...DN150 (3"...6")
Max. measurement distanceStandard: 30 m (98 ft)
With enhanced dynamics: 40 m (131 ft)
Output4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus

Certificates / ApprovalsATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, INMETRO, KC
Overfill prevention WHG
SIL

OptionsDisplay
Customized parameterization
PWIS free
SpecialitiesSIL 2 according to IEC 61508,
Safety and reliability with Multi-Echo Tracking,
HistoROM
Application limitsMaximum measuring range is dependent on the tank form and/or application:

Ammoniacal gas phase:
FMR54 in stilling well
Strong buildup formation:
FMR54 with air purge
Low DK:
FMR51
Only PTFE resistant:
FMR52
Custody transfer measurement:
FMR5xx
