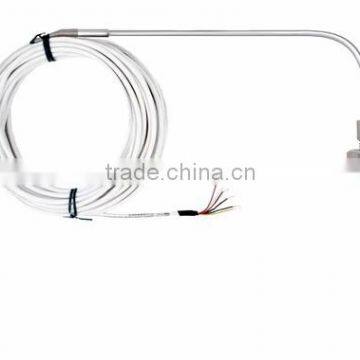

Omnigrad T TST310 RTD Thermometer, Cable Probe

Xian Wellwork Industrial Co., Ltd.
Omnigrad T TST310 RTD Thermometer, Cable Probe thumbnail-1
Omnigrad T TST310 RTD Thermometer, Cable Probe thumbnail-2
Omnigrad T TST310 RTD Thermometer, Cable Probe photo-1
Omnigrad T TST310 RTD Thermometer, Cable Probe photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Germany
Model Number:
TST310
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Germany
Model Number TST310

Omnigrad T TST310 RTD thermometer, cable probe



Cost efficient RTD sensor for use in many process and laboratory applications



Product Overview




The RTD cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables the cable probe to detect rapid temperature changes fast and accurate.

Benefits

  • High flexibility through user-specific insertion lengths and variable process connections

  • Fast response time

  • Single or double Pt100 sensor of accuracy class A, B, or AA as per IEC 60751

  • Types of protection for use in hazardous locations: Intrinsic safety (Ex ia) and non-sparking (Ex nA)

Field of application

The resistance thermometer is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid media like air, water, oil and others.

Technical information



Measuring PrincipleResistance Temperature Detector
Characteristic / Applicationmetric style
cable probe
suitable for hazardous areas
process connection as compression fitting
Thermowell / protection tubewithout (not intended to use with thermowell)
Insert / probemineral insulated (MI), flexible
Outer diameter protection tube3,0 mm (0,12'')
6,0 mm (0,24'')
Max. immersion length on requestup to 10.000,00 mm (393,70'')
Material protection tube/thermowell1.4404 (316L)
1.4571 (316Ti)
Process connectioncompression fitting:
G1/4"
G1/2"
NPT1/4"
NPT1/2"
Tip shapestraight
Operating temperature rangePT 100:
-50 °C ...400 °C
(-58 °F ...752 °F)
Max. process pressure (static)at 20 °C: 25 bar (363 psi)
Accuracyclass A acc. to IEC 60751
class B acc. to IEC 60751
1/3 DIN class B acc. to IEC 60751
Response timet50 = 3 s
t90 = 6 s
Integration head transmitterno
Ex - approvalsATEX II1/2D Ex ia IIIC,II1G Ex ia IIC T6
ATEX II1D Ex ia IIIC, II1G Ex ia IIC T6
ATEX II1G Ex ia IIC T6
ATEX II 3 G Ex nA IIC T6, II3D
NEPSI Ex ia IIC T6
IECEx Ex ia IIC T6 Ga
NEPSI Ex nA IIC T6
