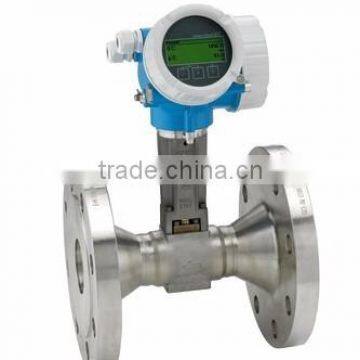

The reducer version Prowirl R provides an integrated reduction of the line size by 1 or 2 diameters and therefore offers an improved low flow performance. Prowirl R 200 offers industry-compliant two-wire technology for seamless integration into existing infrastructures and control systems. Additional advantages are high operational safety in hazardous areas thanks to an intrinsically safe design, and a familiar installation procedure.

Benefits

• Integrated temp. measuring for mass/ energy flow of saturated steam (opt.)

• Cost and time saving – no pipework modifications needed for line size reduction

• High availability – proven robustness, resistance to vibration, temperature shocks and water hammer

• No maintenance – lifetime calibration

• Convenient device wiring – separate connection compartment

• Safe operation – no need to open the device due to display with touch control, background lighting

• Integrated verification – Heartbeat Technology™

Field of application

• Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic)

Device properties

• Integrated diameter reduction by 1 or 2 line sizes

• Nominal diameter (mating pipe) up to DN 250 (10")

• Installation length according to industry standard

• Display module with data transfer function

• Robust two-chamber housing

• Plant safety: worldwide approvals (SIL, Haz. area)

• Technical information
