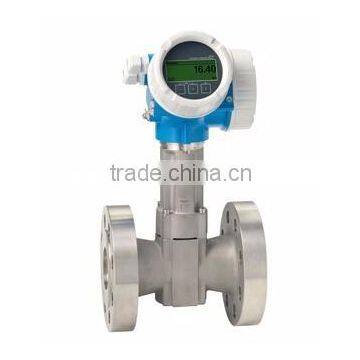

Proline Prowirl O 200 Vortex Flowmeter

Xian Wellwork Industrial Co., Ltd.
Proline Prowirl O 200 Vortex Flowmeter thumbnail-1
Proline Prowirl O 200 Vortex Flowmeter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Germany
Model Number:
O 200
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Germany
Model Number O 200

Proline Prowirl O 200 Vortex flowmeter

The flowmeter with a high pressure sensor, available as compact or remote version

Product Overview



The Prowirl O measuring tube is an all-cast design. It is especially designed for pressure ranges >40 bar and up to 250 bar. The proven and patented capacitive DSC sensor ensures high precision measured values even under the toughest process conditions. Prowirl 0 200 offers industry-compliant two-wire technology for seamless integration into existing infrastructures and control systems.

Benefits

  • Integrated temperature measurement up to PN 160 (Class 600)

  • Highest mechanical integrity for flow measurement – special measuring tube material

  • High availability – proven robustness, resistance to vibrations, temperature shocks & water hammer

  • No maintenance – lifetime calibration

  • Convenient device wiring – separate connection compartment

  • Safe operation – no need to open the device due to display with touch control, background lighting

  • Integrated verification – Heartbeat Technology™

Field of application

  • Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic)

Device properties

  • Process pressure up to PN 250 (Class 1500)

  • DSC sensor made of Titanium (PN > 160 bar/Cl.600)

  • Installation length according to industry standard

  • Display module with data transfer function

  • Robust two-chamber housing

  • Plant safety: worldwide approvals (SIL, Haz. area)

  • Technical information



Measuring PrincipleVortex
Product headlineThe flowmeter with a high pressure sensor, available as compact or remote version. Integrated temperature measurement up to PN 160 (Class 600). The specialist for applications with very high process pressure.
Sensor featuresHighest mechanical integrity for flow measurement – special measuring tube material. High availability – proven robustness, resistance to vibrations, temperature shocks & water hammer. No maintenance – lifetime calibration. Process pressure up to PN 250 (Class 1500). DSC sensor made of Titanium (PN > 160 bar/Cl.600).
Transmitter featuresConvenient device wiring - separate connection compartment. Safe operation - no need to open the device due to display with touch control, background lighting. Integrated verification - Heartbeat Technology™. Display module with data transfer function. Robust two-chamber housing.
Nominal diameter rangeDN 15 to 150 (½ to 6")
Wetted materialsMeasuring tube: 1.4408 (CF3M); 1.4571 similar to 316Ti DSC sensor: UNS N07718 similar to Alloy 718, 2.4668; Titanium grade 5 similar to 3.7165
Connection: 1.4408 (CF3M); 1.4571 similar to F316 Ti; F316/F316L similar to 1.4404
Measured variablesVolume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature
Max. measured errorVolume flow (liquid): ±0.75 %
Volume flow (steam, gas): ±1.00 %
Mass flow (liquid): ±0.85%
Mass flow (steam, gas): ±1.7 %
Measuring rangeLiquid: 0.16 to 545 m³/h (0.09 to 321 ft³/min)
depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
Steam, gas: 2 to 7262 m³/h (1.18 to 4274 ft³/min)
depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)
Max. process pressurePN 250, Class 1500, 40K
Medium temperature rangePN 63 to 160, Class 600: –200 to +400 °C (–328 to +752 °F)
PN 250, Class 900 to 1 500: –50 to +400 °C (–58 to +752 °F)
Ambient temperature rangeCompact version (standard): –40 to +80 °C (–40 to +176 °F)
Compact version (option): –50 to +80 °C (–58 to +176 °F)
Remote version (standard): –40 to +85 °C (–40 to +185 °F)
Remote version (option): –50 to +85 °C (–58 to +185 °F)
Sensor housing materialSensor connection housing: AlSi10Mg, coated; 1.4408 (CF3M)
Transmitter housing materialAlSi10Mg, coated; 1.4404 (316L)
Degree of protectionCompact version: IP66/67, type 4X enclosure
Sensor remote version: IP66/67, type 4X enclosure
Transmitter remote version: IP66/67, type 4X enclosure
Display/Operation4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available
Outputs4-20 mA HART (passive)
4-20 mA (passive)
Pulse/frequency/switch output (passive)
Inputs4-20 mA (passive)
Digital communicationHART, PROFIBUS PA, FOUNDATION Fieldbus
Power supplyDC 12 to 35 V (4-20 mA HART with/without pulse/frequency/switch output)
DC 12 to 30 V (4-20 mA HART, 4-20 mA)
DC 12 to 35 V (4-20 mA HART, pulse/frequency/switch output, 4-20 mA input)
DC 9 to 32 V (PROFIBUS PA, pulse/frequency/switch output)
Hazardous area approvalsATEX, IECEx, cCSAus
Other approvals and certificates3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, functional safety
PED, CRN, AD 2000
NACE MR0175/MR0103, PMI (on request); only Class 900/1500: welding test acc. to ISO 15614-1, similar to ASME IX (on request)
