Proline Prowirl D 200 Vortex flowmeter
Negotiable
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- Xi'an
- Credit Card
You May Like
Product Details
| Place of Origin | Germany | Model Number | D 200 |
Product Description

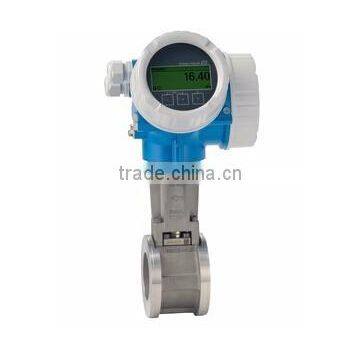

Proline Prowirl D 200 Vortex flowmeter
Cost-effective wafer design, available as compact or remote device version
Product Overview
The Prowirl D measuring tube is a disc/wafer model. The flowmeter is installed between flanges and mainly used for light duty applications. The proven and patented capacitive DSC sensor ensures high precision measured values. Prowirl D 200 offers industry-compliant two-wire technology for seamless integration into existing infrastructures and control systems, as well as high operational safety in hazardous areas thanks to an intrinsically safe design, and a familiar installation procedure.
Benefits
Integrated temperature measurement for mass/energy flow of saturated steam
Easy alignment of the sensor – included centering rings
High availability – proven robustness, resistance to vibration, temperature shocks and water hammer
No maintenance – lifetime calibration
Convenient device wiring thanks to a separate connection compartment
Safe operation – no need to open the device due to display with touch control, background lighting
Integrated verification – Heartbeat Technology™
Field of application
Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic)
Device properties
Installation length of 65 mm (2.56 in)
No flanges
Low weight
Display module with data transfer function
Robust two-chamber housing
Plant safety: worldwide approvals (SIL, Haz. area)
Technical information
| Measuring Principle | Vortex | |
| Product headline | The flowmeter with a cost-effective wafer design, available as compact or remote version. Integrated temperature measurement for mass/energy flow of saturated steam. For all basic applications and for 1-to-1 replacement of orifice plates. | |
| Sensor features | Easy alignment of the sensor – included centering rings. High availability – proven robustness, resistance to vibrations, temperature shocks & water hammer. No maintenance – lifetime calibration. Face-to-face length of 65 mm (2.56 in). No flanges. | |
| Transmitter features | Convenient device wiring - separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology™. Display module with data transfer function. Robust two-chamber housing. | |
| Nominal diameter range | DN 15 to 150 (½ to 6") | |
| Wetted materials | Measuring tube: 1.4408 (C3FM) DSC sensor: 1.4435 (316/316L) | |
| Measured variables | Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature | |
| Max. measured error | Volume flow (liquid): ±0.75 % Volume flow (steam, gas): ±1.00 % Mass flow (liquid): ±0.85% Mass flow (steam, gas): ±1.7 % | |
| Measuring range | Liquid: 0.16 to 625 m³/h (0.09 to 368 ft³/min) depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F) Steam, gas: 2 to 8342 m³/h (1.18 to 4910 ft³/min) depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a) | |
| Max. process pressure | PN 40, Class 300, 20K | |
| Medium temperature range | Standard: –40 to +260 °C (–40 to +500 °F) High/low temperature (option): –200 to +400 °C (–328 to +752 °F) High/low temperature (on request): –200 to +450 °C (–328 to +842 °F) | |
| Ambient temperature range | Compact version (standard): –40 to +80 °C (–40 to +176 °F) Compact version (option): –50 to +80 °C (–58 to +176 °F) Remote version (standard): –40 to +85 °C (–40 to +185 °F) Remote version (option): –50 to +85 °C (–58 to +185 °F) | |
| Sensor housing material | Sensor connection housing: AlSi10Mg, coated; 1.4408 (CF3M) | |
| Transmitter housing material | AlSi10Mg, coated; 1.4404 (316L) | |
| Degree of protection | Compact version: IP66/67, type 4X enclosure Sensor remote version: IP66/67, type 4X enclosure Transmitter remote version: IP66/67, type 4X enclosure | |
| Display/Operation | 4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available | |
| Outputs | 4-20 mA HART (passive) 4-20 mA (passive) Pulse/frequency/switch output (passive) | |
| Inputs | 4-20 mA (passive) | |
| Digital communication | HART, PROFIBUS PA, FOUNDATION Fieldbus | |
| Power supply | DC 12 to 35 V (4-20 mA HART with/without pulse/frequency/switch output) DC 12 to 30 V (4-20 mA HART, 4-20 mA) DC 12 to 35 V (4-20 mA HART, pulse/frequency/switch output, 4-20 mA input) DC 9 to 32 V (PROFIBUS PA, pulse/frequency/switch output) | |
| Hazardous area approvals | ATEX, IECEx, cCSAus | |
| Other approvals and certificates | 3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, functional safety PED, CRN NACE MR0175/MR0103, PMI (on request) | |
