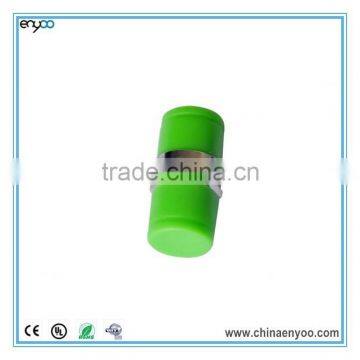

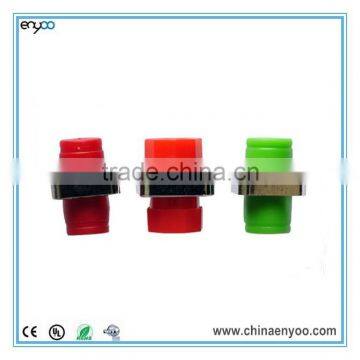

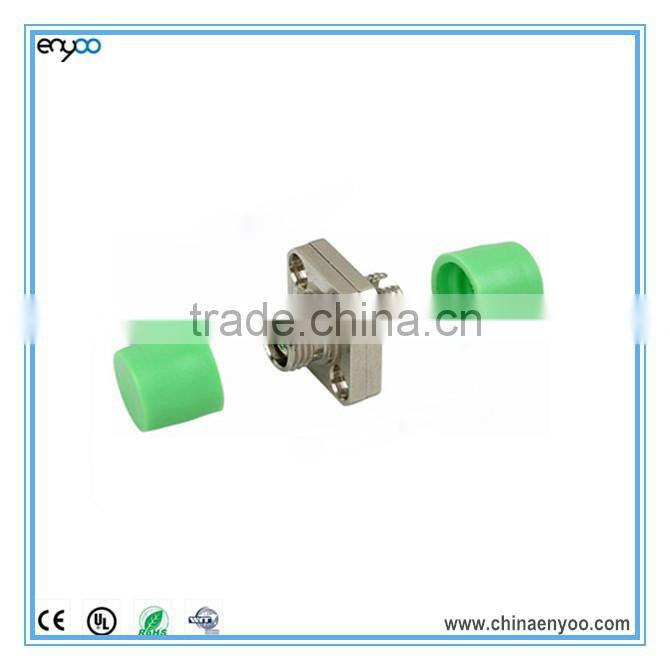

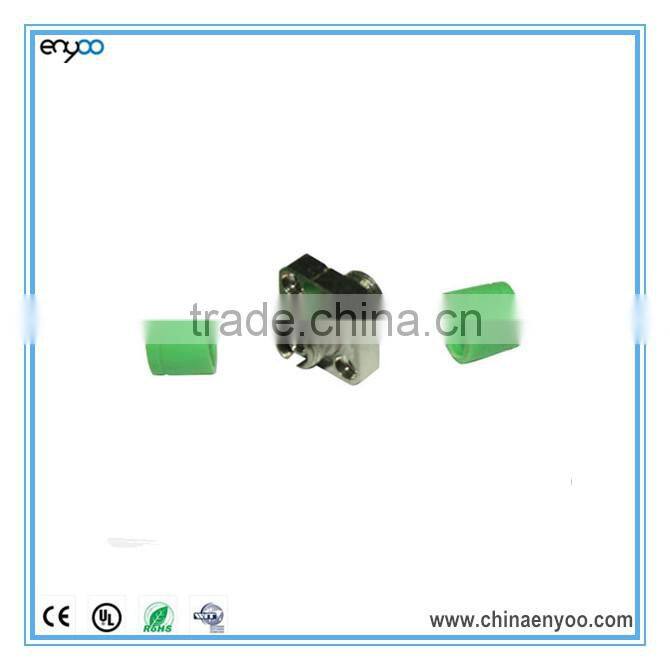

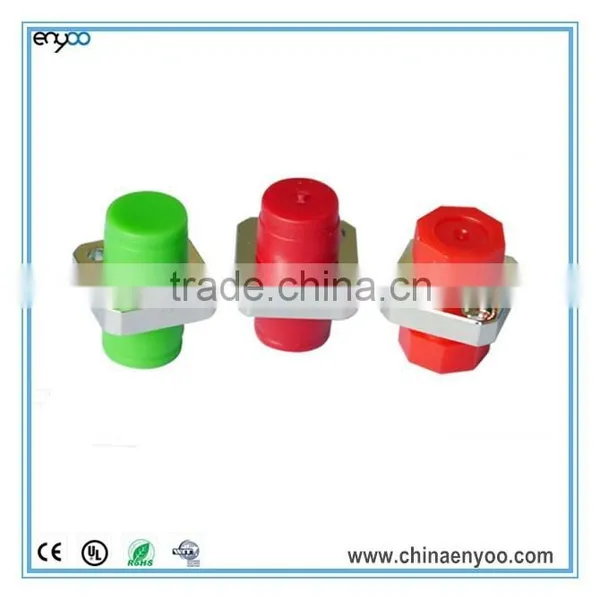

FC APC Fiber Optic Adapters
Enyoo offers a range of high quality FC adaptors featuring precision alignment sleeves for high reliability and better reconnectability. FC adaptors come with ceramic sleeves for singlemode and phosphor bronze sleeve for multimode. The housing has a metal body and a M8 nut.
FC APC Fiber Optic Adapters Features
Complies with IEC 61754-13 and TIA 604-4-A
High precision alignment sleeve for low insertion loss
Low insertion loss and high reconnectability
Narrow key, 2.06mm for APC and PC connectors
RoHS, REACH SvHC compliant
Available in simplex only with DD footprint
FC Fiber Optic Adapters Applications
Telecommunications networks
Local area networks
Data processing networks
Cable television
Premises distribution
Test and laboratory equipment
Industrial and military application
FC APC Fiber Optic Adapters Technical Specification
| CERAMIC | PHOSPHOR BRONZE | CONFORMANCE | |
| Insertion Loss (Typ) | 0.1dB | 0.15dB | IEC 61300-2-2 |
| Mating Durability | 500 | IEC 61300-2-2 | |
| Receptacle Retention Force | 2N – 5.9N | IEC 61754-13 | |
| Operating temperature | -25 to +70oC, 12 cycles | IEC 61300-2-22 | |
FCAPC Fiber Optic Adapters Ordering Information
| MODE | TYPE | MOUNT TYPE | PART NO. |
| SM | APC | DD | FCSAPC-DD |
| SM | PC | DD | FCSPC-DD |
| MM | PC | DD | FC2MPC-DD |
| SM | APC | SQUARE | FCSAPC-SQ |
| SM | PC | SQUARE | FCSPC-SQ |
| MM | PC | SQUARE | FC2MPC-SQ |
