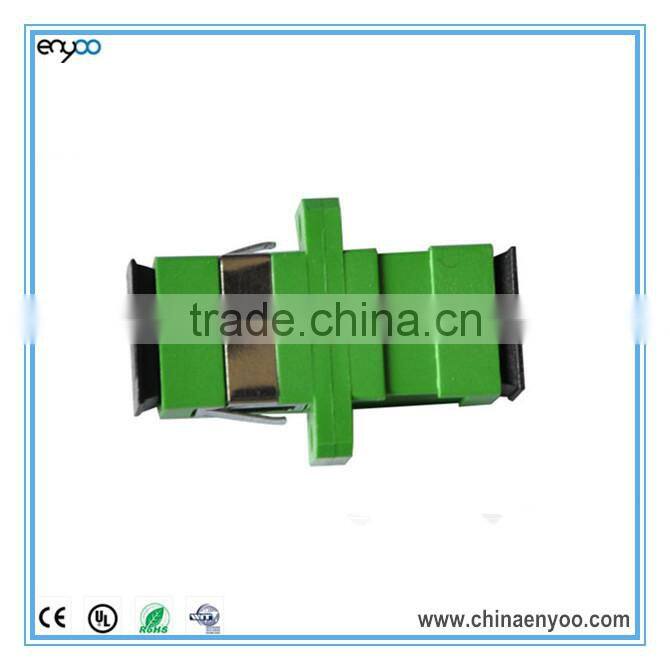

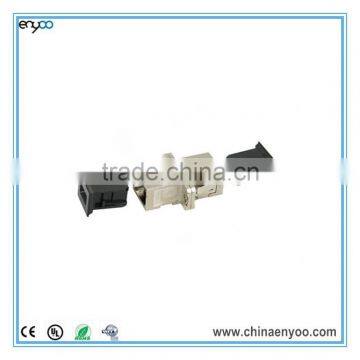

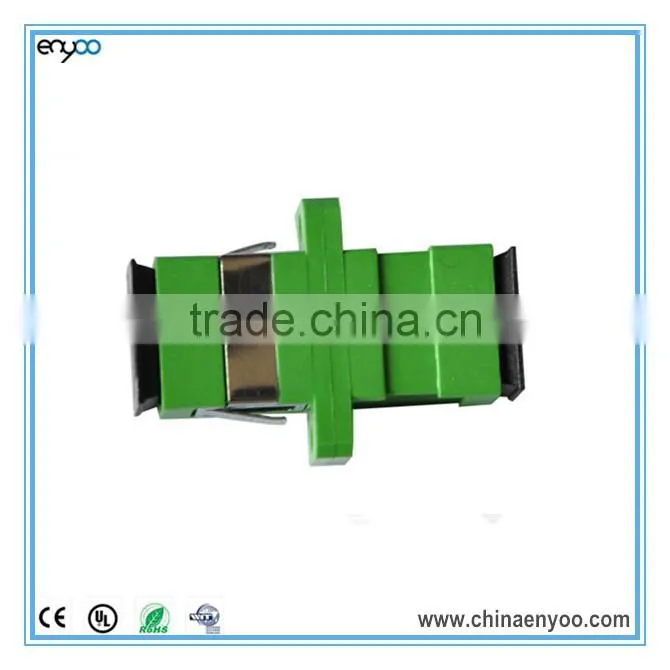

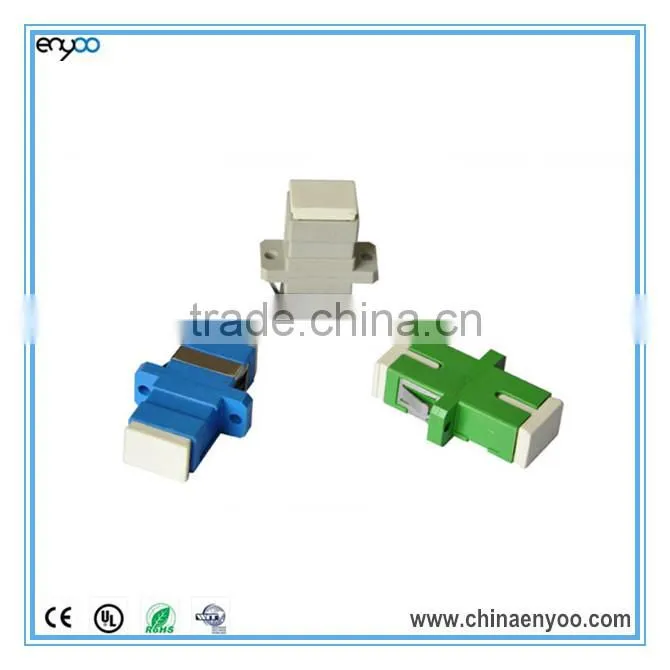

SC simplex fiber optic couplers
Enyoo offers a range of high quality SC simplex fiber optic couplers which have high precision alignment sleeves for reliability and improved reconnectability. For singlemode applications a ceramic sleeve is supplied to ensure a high precision alignment. For multimode applications a phosphor bronze sleeve is supplied. The housing is available in different colours with options for flange or flangeless body, metal clips or inbuilt clips
sc simplex fiber optic couplers Features
Complies with IEC 61754-4 and IEC 60874-14 standards
High precision alignment sleeve
Low insertion loss and improved reconnectability
RoHS, REACH SvHC compliant
Available in simplex and duplex adaptors
Also available are SC simplex adaptors with a shutter
sc simplex fiber optic couplers Applications
Data centres, premise installations, telecommunication networks
Ethernet, fibre channel, ATM, LAN, MAN and WAN
sc simplex fiber optic couplers Technical Specification
| CERAMIC | PHOSPHOR BRONZE | CONFORMANCE | |
| Insertion Loss (Typ) | 0.1 dB | 0.15 dB | IEC 61300-3-4 |
| Mating Durability | - | 500 matings | IEC 61300-2-2 |
| Receptacle Retention Force | - | 2N – 5.9N | IEC 61754-4 |
| Operating temperature | - | -25 to +70oC, 12 cycles | IEC 61300-2-22 |
