MU adapters Detailed Product Description
cables together. They are available for use with either singlemode or multimode patch
cables. We provides an extensive line of fiber optic adapters that offer superior
low loss performance with very high repeatability. These products are designed and
manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.
Please call with your specific requirements.

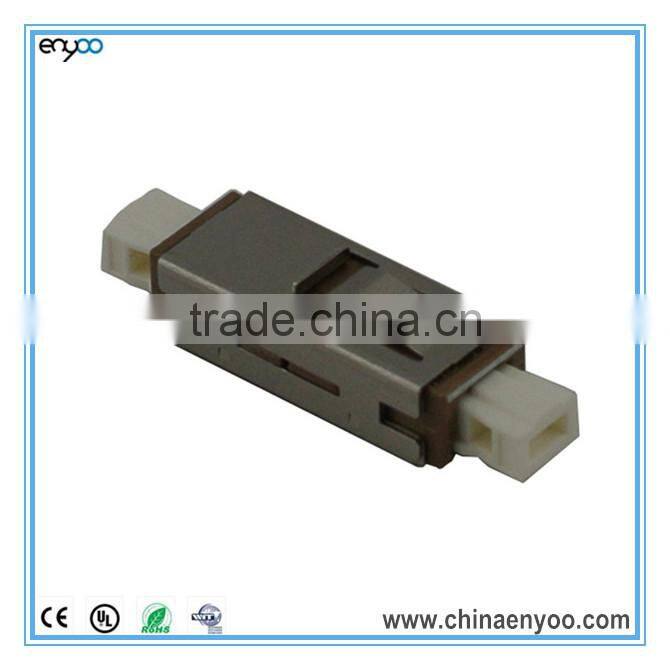

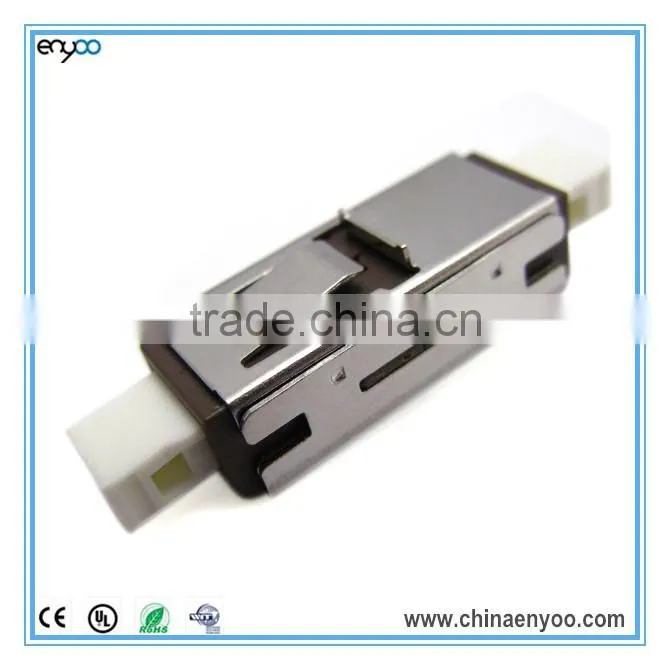

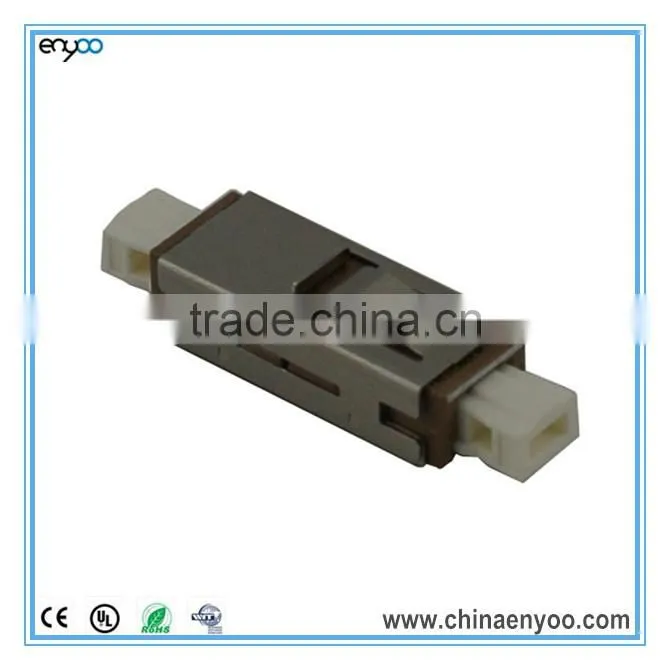

Specifications of MU Fiber Adapter/Adaptor/Coupler
MU Fiber optic adapters
CHARACTERISTIC:
1)Parameters:
Optical Parameter | W/ Japanese Ceramic Sleeve | W/ Chinese Ceramic Sleeve | W/ P.B Sleeve |
Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
Durability | <0.10 dB typical change, 1000 times | <0.20 dB typical change, 1000 times | <0.30 dB typical change, 500 times |
Operating Temp. | -20 ~+ 75°C | ||
Storage Temp. | -40 ~+ 85°C | ||
2) Ceramic and phosphor bronze sleeve tube available
3) 100% test before shipment
4) Accurate external size
5) Excellent changeability and directivity
6) Hybrid and duplex type optional
APPLICATIONS:
1) Optical communication system 2) Optical instruments measuring appliance 3) Optical fiber sensor 4) Optical fiber CATV
