MPO Adapters
US$ 3 - 6
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
MPO
Model Number:
MPO
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SC/SC Simplex Fiber Optic CouplersUS$ 0.1 - 0.5MOQ: 1 Piece -
MTRJ Fiber Optic Adapters,MTRJ Fiber Coupler,MTRJ Fiber AdaptorsUS$ 0.5 - 1.5MOQ: 10 Pieces
-
Telecommunications st Fiber Adapters sm mm Singlemode Multimode TypeUS$ 0.1 - 0.2MOQ: 1 Piece
-
SC Singlemode Fiber Optical AdapterUS$ 0.1 - 0.5MOQ: 1 Piece
-
Metal Sheath LC Male - SC Female Hybrid Adapters Duplex SinglemodeUS$ 3 - 9MOQ: 1 Piece
Brand Name
MPO
Model Number
MPO

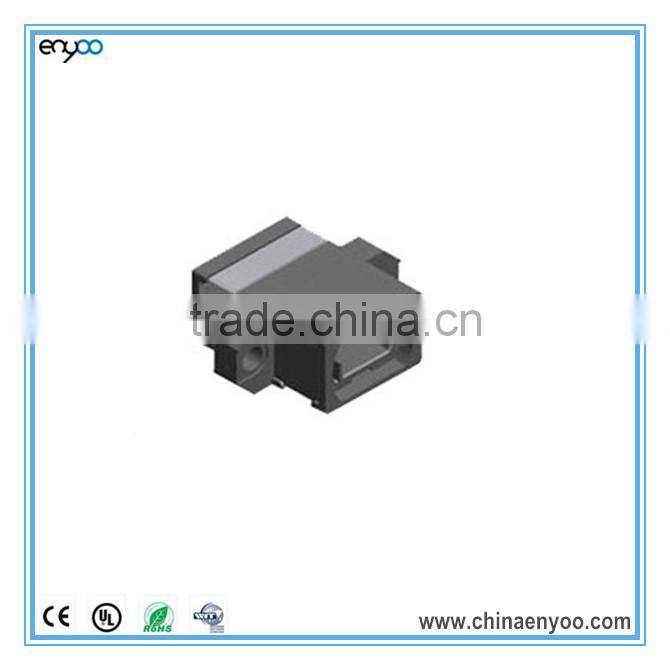

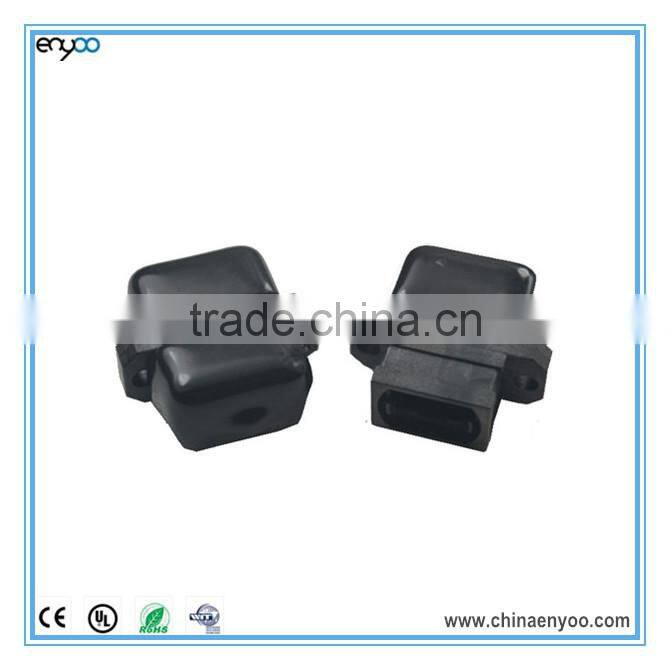

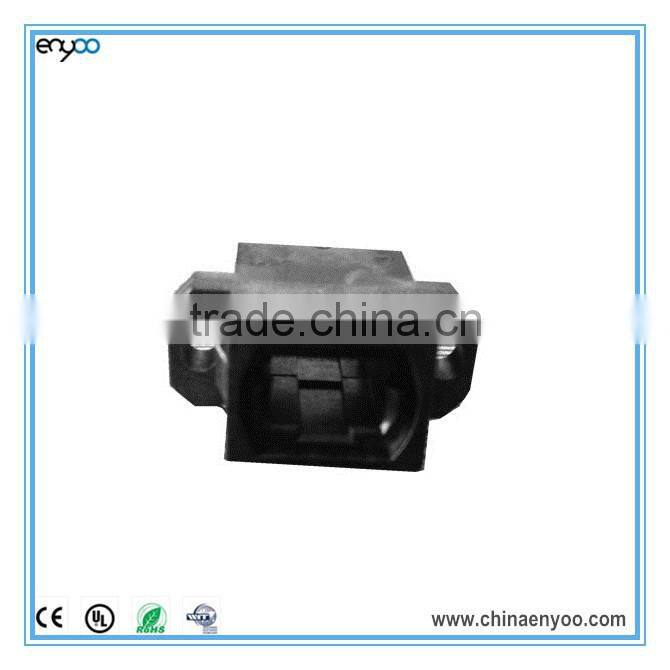

MPO Adapters
Enyoo’s MPO adapters provide a wide variety of packaging options for connecting high density MPO/MTP® connectors. Made in both die-cast and thermoplastics, MPO adapters are precision manufactured to ensure intermateability with industry standard assemblies and connectors. Available with various flange styles, MPO adapters meet the challenges and mechanical requirements of highly dense system designs while maintaining industry standard footprints
Features
- • Meets IEC 61754-7 and TIA/EIA 604-5 intermateability standards • Accepts industry standard MPO/MTP® interfaces • Plastic or EMI protective die-cast versions • Multiple flange options including standard, rotated, or reduced • Optional internal shutter mechanisms on both sides of the adapter to assist in eye safety requirements • Shutter requires no manual actuation • Flange on die-cast version completely covers panel cutout • Matched keyway option available
Applications & Associated Standards
- Array trunk cabling
- Array fiber to single fiber cassettes
- High fiber density card edge access
- Optical switching interframe connections
- Meets IEC Standard 61754-7
- Meets TIA/EIA 604-5 Type MPO
- Structured cabling per TIA-568-C
- Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- Infiniband Compliant
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- SNAP 12
- POP 4
- QSFP
- CXP
