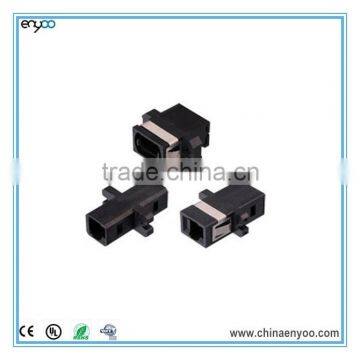

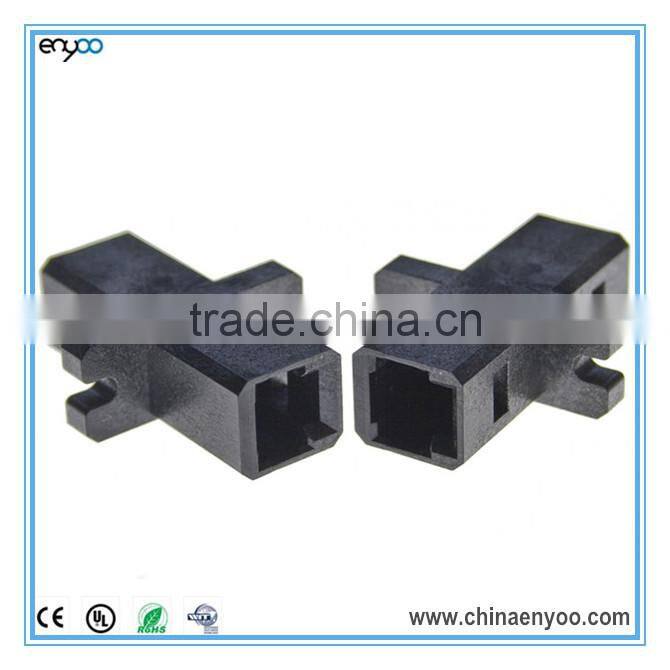

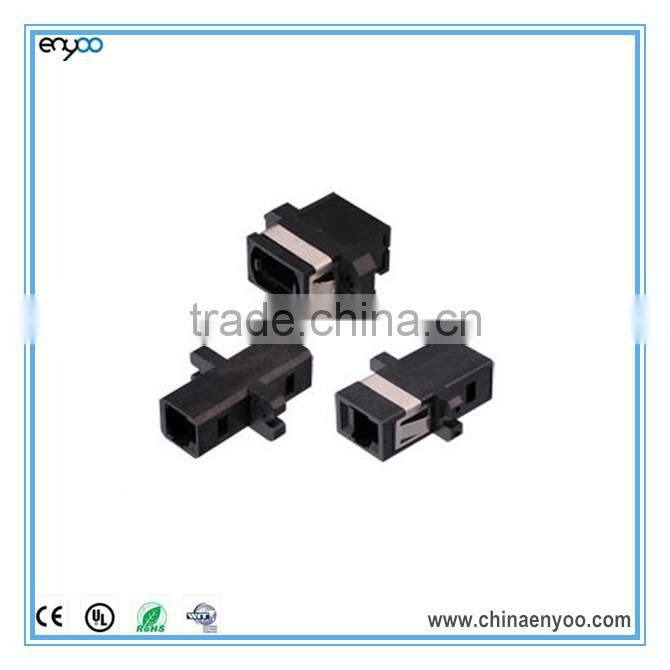

MTRJ fiber optic Adapters
Enyoo offers a choice of MTRJ fiber optic adaptors for alignment of the MTRJ connectors. In the case of the MTRJ system the alignment is carried out by two small pins fitted to one of the connectors and the adapter is designed to support and lock the connectors. When joining MT-RJ connectors, one connector must always be male with pins and one must be female without pins.
Features
Plug-jack (RJ-45) design
TIA/EIA568-A Compliant
Precision moulded for proper alignment
Available in black and beige coloured body
MTRJ fiber optic Adapters Applications
Gigabit Ethernet, Asynchronous Transmission Method (ATM)
Premise installations
Industrial and military applications
MTRJ fiber optic Adapters Technical Specification
| Singlemode | CONFORMANCE | ||
| Insertion Loss (Typ) | 0.2dB | IEC 61300-3-4 | |
| Mating Durability | 500 matings 500 matings | IEC 61300-2-2 | |
| Vibration Test | 10 - 55Hz 0.75 amplitude | IEC 61300-2-1 | |
| Drop Test | Drop height 1m, 5 drops | IEC 61300-2-12 | |
| Receptacle Retention Force | 2N – 5.9N | IEC 61754-13 | |
| Operating temperature | -25 to +70oC, 12 cycles | IEC 61300-2-22 | |
Ordering Information
| Type | Color | Part No. |
| MM | BEIGE | MTRJ-BEIGE |
| MM | BLACK | MTRJ-BLK |
