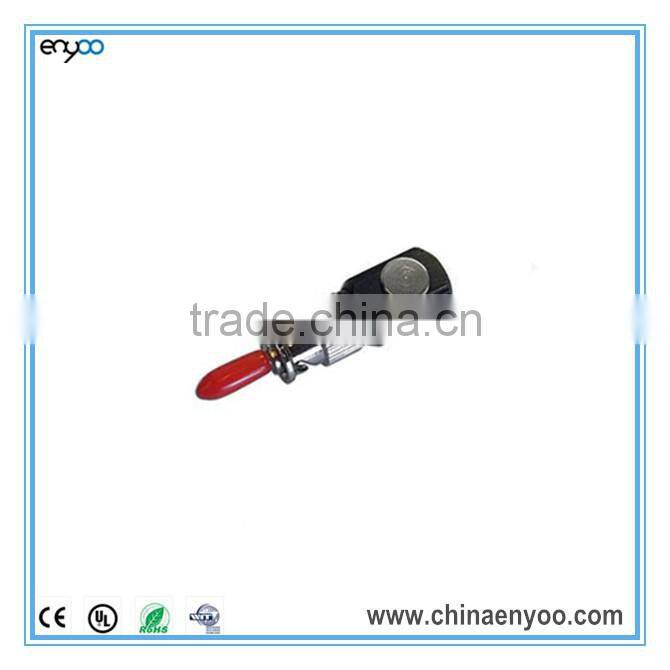

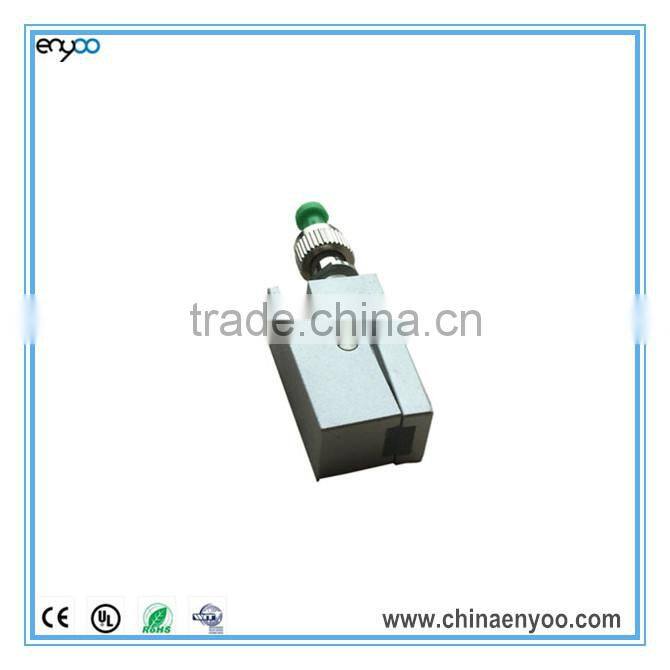

ST Bare Fiber Adapters

Name: ST Bare Fiber Adapters
Brand: Enyoo or OEM
SKU: 141944522
Availability: InStock

Cixi Enyoo Optronics & Appliance Factory

US$ 5 - 8 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Enyoo or OEM

Model Number:

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Enyoo or OEM

Model Number ST

Product Description

Bare fiber adapters

Applications

Temporarily connectorizes bare fiber
Testing bare fiber, fiber on the reel, fiber before and after installation
Temporary connections to OTDRs, Power Meters, Talksets, Demo Equipment, Light Sources, Data & Telecom Equipment and Dark Fiber
Maintenance, Restoration and Installation Jobs

Features

Technology Award Finalist
Constructed of machined aluminum
Stainless steel connector modules
Requires only .14" to .55" of fiber exposed after cleaving
Accepts buffer up to 900uM
Reusable, easy clean-out
Interchangeable connector modules
Unique holding mechanism utilizing new micropads to hold the fiber secure during testing

Description

The Bare Fiber Adapter is a most affordable and easy method for temporarily connecting bare fiber with all industry standard connectors. It provides a simple and easy method to quickly interconnect any standard fiber connector to a piece of unterminated (bare) fiber to meet service, test or communication requirements.
A few unique and distinctive features set it apart from other available products. These features are the fiber holding mechanism, removable - interchangeable connector modules (tips) and the small amount of bare fiber required to expose after cleaving for insertion. It was also recognized worldwide as a Technology Award Finalist for a product which demonstrated the widest range of technological merit, usefulness to the marketplace and design.

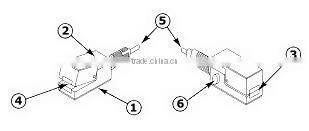

Part Identification


		1. Adapter Body 2. Pressure Foot 3. Micropads 4. Fiber Entry Hole 5. Connector Module(s) 6. Thumb Screw

Design


It is engineered out of aluminum with stainless steel connector modules. Fiber Plus International's micropad system is incorporated into the adaptor body. The micropads clamp onto the fiber to hold it secure during testing. Up to 900uM buffer size can fit into the adaptor which significantly reduces the amount of fiber that needs to be exposed. The amount of bare fiber needed after cleaving will vary per connector style. Typically only .55" of fiber is needed after cleaving. Certain connectors require as little as .14" exposed after cleaving. The smaller amount of bare fiber require to be expose reduces fiber waste and the possibility of breaking or damaging the fiber during the installation process.

Easy Clean-out


The Bare Fiber Adapter is totally reusable! If a fiber happens to break off inside the adaptor, simply loosen the thumb screw and remove the connector module from the adapter body. The removable connector module feature allows the user to clean out the broken debris directly from the ferrule. Clean out wire is supplied to assist in pushing the broken debris out.

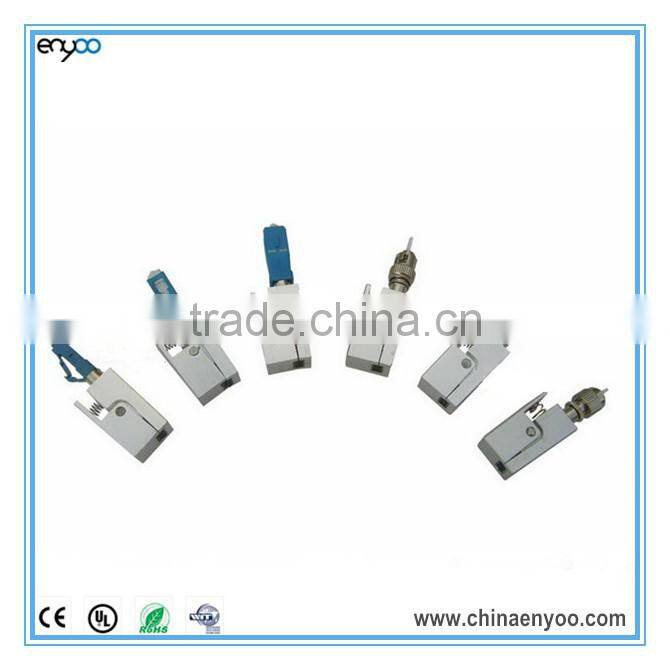

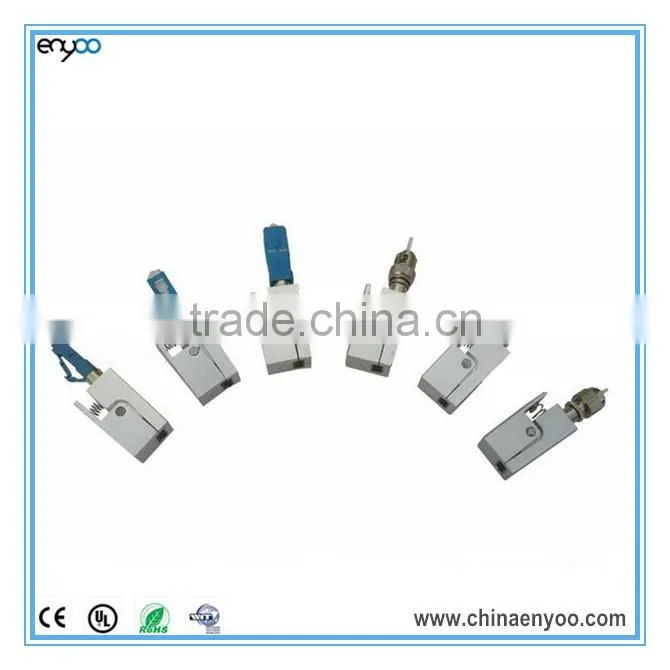

Interchangeable


The connector modules are not only removable, but also interchangeable. When an application requires a different type of connector, remove the current connector module from the adapter body and replace it with the desired type. The Bare Fiber Adapter body is designed to accept all of Fiber Plus International's connector modules. The interchangeable feature enables Fiber Plus International to offer Bare Fiber Adapter Kits. If you use more than one connector style or both singlemode and multimode connectors, you may want to consider a Bare Fiber Adapter Kit. The kits offer the same performance with the flexibility of switching out different connector modules when required.
