Description:

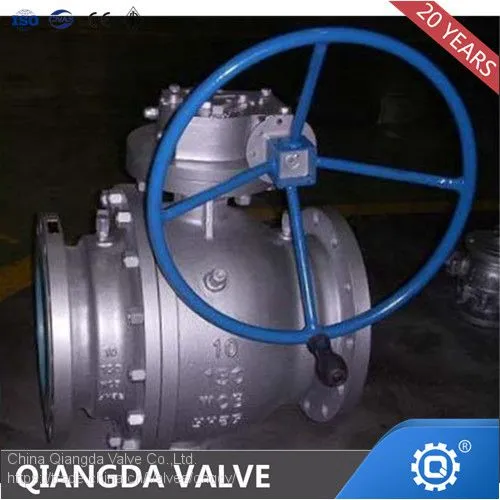

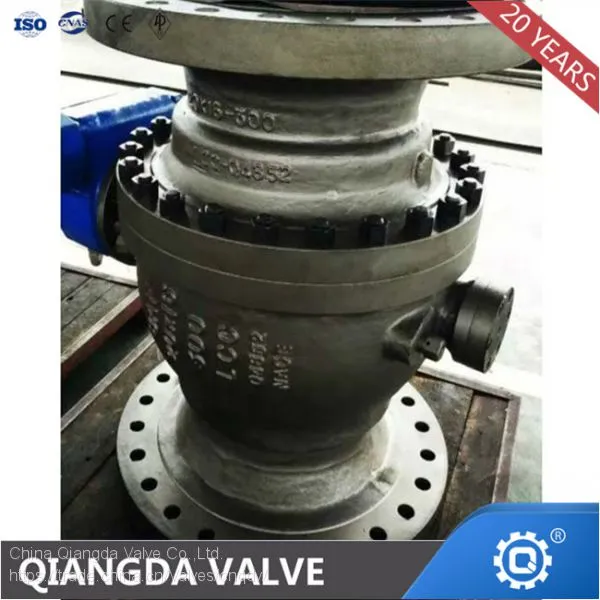

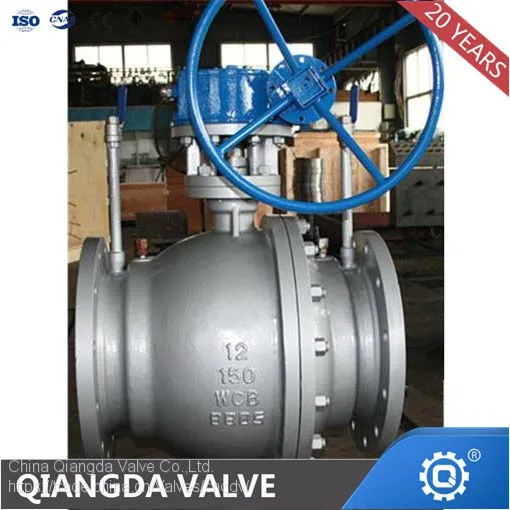

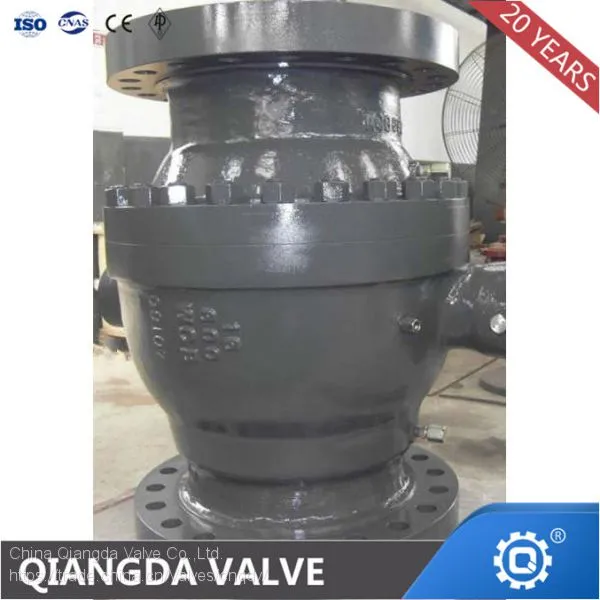

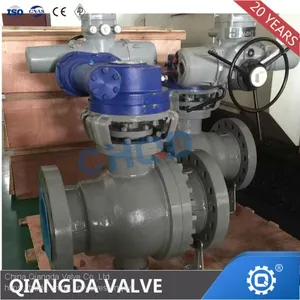

Product name:Cast Steel Trunnion Mounted Ball Valve
Size: 2"-40"
Pressure: 150LB,300LB,600LB,900LB,1500LB
Material: WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M,Alloy 20,B148 ect
Connection: Flanges,RTJ Flange,Butt Weld,Hub end,Groove
Operate: Hand lever, Gearbox, Penumatic Actuator, Electric Actuator
Feature:
1,Two pieces or Three piece design
2,Trunnion mounted ball, Anti-blow out stem
3,Full Port Or Reduced Bore
4,Fire safe design and Anti-Static device.
5,Self relieving seat,
6,Double block and bleed function
7,Emergency sealant injection system
8,With vent valve and drain valve
9,ISO 5211 mounting pad optional
10,NACE MR-01-75
Standard:
Design and Manufacture:API6D, ASME B16.34
Pressure-temperature rating: ASME B16.34
Face to face(end to end):ANSIB16.10,API6D
End Connection: 2"-24" ASME B16.5; 26" -42" ASME B16.47; B.W end ASME B16.25
Test and inspection:API598,API6D,
Fire safe design:API607,API6FA
