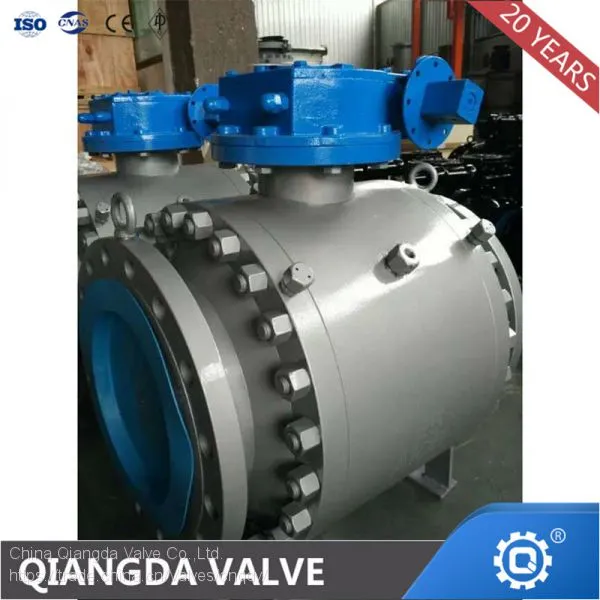

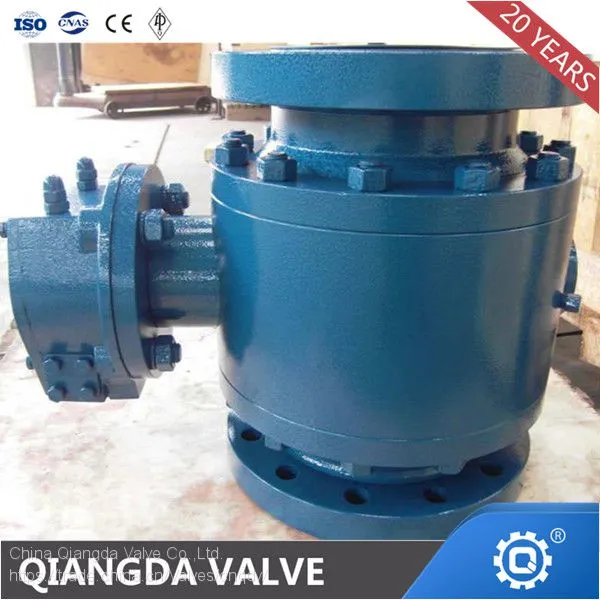

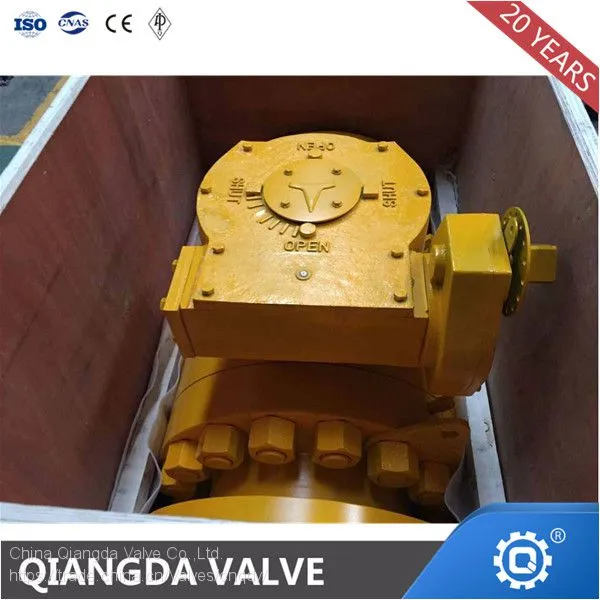

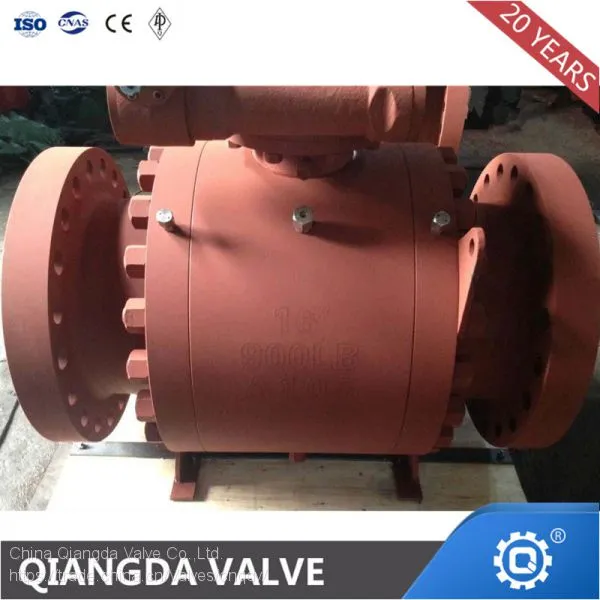

Product name:Forged Steel Trunnion Mounted Ball Valve
Size: 2"-40"
Pressure: 150LB,300LB,600LB,900LB,1500LB
Material: A105,F11,LF2,F304,F316,F51 ect
Connection: Flanges,RTJ Flange,Butt Weld,Hub end,Groove
Operate: Hand lever, Gearbox, Penumatic Actuator, Electric Actuator
Feature:
1,Three piece design
2,Trunnion mounted ball, Anti-blow out stem
3,Full Port Or Reduced Bore
4,Fire safe design and Anti-Static device.
5,Self relieving seat,
6,Double block and bleed function
7,Emergency sealant injection system
8,With vent valve and drain valve
9,ISO 5211 mounting pad optional
10,NACE MR-01-75
11,Forged steel body assures uniform the grain structure and toughness free from inevitable casting defects, such as porosity, abscess , sand hole, loosen, slag inclusion, crackle etc
Standard:
Design and Manufacture:API6D, ASME B16.34,API608,BS5351
Pressure-temperature rating: ASME B16.34
Face to face(end to end):ANSIB16.10,API6D
End Connection: 2"-24" ASME B16.5; 26" -42" ASME B16.47; B.W end ASME B16.25
Test and inspection:API598,API6D,
Fire safe design:API607,API6FA
Design: | API608, API6D,ASME B16.34 |
Face to face: | ASME16.10 , API6D,EN558-1 |
Flange end dimension: | ASME B16.5, ASME B16.47(API 605,MSS SP-44) |
Butt-weld end dimension: | ASME B16.25(BW) |
Test and inspection: | API598/ISO 5208 |
Working temperature: | -196℃～+500℃ |
Nominal diameter: | 1/2” ～56” |
Nominal pressure: | CLASS150～CLASS2500,PN10～PN420 |
End connection type: | FLANGE, WAFER,LUG,BUTT-WELDING,NPT/BSP THREAD |
Nace | NACE0175 |
Actuator | LEVER,WORM GEAR,PNEUMATIC,ELECTRICAL, ELECTRO-HYDRAULIC, PNEUMATIC OPERATOR WITH MANUAL, HYDRULIC OPRATOR WITH MANUAL, EXPLOSION-PROOF ELECTRO OPERATOR |
Body mateiral: | A216-WCB, A105;A352-LCB,A352-LCC,A350-LF2;A351-CF8,A351-CF8M;A182-F304,A182-F316 |
Ball material: | A105+ENP;A350-LF2+ENP;A182-F304,A182-F316 |
Bolt/Nut: | A193-B7,A194-2H;A320-L7,A194-4;A193-B8,A194-8 |
Stem: | A276-410,A276-420;A350-LF2,A276-304;A276-304,A276-316 |
Seat: | Standard: PTFE OR NYLON, Special:PEEK OR DEVLON |
O-Ring | NBR OR VITON |
Gasket: | Graphite+Stainless steel |
