Home > Instruments & Meters > Test Instrument > Test Machine > Electric Strain Direct Shear Testing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
yufeng
Model Number:
ST1005
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
yufeng
Model Number
ST1005
Power
Electronic
Usage
Other, Determination of shear strength
Specifications
Electric Strain Direct Shear testing machine1.AC220VAC / 60HZ
2.Area of the soil sample:30cm
3.Lever ratio: 1:12

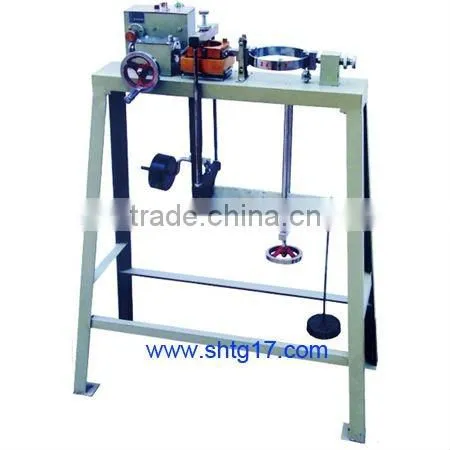

Electric Strain Direct Shear testing machine
Application:
This apparatus is used to test resisting shear strength of soil specimen.
Specification:
1. Area of the soil sample:30cm²
2. Lever ratio: 1:12
3. Vertical loading: 50,100,200,300,400(Kpa)
4. Max. horizontal loading: 1.2KN
5. Shear rate: 0.02, 0.8, 2.4mm/min
6. Handwheel speed: 0.1, 4, 12mm/min
7. AC220VAC / 60HZ
Packing information:
Packing size for EDJ-2: 940x600x1170mm , Packing weight weight: 110kg
EDJ-1:880x600x1210mm, Packing weight: 105kg
Pls Note:we will give you a discount .
Shear Box:dimension:¢61.8mm×20mm
