80KN Triaxial Testing Machine
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai port
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | yufeng | |
| Model Number | ST1032B | Power | Other, Manual | |
| Usage | Other, Determination of shear strength |
Product Description
Specifications
Triaxial Testing machine1.Axial load:80KN
2.Max. Stroke: 50mm
3.Max. confining pressure: 2.5Mpa

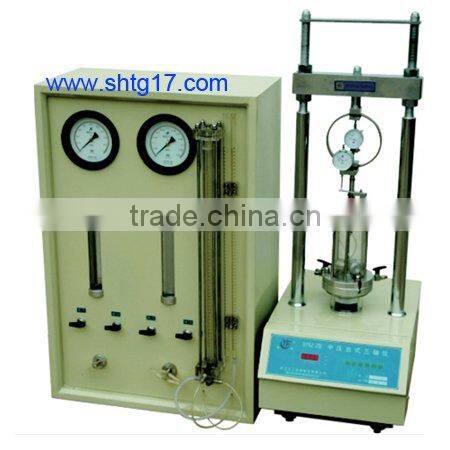

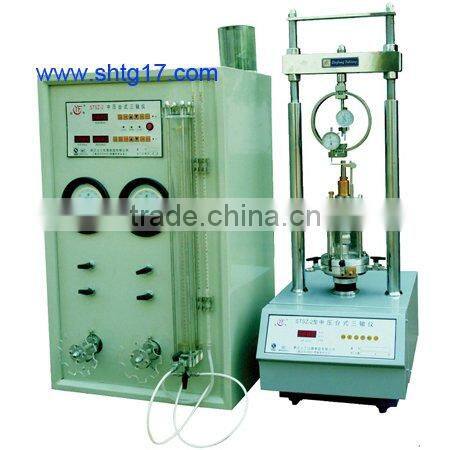

80KN Triaxial Testing machine
Application:
To determine the strength and deformation characteristics of the soil specimen. Perform unconsolidated-Unstrained shear test (UU), consolidated-unstrained shear test(CU) and consolidated-drained shear test(CD).
Technical parameters:
1. Specimen size: Φ61.8×125; Φ101×220mm
2. Axial load: 80KN
3. Lift speed range(mm/min): 0.003, 0.006, 0.008, 0.012, 0.020, 0.030, 0.040, 0.050,
0.060, 0.070, 0.080, 0.090, 0.100, 0.200, 0.300, 0.400, 0.500, 0.600,
0.700, 0.800, 0.900, 1.000
4. Max. Stroke: 50mm
5. Max. confining pressure: 2.5Mpa
6. Max. back pressure: 1Mpa
7. Pore water pressure: 0-2Mpa
8. Volume change range: 0-50ml
9. Min. division: 0.1ml
10. Axial displacement range: 0-30mm
11.Dimensions:880×560×1480mm(main frame),770×720×1250mm(controller)
