Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
yufeng
Model Number:
STSZ-1Q
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
yufeng
Model Number
STSZ-1Q
Power
Other
Usage
Other, Determination of shear strength
Specifications
Triaxial Testing machine1.Axial load:10KN
2.Specimen size: 39.1*80mm
3.Max. Stroke: 35mm
4.Max. confining pressure: 1Mpa

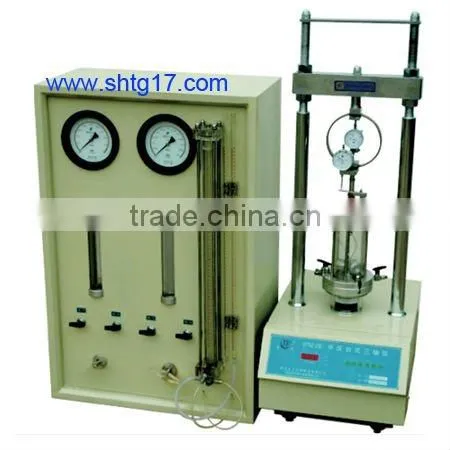

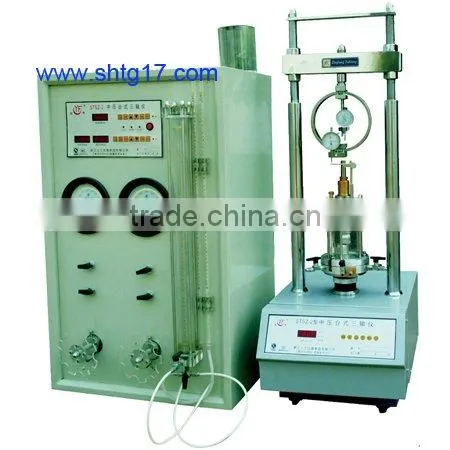

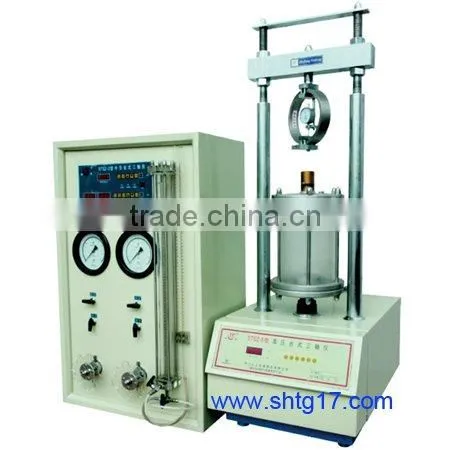

10KN Triaxial Testing machine
Application:
To determine the strength and deformation characteristics of the soil specimen. Perform unconsolidated-Unstrained shear test (UU), consolidated-unstrained shear test(CU) and consolidated-drained shear test(CD).
Technical parameters:
1. Specimen size: Φ39.1×80mm
2. Axial load: 10KN
3. Lift speed range(mm/min): 0.003, 0.006, 0.008, 0.012, 0.020, 0.030, 0.040, 0.050, 0.060, 0.070, 0.080, 0.090, 0.100, 0.200, 0.300, 0.400, 0.500, 0.600, 0.700, 0.800, 0.900, 1.000
4. Max. Stroke: 35mm
5. Max. confining pressure: 1Mpa
6. Max. back pressure: 0.6Mpa
7. Pore water pressure: 0-2Mpa
8. Volume change range: 0-50ml
9. Min. division: 0.1ml
10. Axial displacement range: 0-30mm
11.Dimensions:810×570×1300mm(main frame),780×740×1220mm(controller)
Pls Note: we will give you a certain discount.
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Trading Company
Year Established
2003
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
