WZB-05ET ZigBee Wireless to Ethernet Converter

Dow Technology Electronics Trading Co L.l.c

WZB-05ET ZigBee Wireless to Ethernet Converter thumbnail-2

WZB-05ET ZigBee Wireless to Ethernet Converter photo-1

WZB-05ET ZigBee Wireless to Ethernet Converter photo-2

US$ 90 - 110 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

NHR

Model Number:

WZB-05ET

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Taipei Taiwan

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name NHR

Model Number WZB-05ET

WZB-05ET ZigBee Wireless to Ethernet Converter

ZigBee HA profile compliant (star, tree, & mesh), RS profile ready
Range 500m (line of sight)
6-24V DC powered
Converts between Ethernet and ZigBee data packets

Monitoring software : SentrolCloud.

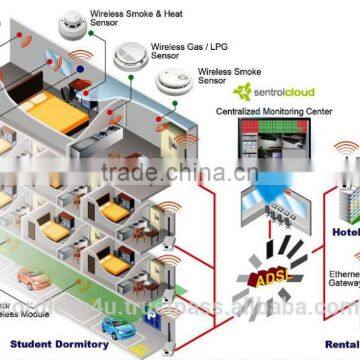

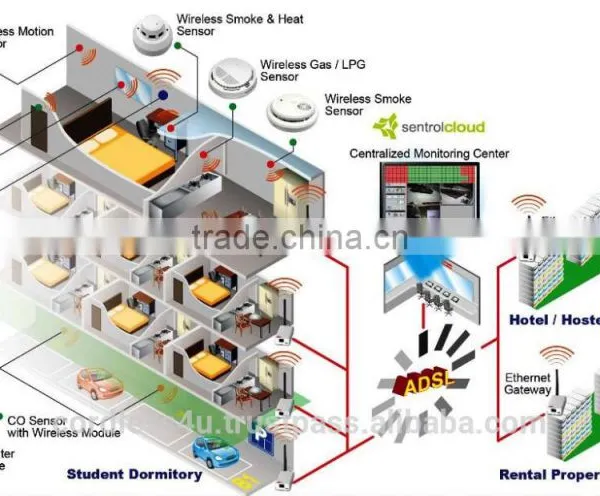

The WZB-05ET Ethernet Data Receiver acts as a central data receiver in a network between a number of different ZigBee devices and products by connecting to a host computer and host (internet) network via a standard Ethernet cable. The device is suitable for home/building automation (ZigBee HA Profile), Industrial control and monitoring (ZigBee Modbus Profile), lower power wireless sensor networks and consumer Electronic Applications.

WZB-05ET have auto-repair, auto re-connection and Zero Data Loss technology.

Wireless Specifications
Transmitting Protocol	UART: Modbus RTU / ZigBee: HA profile
Wireless Protocol	Compliant IEEE 802.15.4, ZigBee2007/PRO
Chip Set	TI ZigBee SoC CC2530F256, 256K Flash
Operating Frequency	2.4GHz ISM Band
Channel	16CH
Transmission Range	500m (line of sight)
Transmission Data Rate	250kbps Max.
RF Output Power	18dBm
Receiver Sensitivity	-92dBm
Working Voltage	DC 5V USB adapter
Operating Environment	-10 ~ +80°C, 90% RH.
Power Consumption	0.8W
ESD Protection	±4KV contact
Antenna	2dBi Omni SMA Antenna
Network Topology	Star/ Tree/ Mesh
Auto Reconnection	Automatically repair and reconnect
Transmission protocol	Modbus RTU or DIO
Baud rate	9600, 19200, 38400, 57600, 11520 bps selectable
Dimensions	62(L) x 42(W) x 15(H) mm
Weight	52g
OS	Windows 95/ 98/ NT/ 2000/ XP/ Vista/ Win7
Certifications	CE/ FCC

Ethernet specifications
Network Protocol	ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, Telnet
Data rate	10/100Mbits/sec
	--Auto MDI/MDIX detection
	--traffic and link indicator
	--Auto polarize verification
Serials port	PORT0 & PORT1 two sets CMOS/TTL, flow control
Serials port	PORT 1 rate of up to 1.5Mbits/sec
Parameters Setting	Via Web server
Network configuration	Static IP or DHCP
