WZB-01USBC ZigBee USB Coordinator/Receiver
US$ 70 - 85
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
NHR
Model Number:
WZB-01USBC
Payment & Shipping
Payment Methods:
Port of Shipment:
Taipei Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Temperature and Humidity Wireless Sensors Automation Developer Starter Pack for GreenhouseUS$ 590 - 620MOQ: 1 Piece -
Wireless Temperature and Humidity Sensor STH-M02ZB ZigBeeUS$ 80 - 95MOQ: 1 Piece
-
Smart Agriculture SolutionUS$ 155 - 620MOQ: 1 Set
-
Residential Combustible Gas Detector SG-02-GS ZigbeeUS$ 51 - 70MOQ: 2 Pieces
-
Carbon Monoxide (CO) Detector SG-02-CO ZigBeeUS$ 51 - 70MOQ: 2 Pieces
Place of Origin
Taiwan, China
Brand Name
NHR
Model Number
WZB-01USBC
WZB-01USBC ZigBee USB Coordinator/Receiver

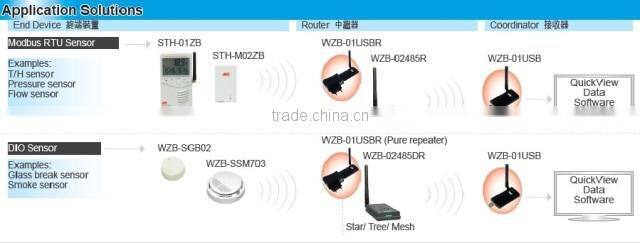

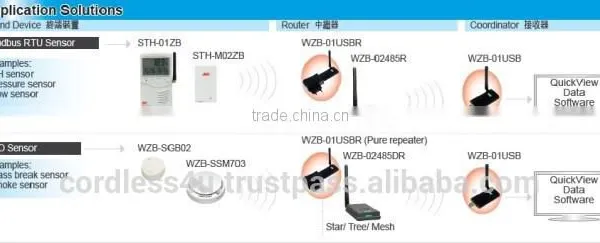

WZB-01USBC is a wireless coordinator with router capabilities which quickly and easily connects to the host computer using a USB connection. This device provides fully compliant wireless ZigBee communications with routers and end-devices. The dongle is suitable for home/building automation (HA Profile), Industrial control and monitoring (Modbus), lower power wireless sensor networks and consumer electronic applications. Owing to the flexible external antenna, the device has non-directional broadcast capabilities which allows the user to easily install and conveniently use. It Supports Zigbee wireless topology, Star, Tree and MESH that can satisfy various application cases.
Features:
- Connection distance is around 500 meters in free space
- Self-restart on error or disconnect
- Network Topology support: Star, Tree, Mesh
Specification:
Transmitting Protocol |
UART: Modbus RTU / ZigBee: HA profile |
Network Protocol |
IEEE802.15.4/ZigBee 2007/PRO |
RF Power |
18dBm |
Receiver Sensitivity |
-92dBm |
Transmission Range |
500m/1640ft (line of sight) |
Transmission Rate |
Max: 250kbps |
Baud rate choice |
Configurable (Default 9600 8N1) |
Parameter |
Baud rate PAN, ID, RF Channel
Configurable
|
Network Topology |
Star/Tree/Mesh |
Auto Reconnection |
Yes (‘No Data-Loss’ technology) |
Working Temp |
-20C~70C/-4C~158C (Max 90% RH) |
Dimension |
75mmX34mmX10mm |
Weight |
25g/0.9oz
|
1 Year Warranty. Original Made in Taiwan.
