Top Quality Humidity and Temperature Meter Transmitters

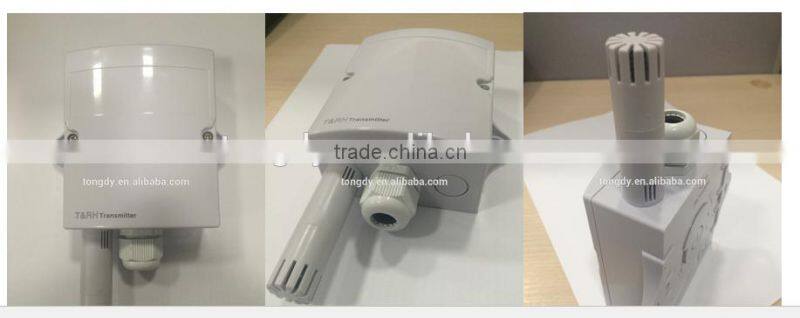

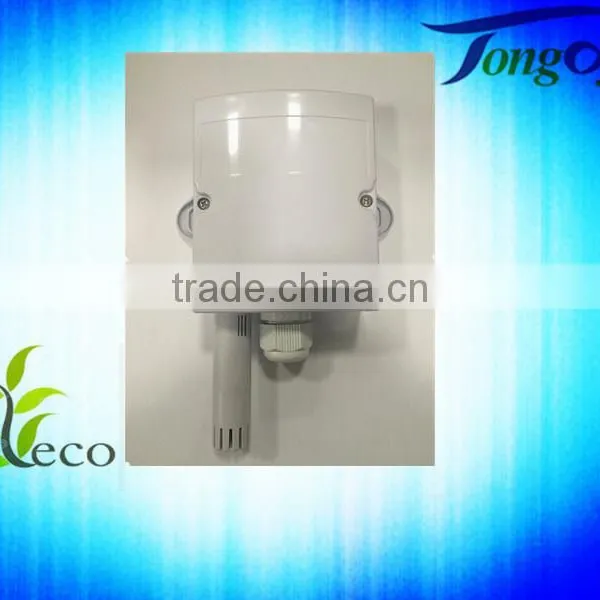

Top Quality Humidity and Temperature Meter Transmitters photo-1

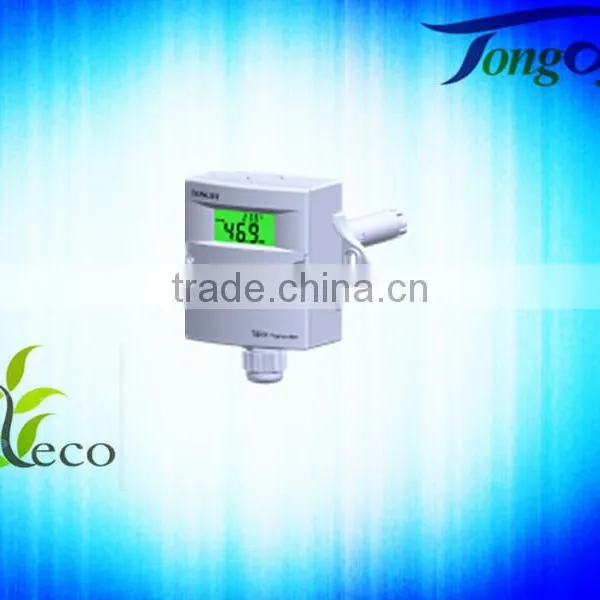

Top Quality Humidity and Temperature Meter Transmitters photo-2
US$ 50 - 500 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Tongdy
Model Number:
THP/TH9
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Beijing, China
Brand Name Tongdy
Model Number THP/TH9
Usage Indoor
Theory Temperature Transmitter
Accuracy ±0.4℃ (0℃~50℃)/±3%RH (20%-80%RH)
Temperature Range 0~50C/0~60C/-20~60C

Top Quality Humidity and Temperature Meter transmitter

Top Quality Humidity and Temperature Meter transmitters

Designed for detection and output relative humidity and temperature with high accuracy

External sensors design let the measurements more accurate, no influence from components heating

Combined both humidity and temperature sensors seamlessly with the digital auto compensation

Outside sensing probe with more accuracy and convenient usage

Special white backlit LCD can be selected with displaying both actual temperature and humidity

Smart structure for easy mounting and disassembly

Attractive appearance for different application places

Temperature and humidity fully calibration

Very easy mounting and maintenance, two lengths selectable for the sensor probe

Provide two linear analog outputs for humidity and temperature measurements

Modbus RS485 communication

CE-Approval





 Typical Applications

 High end HVAC, clean rooms, Green houses, stocks and Other places where need to measure temperature and humidity

Data with Specifications



Temperature

Relative Humidity

Accuracy

±0.4 @20

±3%RH (20%-80%RH)

Measuring range

0℃~50℃(32~122) (default)

0 -100%RH

Display resolution

0.1

0.1%RH

Stability

±0.1

±1%RH per year

storage environment

10-50, 20%RH~60%RH

Output

2X0~10VDC(default) or 2X 4~20mA  (selectable by jumpers)

2X 0~5VDC  (selected at place orders)

RS485 interface(optional)

Modbus RS485 interface

Power supply

24 VDC/24V AC ±20%

Power cost

≤1.6W

Permissible load

Max. 500Ω  (4~20mA)

Connection

Screw terminals/ wire diameter:1.5mm2

Housing/ Protection class

PC/ABS fireproof material

IP40 class / IP54 for requested models

Dimension

THP Wall-mounting series: 85(W)X100(H)X50(D)mm+65mm(external probe)XÆ19.0mm

TH9 Duct-mounting series: 85(W)X100(H)X50(D)mm +135mm(duct probe) XÆ19.0mm

Net weight

THP Wall-mounting series: 280g

TH9 Duct-mounting series: 290g



Why choose Tongdy ?


♦ Specilizng in manufacturing products of HVAC since 1999, IAQ product designer.

♦ OEM service available

♦ Import sensor module, best quality, competitive price

♦ Harsh process of production and strict testing and calibration system.

♦ Material could be traced.

♦ Delivery in time.


♦ Reply in 24 hours
