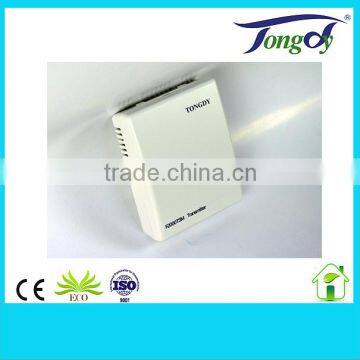

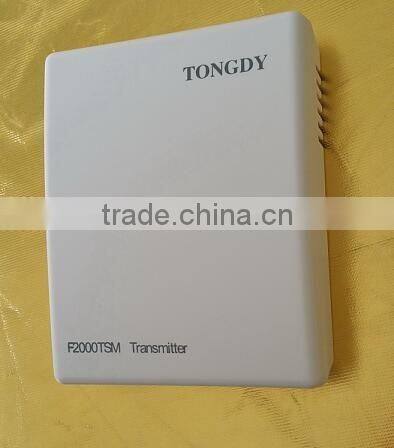

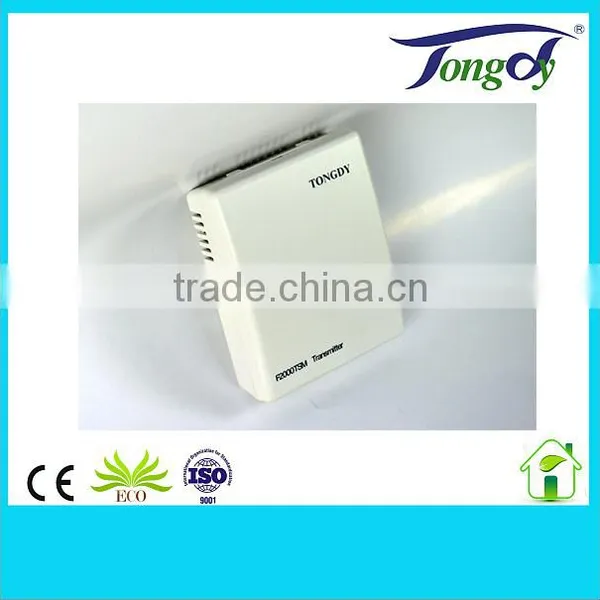

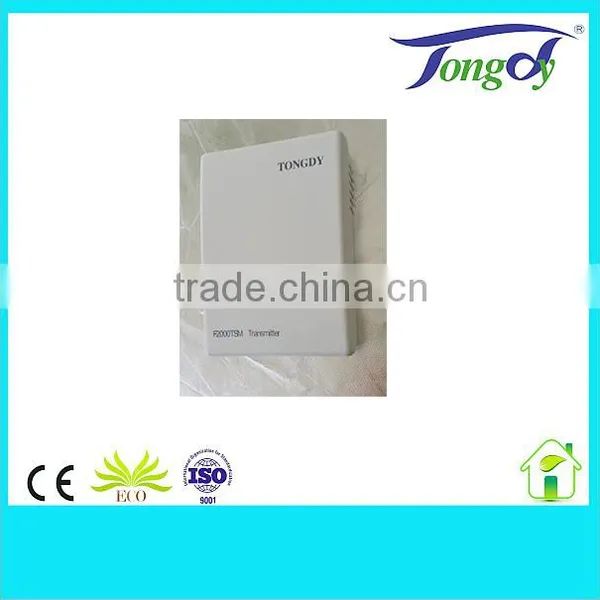

Wholesale Tongdy Temperature and Humidity Meter temperature sensor
Temperature Humidity Meter Features:
1.Temperature and humidity transmitter designed for transmit relative humidity measurement and temperature measurement.
2.Wall mounting and duct type selectable
3.Provide 1x0~10VDC/0~5VDC/4~20mA humidity output, as well as a field range able 0~10VDC/0~5VDC/4~20mA temperature output.
4.Two temperature ranges selectable in orders
5.Humidity output is automatically corrected over the full range of operating conditions
6.One point field of temperature and humidity measurement modification
7.RS485 communication is optional
Specifications
|
Temperature |
Humidity |
Sensing element: |
NTC |
Capacitive sensor |
Measuring range |
-20~60(default) 0~60 selectable |
0 -100%RH |
Accuracy |
±0.5 (25, 40%-60%RH) |
±3%RH (25, 40%-60%RH) |
Stability |
/ |
1%RH per year |
Storage environment |
-40-60 |
|
Connection |
Screw terminals, non-polar, |
|
Set measurement zone |
The zero and the end can be set via RS485 |
|
Housing |
PC/ABS fireproof material |
|
Output |
2X0,1~5V/0,2~10V selectable by users via a jumper or 2X 4~20mA optional |
|
Power supply |
24V DC or 24V AC ±20% |
|
Power cost |
≤2W |
|
Resistance permitted |
≤500Ω |
|

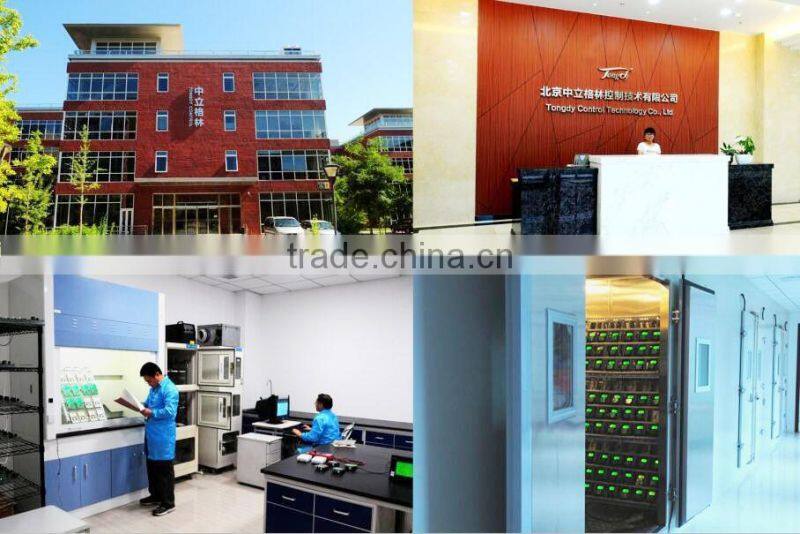

Why choose Tongdy ?
♦ Specilizng in manufacturing products of HVAC since 1999, IAQ product designer.
♦ OEM service available
♦ Import sensor module, best quality, competitive price
♦ Harsh process of production and strict testing and calibration system.
♦ Material could be traced.
♦ Delivery in time.
♦ Reply in 24 hours

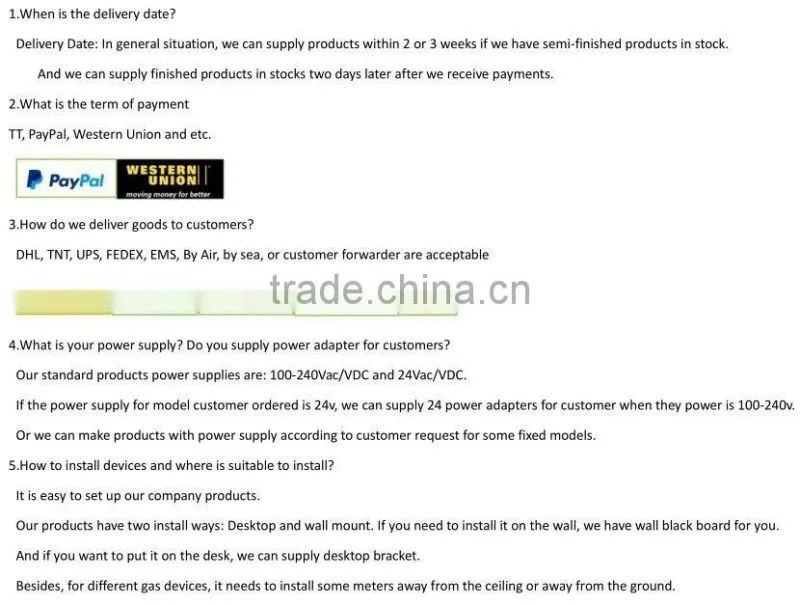

Other Questions:
Shipment
All the shipment by international delivery companies is same. For example below is descriprions shipped by DHL.
