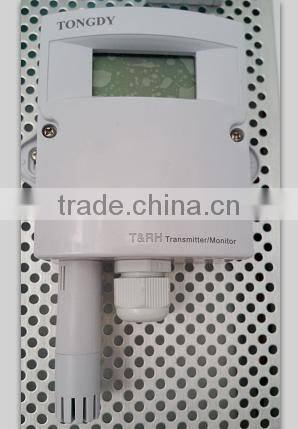

High Accuracy Humidity/Temperature transmitter & sensor
Datasheet of temp & %RH sensor & transmitter
|
Temperature |
Humidity |
|
Accuracy |
±0.4 -high accuracy version ±0.5-normal accuracy version |
±2% RH (20%-80%RH)- high accuracy version ±3%RH (30%-70%RH)-normal accuracy version |
|
Measuring range |
High version |
Normal version |
0 -100%RH |
|
-20~60 (default) 0~60 selectable -20~80 selectable |
0~60 |
||
Display resolution |
0.1-high version 0.5-normal type |
0.1%RH-high version 1% RH-normal version |
|
Stability |
±0.1 |
±1%RH per year |
|
Storage environment |
10-50, 10%RH~80%RH |
||
Connection |
Screw terminals/ wire diameter:1.5mm2 |
||
Housing |
PC/ABS fireproof material |
||
Protection class |
IP54 |
||
Output |
2X0~10V or 2X 4~20mA selectable by users via a jumper |
||
RS485 interface |
Modbus RS485 interface |
||
Power supply |
24V DC or 24V AC ±20% |
||
Power cost |
≤1.6W |
||
Permissible load |
Max. 500Ω (4~20mA) |
||
Dimension |
THP Series: 95(W)X100(H)X50(D)mm+68mm(extend outside)XÆ16.5mm TH9 Duct Series: 95(W)X100(H)X50(D)mm +195mm/146mm/110mm(L)XÆ16.5mm |
||
Net weight |
THP Series: 280g TH9 Duct Series: 270g |
||
Specifications of Humidity/Temperature transmitter & sensor
1.High accuracy humidity transmitter is designed for detection and output relative humidity and temperature with high accuracy
2.External sensors design let the measurements more accurate, no influence from components heating
3.Two accuracy version selectable, normal/better/high version
4.Combined both humidity and temperature sensors seamlessly with the digital auto compensation
5.Special white backlit LCD can be selected with displaying both actual temperature and humidity
6.Smart structure for easy mounting and disassembly
7.Attractive appearance for different application places
8.Temperature and humidity fully calibration
9.THP Series in Wall mounting and TH9 Series in duct mounting
10.Very easy mounting and maintenance, two lengths selectable for the probe into the air duct
11.Outside sensing probe with more accuracy and convenient usage
12.Provide two linear analog outputs for humidity and temperature measurements
13.Modbus RS485 communication
14.CE-Approval
