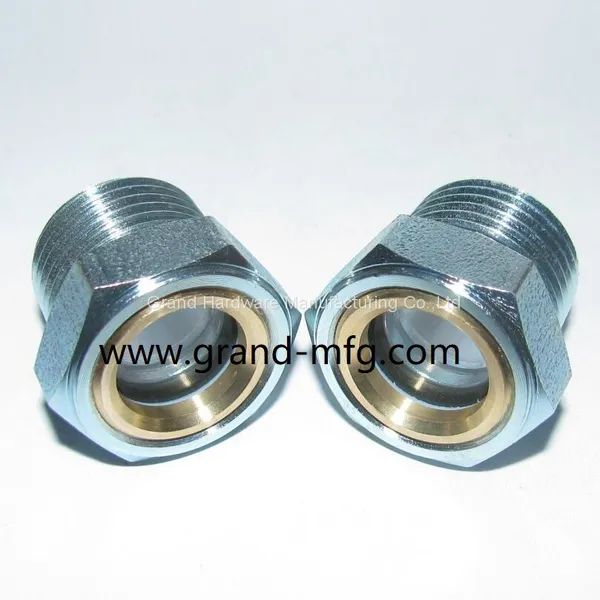

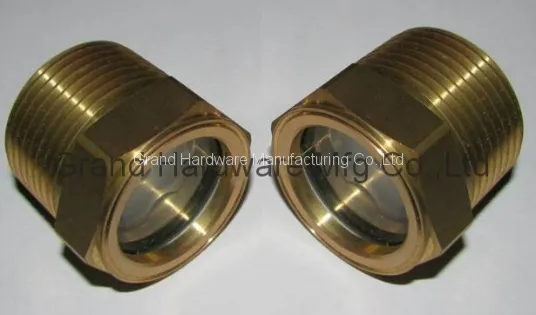

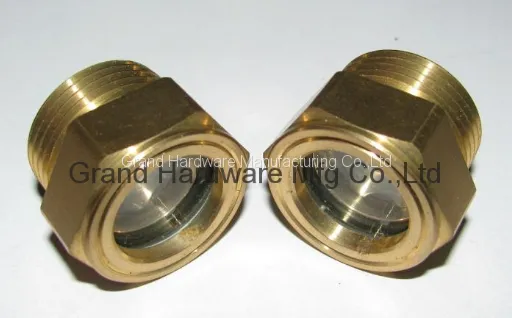

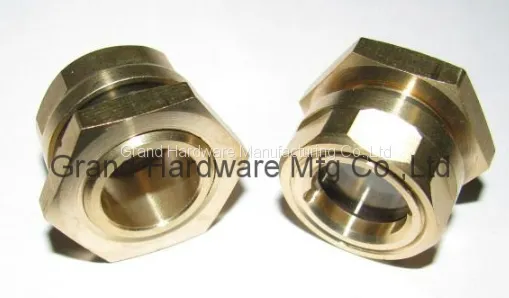

Help CenterMNPT Thread 3/8 3/4 Compressor Oil Sight Glass for Pump Brass Oil Levels Indicator
Related Products
-
Gasketed Compressor Oil Sight Glass With Borosilicate Glass and Stainless Steel ReflectorUS$ 0.68 - 10MOQ: 2000 Pieces -
NPT 1/2 Heat Exchanger Radiator Liquid Level Sight Glass Compressor Oil LevelsUS$ 2 - 3MOQ: 500 Pieces
-
Air Compressor Circular Brass Oil Sight Glass BSP Bulls Eye Oil LevelsUS$ 0.5 - 12.5MOQ: 1000 Pieces
-
Radiator Peep Sights Standard NPT Male Thread Coolant Sight Glass SupplierUS$ 0.8 - 3.2MOQ: 1000 Pieces
-
Domed Shaped Quality Peep Sites Cooling System Brass Sight Glass GaugeUS$ 1.52 - 2.89MOQ: 500 Pieces
Speed reducers gear boxes pumps Circular oil sight glass, oil sight gage,
site glass, oil level indicator, liquid sight glass, oil sight window, view ports,
male thread sight glass, visual level sight gauge, visual level sight glass,
visual level indicator, domed shaped oil sight glass, oil sight plugs

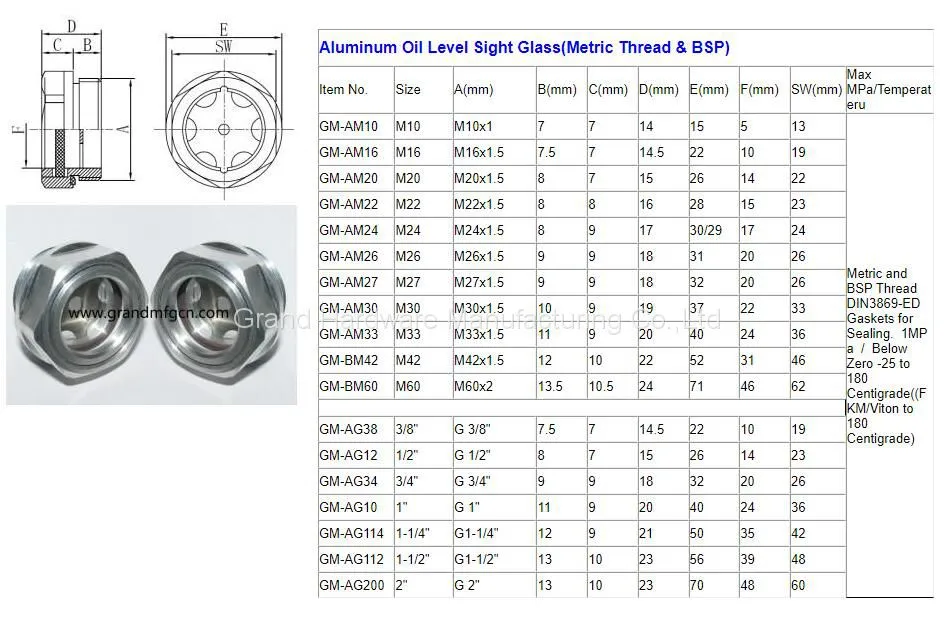

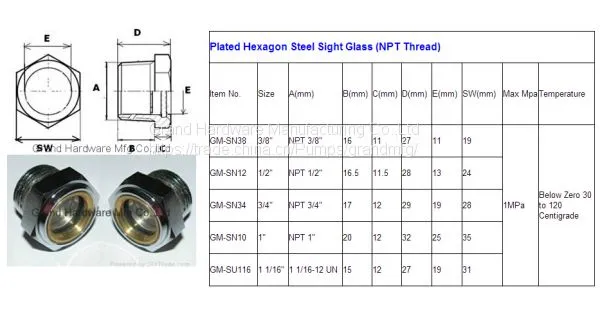

Body material: aluminum, brass, PC, PPMA and steel
Glass: Real glass 2 mm to 5 mm thickness.
O Ring: Viton O rings
Size: M10 to M42, 1/2 inch to 2 inch
Thread Type: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Operate Temperature: -20 cent degree to 120 cent degree
Operate Pressure: 5-10 Bar or 0.5MPa to 1 MPa.
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Payment: T/T
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission.
Different company have different requirements, OEM Service is welcome.

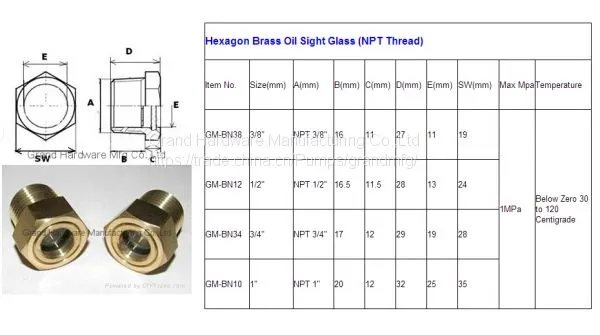

| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |

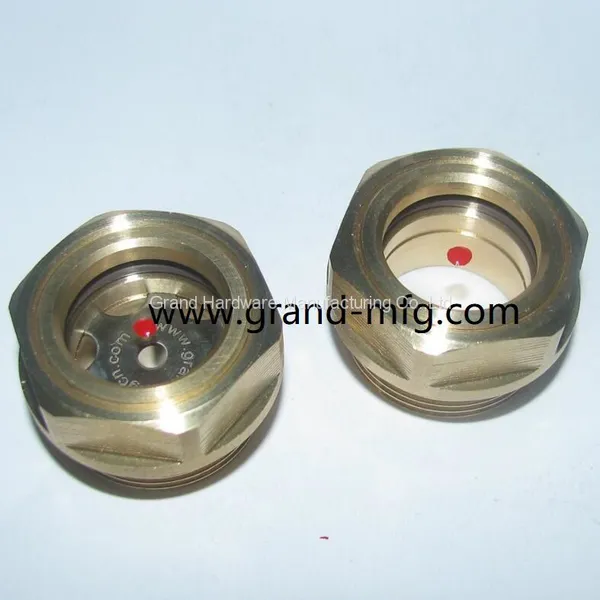

| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
Any demands just contact us or vist our GRAND-MFG website to get details.Thank you.
