3G GPRS/GPS Data logger working with remote monitoring system for temperature , humidity

Packing List
1) Main unit x1
2) 100~240VAC/12VDC 2A Power adaptor x1
3) Antenna x1
4) GPS Antenna x1 (*for GPS model optional) x1
5) User Manual & PC Software CD x1
Size: 235 x 225 x 65mm
Gross Weight: 0.75KG
Optional accessories:
1) -200~500 Temperature transducer with anticorrosion packing
2) Fuel/Water level transducer
3) Current/Voltage transducer
4) Humidity transducer

S262W

GSM/3G UMTS/GPS/SMS Data Logger

The King Pigeon S262W S263W Data Logger inbuilt industrial GSM and 3G WCDMA module, GPS optional. 4 channel Analog inputs (0-20mA,4-20mA,0-5V) support Ultra-Low/Low/High/Ultra-High limit alarm monitoring.

One digital relay output with NC/NO contacts controlled by alarm event,SMS command or Rejected Caller-ID(charge free).

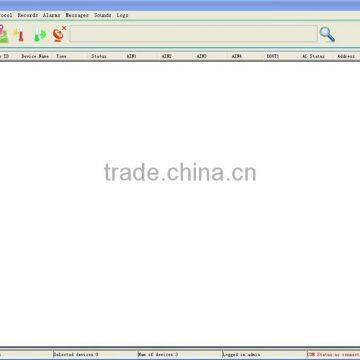

With Internal memory, S262W S263W save historical data half a year for inquiry & download by PC software via USB cable or KingCenter CMS-02 Remote Monitoring System via GPRS/UMTS/HSDPA TCP/IP, and tracking the real time GPS location with optional GPS module.

Daily report, schedule upload, event upload via GPRS/UMTS/HSDPA to remote monitoring center (TCP/IP) or by SMS to users mobile phone available.

S262W/S263W used for field monitoring in worldwide, we offer communication protocol for clients to build their own monitoring software/applications.

Features

1)      GSM and 3G WCDMA band,distribute worldwide applications available

2)      4 channel analog input: 0-20mA,4-20mA,0-5V

3)      SMS command or PC Software programming

4)      User-programmable alarm thresholds (Ultra-Low/Low/High/Ultra-High)

5)      6 numbers for receiving input alert and relay control

6)      Relay control programmable when alarm thresholds exceed

7)      Relay control by Caller-ID with free of charge, SMS, GPRS/UMTS(*work with KingCenter CMS-02)

8)      Recording data on internal memory:

     Min interval: per 5mins, can save data on unit more than 6 months

     Max interval: per 255mins,can save data on unit more than 10 years

9)      Historical data download to PC (MS Excel format) via USB

10)    Historical data query and download remotly by GPRS/UMTS(*work with KingCenter CMS-02)

11)    Supports 2 Server(Master and Slave) via GPRS/UMTS TCP/IP

12)    Daily report, schedule upload, event upload programmable

13)    AC/DC Power status monitoring, AC ON/OFF alert by SMS

14)    Rechargeable Backup Battery inside(Approx.8hours standby)

15)    IP67 Environmental protection enclosure(S263W)

GPS tracking module optional

Specifications

1)       Frequency:   2G: GSM900/1800MHz,  3G: WCDMA 900/2100MHz UMTS  (default)

                                   2G: GSM850/900/1800/1900MHz, 3G: 850/1900MHz UMTS   (optional)

              S262W S263W: the W is an identify letter of S262 S263, all of these models with the same CE certificates.

2)      Input Channel: 4 Analog, 0-20mA, 4-20mA, 0-5V

3)      Output:  1 Relay, NC/NO contacts, 7A/125V AC, 5A/250VAC,20A/14VDC

4)      Power Supply :  9~24VDC 2A

5)      Power Consumption:  12V input Max.50mA/Average

6)      SIM Card Supporting:  3V SIM Card

7)      GSM Antenna:  50 ohm SMA Antenna interface

8)      Backup Battery:  3.7V/1200mAH

9)      Relative Humidity:  90%(condensation free)

10)    Installation:  35mm DIN Rail (S262W)    IP67 Enclosure (S263W)

11)    Connecting Wires:  2.5mm

12)    Exterior Dimensions:  145*90*41mm (S262W)    180*140*60mm (S263W)

13)    Net Weight:  250g

PC Programming Software

S26x Series PC Programming Tool (Windows XP and Windows 7/8 OS) Functions:

a)      Authorized users setting

b)      GPRS/UMTS Parameters setting

c)      Server IP and Port setting

d)      Ultra-Low/Low/High/Ultra-High alarm thresholds

e)      Query current values

f)       Data recording interval

g)      Historical data inquiry and export(MS Excel format)

h)      SMS Daily report interval

i)       GPRS/UMTS data upload interval

j)       Relay action setting

k)      Relay test

l)       Date & Time adjustment

m)     GPRS/UMTS data transceiving debug

Packing List

1)      Main unit x1

2)      100~240VAC/12VDC 2A Power adaptor x1

3)      Antenna x1

4)      GPS Antenna x1 (*for GPS model optional) x1

5)      User Manual & PC Software CD x1

       Size: 235 x 225 x 65mm

       Gross Weight: 0.75KG

Optional accessories:

1)      -200~500 Temperature transducer with anticorrosion packing

2)      Fuel/Water level transducer

3)      Current/Voltage transducer

4)      Humidity transducer

Typical Project

A. Wide Range Temperature Alarm and Record

Storge temperature data(-200~200°C,-70~500°C) on local unit,get alert SMS and phone call when temperature exceed pre-setting value, download the historical data by USB (PC Programming Software) every few months or half a year.

Suitble for: Manufacture,Machine factory,Cold room, Madicine center.

Steps

1: Install S262W/S263W on site

2: Setting alert value and record interval time

3: Download historical data to PC by USB

What you need

S262W/S263W Standard Kit + SIM Card + TMI500

PC Progrramming Software

Mobile Phone number for receiving alert

Computer with WinXP or Win7/8 OS

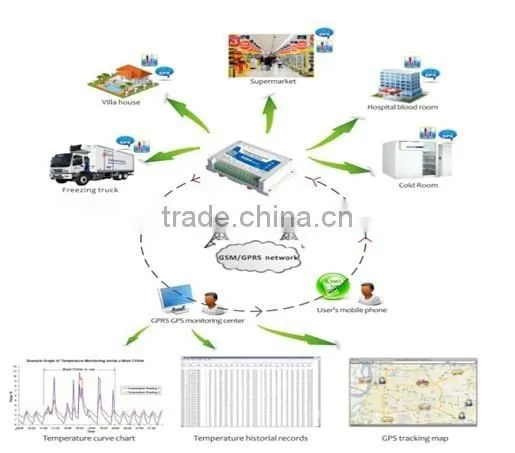

B. Real Time Unman Station Monitoring

Install the S262W/S263W and detectors on the station,record and report real time data to KingCenter CMS-02 via GPRS/UMTS TCP/IP remotely, as well as send alert SMS and making phone call when temperature/current/voltage/humidity/water level data exceed pre-setting value.

Suitble for: Server room,Madicine center, Weather station,Agriculture,Pump station,Oil supplier,Water supplier,Fuel pipe,BTS station,etc.

Steps:

1: Install S262W/S263W and detectors

2: Setting alert value and record interval time & GPRS/UMTS parameters

3. Remote monitoring real timedata

4: Download historical data

What you need:

S262W/S263W Standard Kit + SIM Card + WLI100 + Current/Voltage transducer + TMI300

PC Progrramming Software

Mobile Phone number for receiving alert

KingCenter CMS-02 System

DNS/Server IP address and Port

Computer with WinXP or Win7/8 OS

C. Real Time Fuel Level Monitoring and Record with GPS Tracking

Install the S262W/S263W on vehicle,storge fuel level and temperature data on local unit,get alert SMS and phone call when temperature or fuel level(in case of gasoline theft) exceed pre-setting value, get GPS tracking info on Google Map, Remote monitoring real time values and download historical data anytime anywhere by KingCenter CMS-02 System via GPRS/UMTS TCP/IP.

Suitble for: Refrigerated transport,Cold truck,Seafood transport,Logistics Management,Construction vehicle,etc.

Steps:

1: Install S262W/S263W and detectors on vehicles

2: Setting alert value and record interval time & GPRS/UMTS parameters

3. Remote monitoring real time data and GPS location

4: Download historical data remotely

What you need:

S262W/S263W+GPS Standard Kit + SIM Card + TMI500 + WLI100

PC Progrramming Software

Mobile Phone number for receiving alert

KingCenter CMS-02 System

DNS or Server IP address and Port

Computer with WinXP or Win7/8 OS
