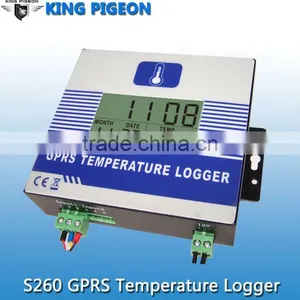

S261

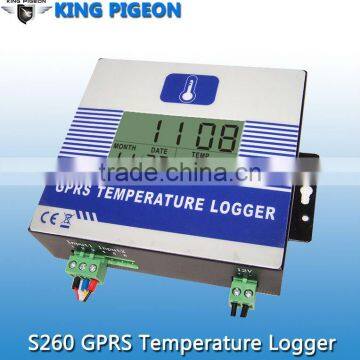

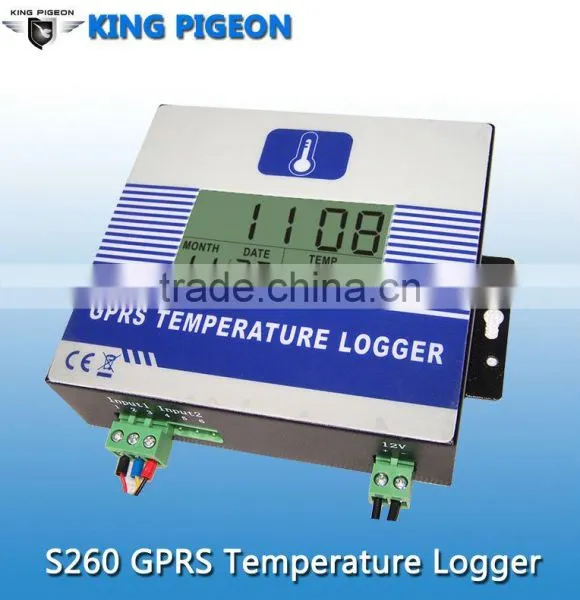

GPRS/GPS/SMS Temperature Logger
The King Pigeon S261 Temperature Loggerinbuilt industrial Quad-band GPRS Engine,and GPS module optional. 4 Channel temperature inputs support Ultra-Low/Low/High/Ultra-High limit alarm monitoring.
One digital relay output with NC/NO contacts controlled by alarm event, SMS command or Rejected ller-ID(charge free).
With Internal memory, S260 S261 save historical data half a year for inquiry & download by PC software via USB cable or KingCenter CMS-02 Remote Monitoring System via GPRS TCP/IP, and tracking the real time GPS location with optional GPS module.
Daily report, schedule upload, event upload via GPRS to remote monitoring center (TCP/IP) or by SMS to users mobile phone available.
S260 S261 used for field monitoring in worldwide, we offer GPRS protocol for clients to build their own monitoring software/applications.
Features
- Ø GSM Quad-Band,distribute worldwide applications available
- Ø –55°C to +125°C (–67°F to +257°F) measurement range
- Ø SMS command or PC Software programming
- Ø User-programmable alarm thresholds (Ultra-Low/Low/High/Ultra-High)
- Ø 6 numbers for receiving temperature alert and relay control
- Ø Relay control programmable when alarm thresholds exceed
- Ø Relay control by Caller-ID with free of charge, SMS, GPRS
- Ø (*work with KingCenter CMS-02)
- Ø Record temperature data on internal memory:
Min interval: per 5mins, can save data on unit more than 6 months
Max interval: per 255mins,can save data on unit more than 10 years
- Ø Historical data download to PC (MS Excel format) via USB
- Ø Historical data query and download remotly by GPRS
- Ø (*work with KingCenter CMS-02)
- Ø Supports 2 Server(Master and Slave) via GPRS
- Ø Daily report, schedule upload, event upload programmable
- Ø AC/DC Power status monitoring, AC ON/OFF alert by SMS
- Ø Rechargeable Backup Battery inside(Approx.8hours standby)
- Ø IP67 Environmental protection enclosure(S261)
- Ø GPS tracking module optional
Specifications
1) Frequency: GSM850/900/1800/1900MHz, 3G: 850/1900MHz UMTS (optional)
S260W S261W: the W is an identify letter of S260 S261, all of these models with the same CE certificates.
1) Input Channel: 4*DS18B20 temperature input
2) Output: 1 Relay, NC/NO contacts, 7A/125V AC, 5A/250VAC,20A/14VDC
3) Temperature range: -55~+125°C°(–67°F to +257°F)
4) Accuracy: 0.5~1°C from –10°C to +85°C
5) Power Supply : 9~24VDC 2A
6) Power Consumption: 12V input Max.50mA/Average
7) SIM Card Supporting: 3V SIM Card
8) GSM Antenna: 50 ohm SMA Antenna interface
9) Backup Battery: 3.7V/1200mAH
10) Relative Humidity: 90%(condensation free)
11) Installation: 35mm DIN Rail (S260/S260W) IP67 Enclosure (S261/S261W)
12) Connecting Wires: 2.5mm
13) Exterior Dimensions: 145*90*41mm (S260W) 180*140*60mm (S261W)
14) Net Weight: 250g
PC Programming Software
S26x Series PC Programming Tool (Windows XP and Windows 7/8 OS) Functions:
a) Authorized users setting
b) GPRS/UMTS Parameters setting
c) Server IP and Port setting
d) Ultra-Low/Low/High/Ultra-High alarm thresholds
e) Query current values
f) Data recording interval
g) Historical data inquiry and export(MS Excel format)
h) SMS Daily report interval
i) GPRS/UMTS data upload interval
j) Relay action setting
k) Relay test
l) Date & Time adjustment
m) GPRS/UMTS data transceiving debug
Packing List
1) Main unit x1
2) 100~240VAC/12VDC 2A Power adaptor x1
3) DS18B20 temperature troide x2
4) Antenna x1
5) GPS Antenna x1 (*for GPS model optional) x1
6) User Manual & PC Software CD x1
Packing Size: 235 x 225 x 65mm
Gross Weight: 0.75KG
Optional:
GPS Module

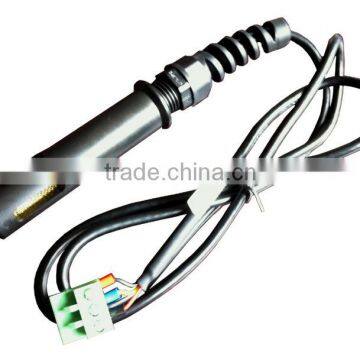

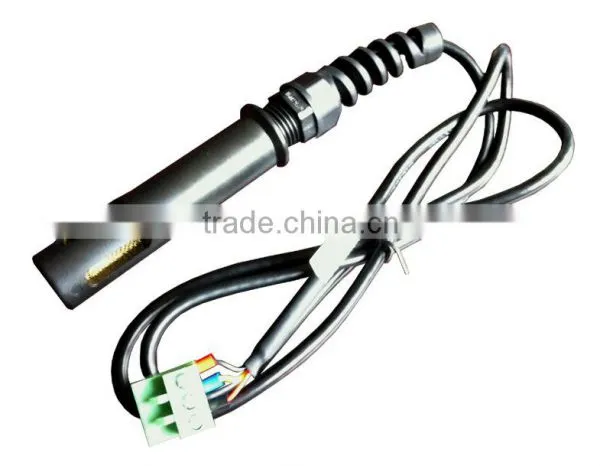

DS18B20 Temperature probe with 1/5/10meters wire
DS18B20 Temperature probe with anticorrosion packing
GSM Programmable wireless remote temperature monitoring alarm controlling RTU GPRS/3G Communication temperature data logger

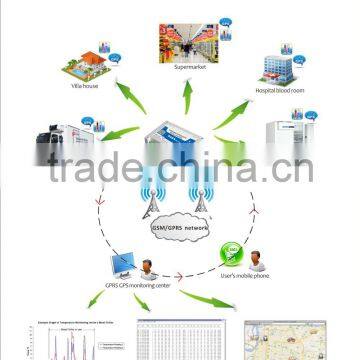

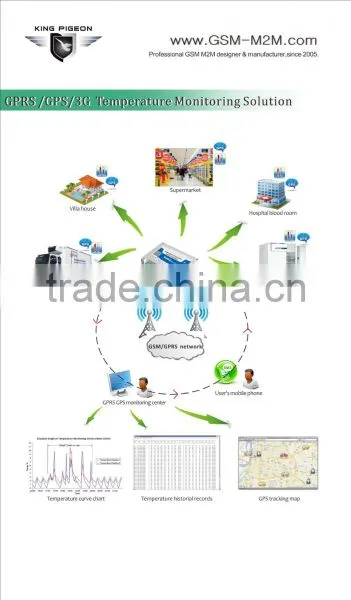

Typical Project
Typical Project
A. Temperature Alarm and Record
Storage temperature data on local unit,get alert SMS and phone call when temperature exceed pre-setting value, download the historical data by to PC Programming Software by USB every few months or half a year.
Suitble for: Server room,Warehouse,Cold room, Madicine center, Drug store,Seafood stroge,Villa,Holiday house, Aquarium, Supermarket, Hospital, Hotel, Billboard,Ads Signs LED,etc.
What you need:
S260W Standard Kit + SIM Card
PC Progrramming Software
Mobile Phone number for receiving alert
Computer with WinXP or Win7/8 OS
Steps:
1: Install S260W on site
2: Setting alert value and record interval time
3: Download historical data
B. Real Time Temperature Monitoring and Record

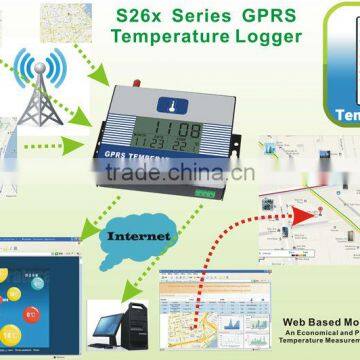

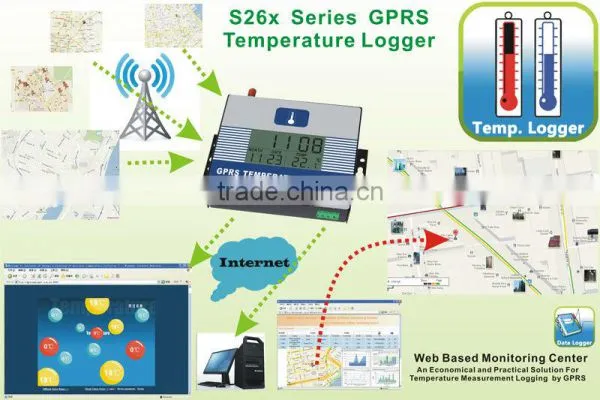

Storge temperature data on local unit,get alert SMS and phone call when temperature exceed pre-setting value, remote monitoring real time temperature and download historical data anytime anywhere by KingCenter CMS-02 via GPRS or UMTS/HSDPA TCP/IP.
Suitble for: Server room,Warehouse,Cold room, Madicine center,Drug store,Seafood stroge,Chain store,Shopping mall,Hospital,Water supplier,Fuel pipe,BTS station,etc.
What you need:
S260W Standard Kit + SIM Card
PC Progrramming Software
Mobile Phone number for receiving alert
KingCenter CMS-02 System
DNS or Server IP address and Port
Computer with WinXP or Win7/8 OS
Steps:
1: Install S260W on site
2: Setting alert value and record interval time & GPRS
3. Remote monitoring real time temperature value and Power
4: Download historical data
C. Real Time Temperature Monitoring and Record with GPS Tracking
Storge temperature data on local unit,get alert SMS and phone call when temperature exceed pre-setting value, get GPS tracking information on Google Map, Remote monitoring real time temperature and download historical data anytime anywhere by KingCenter CMS-02 via GPRS/UMTS TCP/IP.
Suitble for: Refrigerated transport,Cold truck,Seafood transport,Logistics Management, Chain store,Food market,Hospital managerment,Water supplier,Fuel pipe,BTS station,etc.
What you need:
S260W+GPS Standard Kit + SIM Card
PC Progrramming Software
Mobile Phone number for receiving alert
KingCenter CMS-02 System
DNS or Server IP address and Port
Computer with WinXP or Win7/8 OS
Steps
1: Install S260W on site
2: Setting alert value and record interval time& GPRS/UMTS parameters
3. Remote monitoring real time temperature value,power and GPS location
4: Download historical data remotely
