Data acquisition unit, Data collection device, Modbus RTU RS485 4DI Instrument Parts & Accessories

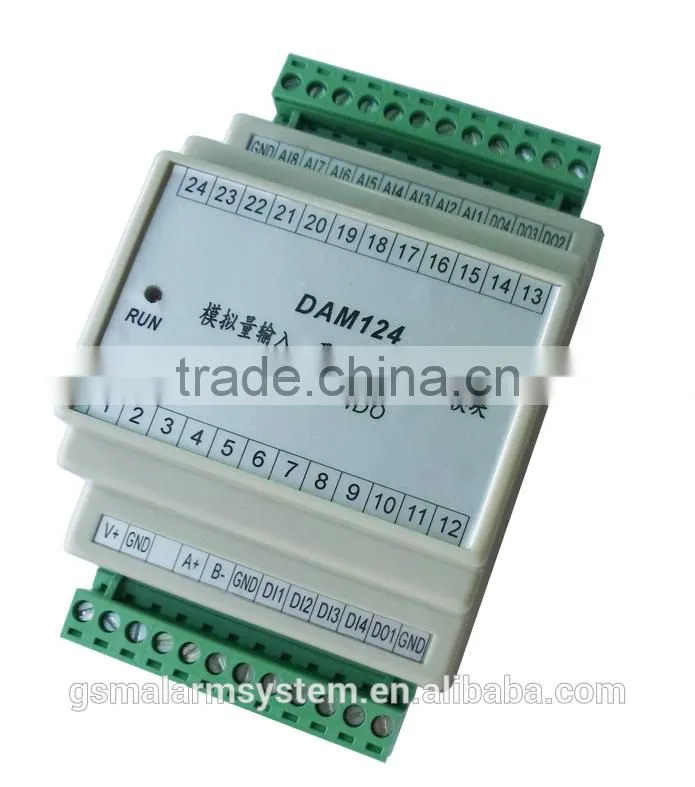

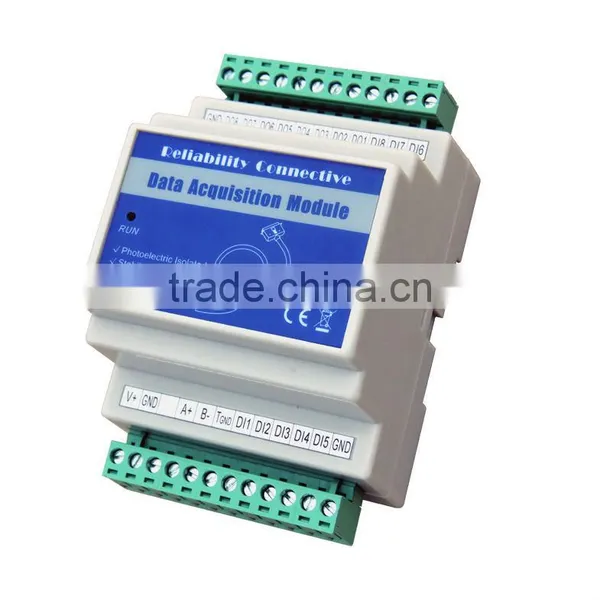

Model:DAM124
The DAM124 is for monitoring 4 digital inputs(can be used as pulse counter), 8 analog inputs, controlling 4 triode drivable digital output(50V/100mA, can be TTL or Pulse output). It supports Modbus RTU Protocol over RS485 serial port. Powered up by 10~30VDC.
The DAM124 is used widely in industrial automation control systems. E.g.: Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on.
The DAM124 is an industrial class, high reliability, low-power consumption, high stability and high precision data acquisition module.
The DAM124 with fire retardant shell, standard 35mm DIN rail makes it easy to install in fields.
2. Mainly Features
- Ø 16-bit resolution high precision AD acquisition and data processing techniques;
- Ø 4 digital input, Dry contact or Wet contact(logic:0~0.5V or NC=0, +3~30V or NO=1, input voltage range: 0~30V, Input Max. voltage range: -10~40V), can be used as pulse counter input: counter sampling frequency:1KHz, impulse width of high or low level must >1mS, Max. counter value is 4 bytes: FFFFFFFFH;
- Ø 8 analog input, can be 0~20mA,4~20mA,0~5V,0~10V;
- Ø 4 drivable digital output(triode, not relay inside, 50V/100mA), can be setup as TTL output or Pulse output(impulse width 0.1~20S);
- Ø Wide range power supply with reverse polarity connection protection;
- Ø Modbus RTU Protocol;
- Ø ESD Protection circuit for RS485 serial port;
- Ø Using industrial-grade chips;
- Ø Built-in watchdog ensure it reliability;
- Ø Lightning protection ensure it stability;
- Ø LEDs for status indication makes it easy to program in filed.
3. Specifications
Items | Specifications |
Rated Power Input | 10~30VDC(Peak Voltage must≤40V) |
Power Consumption | Typically ≤3W |
Communication Protocol | Modbus RTU |
Modbus Address | 1~247 |
Data Format | n,8,1; e,8,1; o,8,1 or n,8,2 |
Communication Interface | RS485 |
Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400Bps |
Digital Input | 8 digital input, Dry contact or Wet contact |
Drivable Output | 4 drivable digital output(triode, not relay inside,50V/100mA) |
Analog Input | Default: 4~20mA, optional: 0~20mA, 0~5V, 0~10V |
Update Period | 0.25~2S |
Measurement Precision | ±0.1%FS |
Input Resistance | Analog channel: Voltage:>1KΩ, current ≤150Ω |
Overload Capacity | 1.2 times can sustained,3 times voltage can last 1 second. |
Isolated Type | Digital Input / power / RS485 Serial port / drivable output use the same GND, no isolated. |
Withstand Tests | Input /Output /Shell: 2000VAC/min.; 500VDC>100 MΩ |
Installation Type | 35mm DIN Rail |
Operation Temperature | -20~70℃; |
Storage Temperature | -40~85℃; |
Relative Humidity | 5~95%RH.;(at -40℃, non condensate) |
Altitude | 0~3000m |
Temperature Drift | ≤100ppm/℃ |
Dimension | 118×72×59mm mm(HxWxD) |
Net Weight | 160g. |
