Modbus DAQ BTS monitor modules



Model:DAM124



The DAM124 is for monitoring 4 digital inputs(can be used as pulse counter), 8 analog inputs, controlling 4 triode drivable digital output(50V/100mA, can be TTL or Pulse output). It supports Modbus RTU Protocol over RS485 serial port. Powered up by 10~30VDC.



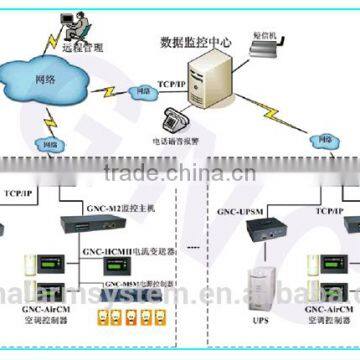

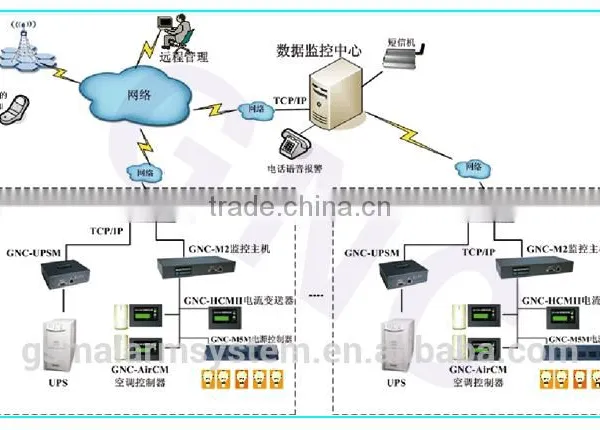

The DAM124 is used widely in industrial automation control systems. E.g.: Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on.

The DAM124 is an industrial class, high reliability, low-power consumption, high stability and high precision data acquisition module.



The DAM124 with fire retardant shell, standard 35mm DIN rail makes it easy to install in fields.

Modbus protocol DAQ BTS monitor modules with 4 digital inputs 8 analog inputs 4 Relay outputs

2. Mainly Features

  • Ø  16-bit resolution high precision AD acquisition and data processing techniques;
  • Ø  4 digital input, Dry contact or Wet contact(logic:0~0.5V or NC=0, +3~30V or NO=1, input voltage range: 0~30V, Input Max. voltage range: -10~40V), can be used as pulse counter input: counter sampling frequency:1KHz, impulse width of high or low level must >1mS, Max. counter value is 4 bytes: FFFFFFFFH;
  • Ø  8 analog input, can be 0~20mA,4~20mA,0~5V,0~10V;
  • Ø  4 drivable digital output(triode, not relay inside, 50V/100mA), can be setup as TTL output or Pulse output(impulse width 0.1~20S);
  • Ø  Wide range power supply with reverse polarity connection protection;
  • Ø  Modbus RTU Protocol;
  • Ø  ESD Protection circuit for RS485 serial port;
  • Ø  Using industrial-grade chips;
  • Ø  Built-in watchdog ensure it reliability;
  • Ø  Lightning protection ensure it stability;
  • Ø  LEDs for status indication makes it easy to program in filed.

3. Specifications



Items

Specifications

Rated Power Input

10~30VDC(Peak Voltage must≤40V)

Power Consumption

Typically ≤3W

Communication Protocol

Modbus RTU

Modbus Address

1~247

Data Format

n,8,1; e,8,1; o,8,1 or n,8,2

Communication Interface

RS485

Baud Rate

1200, 2400, 4800, 9600, 19200, 38400Bps

Digital Input

8 digital input, Dry contact or Wet contact

Drivable Output

4 drivable digital output(triode, not relay inside,50V/100mA)

Analog Input

Default: 4~20mA, optional: 0~20mA, 0~5V, 0~10V

Update Period

0.25~2S

Measurement Precision

±0.1%FS

Input Resistance

Analog channel: Voltage:>1KΩ, current ≤150Ω

Overload Capacity

1.2 times can sustained,3 times voltage can last 1 second.

Isolated Type

Digital Input / power / RS485 Serial port / drivable output use the same GND, no isolated.

Withstand Tests

Input /Output /Shell: 2000VAC/min.; 500VDC>100 MΩ

Installation Type

35mm DIN Rail

Operation Temperature

-20~70℃;

Storage Temperature

-40~85℃;

Relative Humidity

5~95%RH.;(at -40℃, non condensate)

Altitude

0~3000m

Temperature Drift

≤100ppm/℃

Dimension

118×72×59mm mm(HxWxD)

Net Weight

160g.
