Data acquisition unit, Data collection device, Modbus RTU RS485 4DI

Model:DAM124

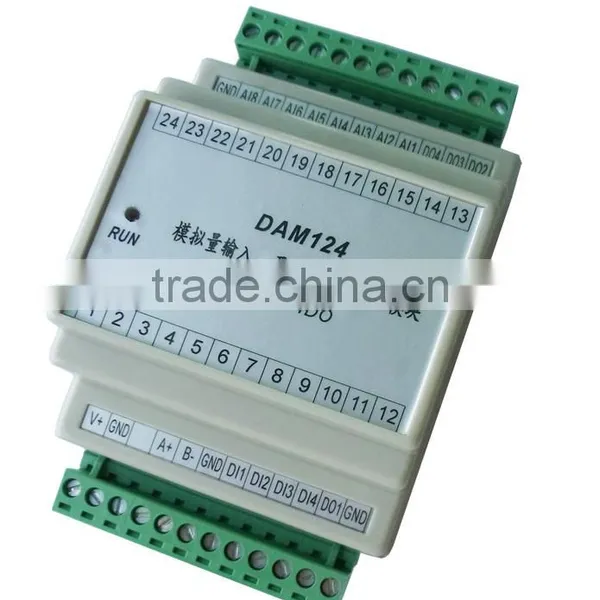

The DAM124 is for monitoring 4 digital inputs(can be used as pulse counter), 8 analog inputs, controlling 4 triode drivable digital output(50V/100mA, can be TTL or Pulse output). It supports Modbus RTU Protocol over RS485 serial port. Powered up by 10~30VDC.

The DAM124 is used widely in industrial automation control systems. E.g.: Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on.

The DAM124 is an industrial class, high reliability, low-power consumption, high stability and high precision data acquisition module.

The DAM124 with fire retardant shell, standard 35mm DIN rail makes it easy to install in fields.

2. Mainly Features

• Ø  16-bit resolution high precision AD acquisition and data processing techniques;
• Ø  4 digital input, Dry contact or Wet contact(logic:0~0.5V or NC=0, +3~30V or NO=1, input voltage range: 0~30V, Input Max. voltage range: -10~40V), can be used as pulse counter input: counter sampling frequency:1KHz, impulse width of high or low level must >1mS, Max. counter value is 4 bytes: FFFFFFFFH;
• Ø  8 analog input, can be 0~20mA,4~20mA,0~5V,0~10V;
• Ø  4 drivable digital output(triode, not relay inside, 50V/100mA), can be setup as TTL output or Pulse output(impulse width 0.1~20S);
• Ø  Wide range power supply with reverse polarity connection protection;
• Ø  Modbus RTU Protocol;
• Ø  ESD Protection circuit for RS485 serial port;
• Ø  Using industrial-grade chips;
• Ø  Built-in watchdog ensure it reliability;
• Ø  Lightning protection ensure it stability;
• Ø  LEDs for status indication makes it easy to program in filed.
