Specifications
Dump Refuse Vehicle:truck volume:10 m3
with 3C certificate
engine:YC4E160-33
two dustbins for rycling

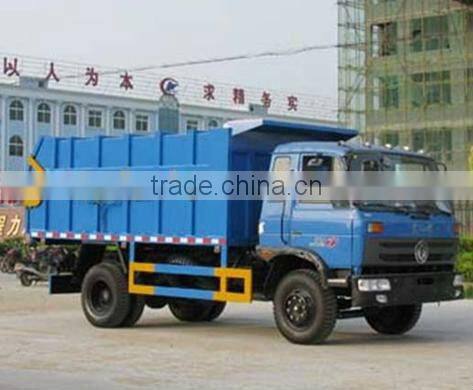

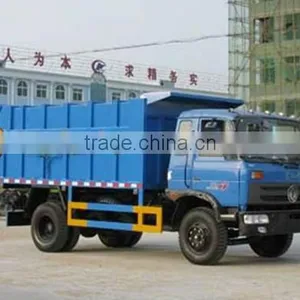

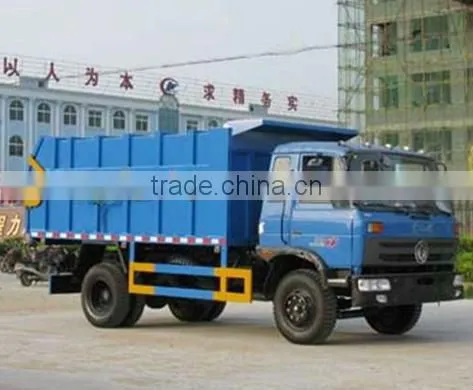

Heavy Dump Hermetic Rubbish Truck 145 TYPE Dump Refuse Vehicle/Truck GVW 11495 KG
Products Description:
Compressed garbage truck, also called hydraulic lifter garbage truck, is mainly used for collecting and carrying various kinds of rubbish. It is especially suitable for transporting household waste and then compressing, crushing to greatly improved the efficiency of garbage collection and transport. New compressed garbage truck not only comes with good quality and low breakdown rate, but also offers these functions of convenient maintenance and low running cost.
Main Function of garbage truck:
The main function of compressed garbage truck is household waste transport. Also it can used for transporting loose materials like ash, sand, rock, soil, coal, mineral and more. This garbage truck has a separable waste hopper which can achieve the goal of reusable transport capability, especially fit for short-distance transport. For example, sanitation departments transport and handle the urban waste.
Main Configurations of garbage truck:
VEHICLE MODEL | CLW5110ZDJT3 Dump hermetic Rubbish Truck | FACT VOLUME | 10 m3 | |
CHASSIS | SYSTEM |
| ||
Chassis Model | EQ1110GLJ | Enigne Type | Yuchai diesel engine YC4E160-33 |
|
F/R Track Base | 1900/1800 m | Exhaust/HP | 4257ml / 160PS |
|
Number of axles | 2 | Traction System | 4*2 |
|
Tire Specification | 9.00-20 | transmission | 6-speed with over drive |
|
Cab Passengers | 3 | Electric System | 24 v |
|
Appro/Depart Angle | 33 /15 ° | Operation Contral System | Electrically hydraulic system |
|
Mini Turning Radius | 16 m | Max Speed | 90 km/h |
|
DIMENSIONS(mm) | WEIGHT(kg) |
| ||
Overall dimensions | 7220*2480*3100 | G.V.W | 11495 |
|
Internal dimensions | 4100×2100×1100 | Rated Loading capacity | 4500 |
|
Wheel Base | 3950 | Mass In Working order | 6800 |
|
EQUIPMENT CONFIGURATION |
| |||
Dump hermetic Rubbish Truck EQUIPMENT | Equipped with hermetic dustbin, hydraulic system and operating system |
| ||
SERVICE |
| |||
Production cycle | 7-10 working days | Warranty | 12months ,from the date of supply |
|
