Specifications
4x2 4.5m3 Oil Truck1.Effective Capacity:4.5CBM ;
2.Transmission:Fuller 6 speed;

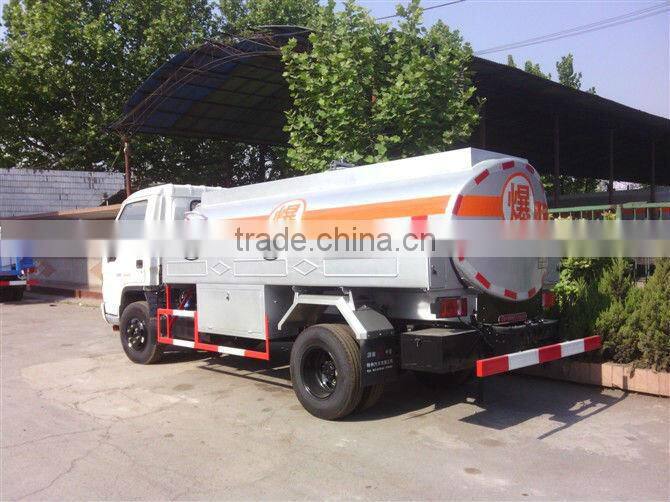

4x2 4.5m3 Oil Truck Forland Fuel Tanker Truck
Products Description:
Oil tank truck or refueller or fuel tanker or fuel tank truck is mainly suitable for transportation and storage of petroleum derivatives which include gasoline, diesel oil, crude oil, lubrication oil coal tar and more.
It comes with many functions like oil refueling and carrying according to different operating environments.
Oil tank truck is made of tank, power take-off device, transmission shaft, gear oil pump, pipe network system, etc. and five components oil pump, two way ball valve, tee and four way ball valve, oil screen and pipeline.
Maintenance knowledge of fuel tank truck:
To prolong the service life of oil tank truck, maintenance of oil tank truck is a must. The maintenance common sense includes oil and filter change of engine system, renewal of easily damaged parts such as belt, spark plug, storage battery, brake pad, clutch disc, shock absorber,etc. In addition to this, routine maintenance also embraces auto beauty like car wash, complete surface care, and interior trim care.
Main Configurations about fuel tank truck:
Dimension | Dimension | 5995x1970x2350 mm | |
Wheelbase | 3360mm | ||
Tread | Front tread | 1596mm | |
Rear tread | 1525mm | ||
Suspension | Front suspension | 1085mm | |
Rear suspension | 1550mm | ||
Approach/departure angle | 13.5/19 ° | ||
The volume of container | 4.49m3 | ||
The dimension of container | 1500x1100x3950mm | ||
Min. turning circle | 14.5m | ||
Weight | The overall weight | 6495kgs | |
Curb weight | 3300kgs | ||
Loading weight | 3000kgs | ||
Passenger number | 3 | ||
Main configuration | Transmission | Model/Speed | 1701010-Q2351/5 speed |
Ratio of each speed | i1=5.186, i2=2.643, i3=1.519, i4=1.000, i5=0.738; | ||
reverse gear | iR=4.657 | ||
Axle | "Work" word section forging front axle, 4 piece of longitudinal leaf spring suspension. | ||
Clutch | Single chip, dry, diaphragm spring, hydraulic booster clutch | ||
Tyre | 7.00-16 | ||
Performance | Chassis model | BJ1063VCJEA | |
Engine | Model | CA4DC2-10E3 (EURO 3 EFI) | |
Displacement | 3168ml | ||
Power | 76/103 Kw/ps | ||
Fuel consumption | 10.5L/100km | ||
Oil pump | Model | 65YHCB-35 YHCB | |
Rate of flow | 35m3 /h | ||
Self-absorption time | 4s | ||
head of delivery/oil absorption depth | 25/7 m | ||
Oil hose | 2 piece of 3m oil hoses; | ||
Pipeline | 2inch | ||
Ball vales | 2.5inch | ||
Fire extinguisher | 2 pieces | ||
Oiling machine | Beijing jialijia oil machine | ||
Max. speed | 94km/h | ||
We are the specialized supplier in the line of SINOTRUCK Series ,like howo dump truck/howo tippers/howo tractor truck/ howo cargo truck/tank truck/semi-trailer/light truck and so no. And XCMG/ZOOMLION series construction machinery.
Looking forward to your inquiry at any time!
Thank you and best wishes to you!
Attend:Ady Yan
Tel:+86-15254123683
Skype:ady958958
Thank you and best wishes to you!
