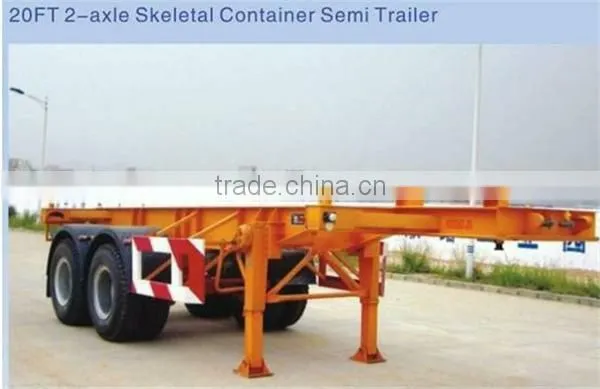

20FT 2-axle Skeletal Container Semi Trailer

Name: 20FT 2-axle Skeletal Container Semi Trailer
Brand: SINOTRUK
SKU: 141684244
Availability: InStock

Jinan Shanglong International Trade Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Size:

7850x2480

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Size 7850x2480

Max Payload 30000

Place of Origin Hubei, China

Brand Name SINOTRUK

Specifications

20FT 2-axle Skeletal Container Semi Trailer
1.Sufficient strength
2.Stable quality,
3.reliable performance

20FT 2-axle Skeletal Container Semi Trailer

Dimensions
Tare Weight	4500kgs	Payload	30000kgs
Overall Length	7850mm	Overall Width	2480mm
Specification
Chassis	Heavy duty and extra durability designed beam; Opting for high tensile steel Q345,welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm;Middle Flange 6mm;Bottom Flange 16mm,width 140mm.
Axle	2 axles
	Brand Name: BPW,L1 or FUWA-optional upon choice
Suspension	Mechanical suspension or air suspension
Spring	Leaf spring or air bag
King Pin	JOST brand 2’’ bolt-n King Pin
Twist Lock	4 no. of ISO twist lock for 1x20ft
Landing Gear	JOST brand two-speed, manual operating, heavy duty landing gear
Wheel Rim	8.5-20,9.0-20,8.25-22.5 9.0-22.5 steel wheel rim optional upon choice
Tyre	11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 Tire optional
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber;40L air tanks
Painting	Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint
Accessories	One standard tool box
