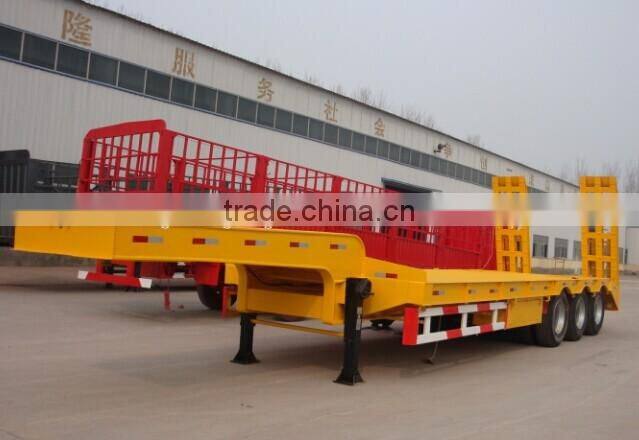

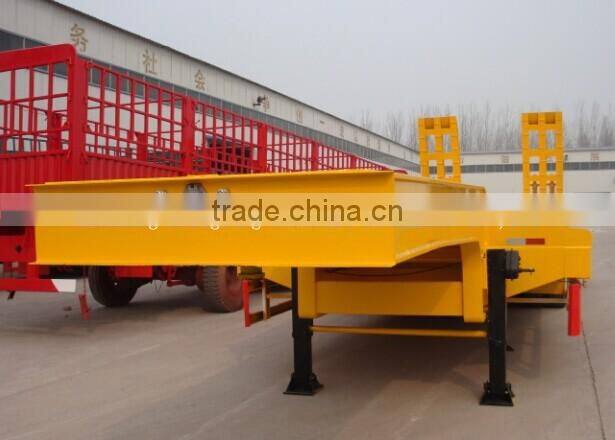

60ton Semi Trailer 3 axles Low Bed Semi Trailer
Main parameter
Three axle low-plate semi-trailer |
Overall size: 13000x3000x2780mm |
Loading Dimensions: 9550x3000x1250mm |
Loading capacity: 60000 kg |
Dead weight: 12000kg |
Axle: Three axles, FUWA brand,16000kg class |
Landing gear : two-speed, manual operating ,heavy duty landing gear 28t |
Kingpin: 3.5" bolt-in king pin |
Tire : 315/80R22.5 double star |
Wheel rim: 9.0 |
Suspension: Mechanical suspension |
Leaf spring: Leaf spring |
Floor: 5mm checkered plate |
Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac plate 20mm.bottom plate 20mm.middle plate 14mm.height 500mm |
Ladder: Mechanical ladder |
Vehicular applications: Machine transport |
Drawing: Including |
Braking system: RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
Paiting: Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Accessories: One standard tool box |
