Specifications
1.Tare Weight: 8.5-13T2.Loading Capacity (T): 40ton-100ton
3.Axle:13 T/16T

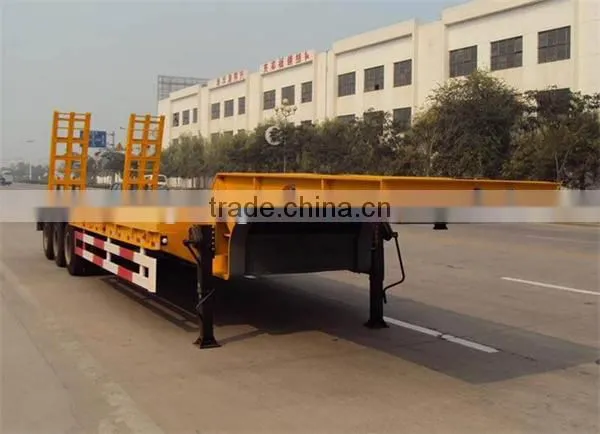

Tri-axle Transport 40 ton Low Bed Semi Trailer Truck
The Feature Of tri-axle transport 40 ton low bed semi trailer
1.Tri-axle transport 60 ton low bed semi traileris usually used to transport heavy vehicles (such as tractor, bus ,special vehicles) railway vehicles ,mining machines ,forestry farm machines, such as paver, excavator, bulldozer ,loader, crane, etc.) and other heavy cargo.Its center of gravity is lower, the better stability and safety. 2.The structure of semi-trailer usually adopt concave beam (or well type) frame ,the front of frame is gooseneck (goose segment anterior portion of traction pin connected to the tractor traction saddle, goose neck end connected to the semi-trailer frame), the middle for the goods (frame lowest part), the backend for the wheel carrier (wheel).
3.When low bed semi trailer loads on machinery and equipment, usually according the ladder to load equipment, namely by moving from the rear rack surface mechanical equipment or remove the wheel, then mechanical device fixed on the semi trailer.
4. Can also according to your special requirements to increase the number of turn lock, the carrying container.
Tare Weight | About 8.5-13T |
Dimension(mm) | 13000x3000/3500x1650 |
Loading Capacity (T) | 40T-100T |
Axle | 13 T/16T |
Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Spring leaf | 90(W)mmx13(Thickness)mmx10 Layer or 100mmx12mmx12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 450mm-520mm, Hpper plate is 14mm-25mm, Middle plate is 8mm-12mm, Down plate is 16mm-25mm ; Material is Q345B Steel . |
Side beam | 16mm -25mm channel steel ( Material is Q235steel ). |
Ladder | Manual or Hydraulic type |
Gooseneck | For choose |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely) Equipped :1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
