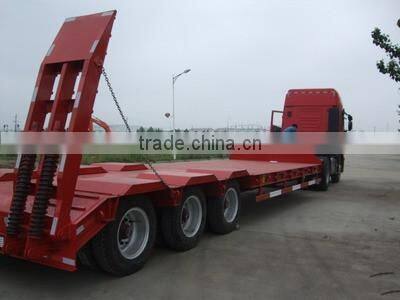

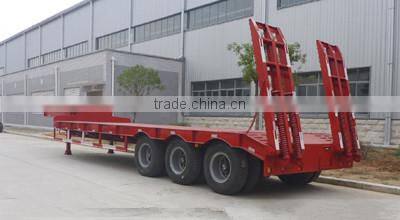

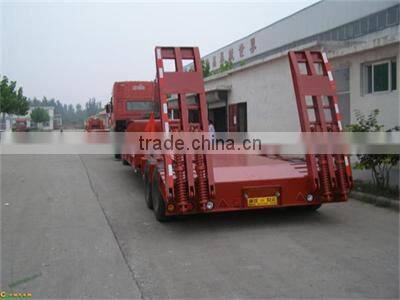

40ton Semi Trailer 3axles Low Bed Semi Trailer 40t

Jinan Shanglong International Trade Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Size:

13000x3000/3500x1650

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Size 13000x3000/3500x1650

Max Payload 100ton

Place of Origin Shandong, China

Specifications

1.Tare Weight: 8.5-13T
2.Loading Capacity (T): 40ton-100ton
3.Axle:13 T/16T

40ton Semi Trailer 3axles Low Bed Semi Trailer 40t

Tare Weight	About 8.5-13T
Dimension(mm)	13000x3000/3500x1650
Loading Capacity (T)	40T-100T
Axle	13 T/16T
Rim	6.5-20/7.5-20/8.00-20/8.5-20
Tire	8.25R20/10.00R20/11.00R20/12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mmx13(Thickness)mmx10 Layer or 100mmx12mmx12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 450mm-520mm, Hpper plate is 14mm-25mm, Middle plate is 8mm-12mm, Down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam	16mm -25mm channel steel ( Material is Q235steel ).
Ladder	Manual or Hydraulic type
Gooseneck	For choose
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1mx0.5mx0.5m (Size can be choose freely) Equipped :1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
