60ton 3 Axles Low Bed Stake Semi Trailer

Jinan Shanglong International Trade Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Size:

13000x2490x2860

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Size 13000x2490x2860

Max Payload 60ton

Place of Origin Shandong, China

Specifications

1.Tare Weight: 8.3T
2.Loading Capacity (T): less 60 T
3.Axle:13 T/16T

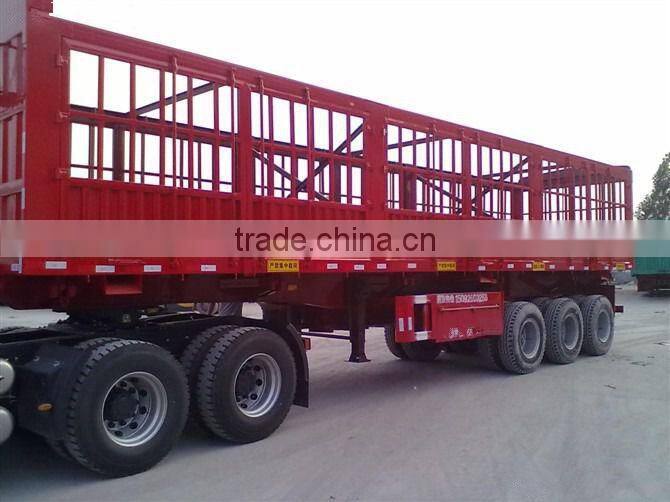

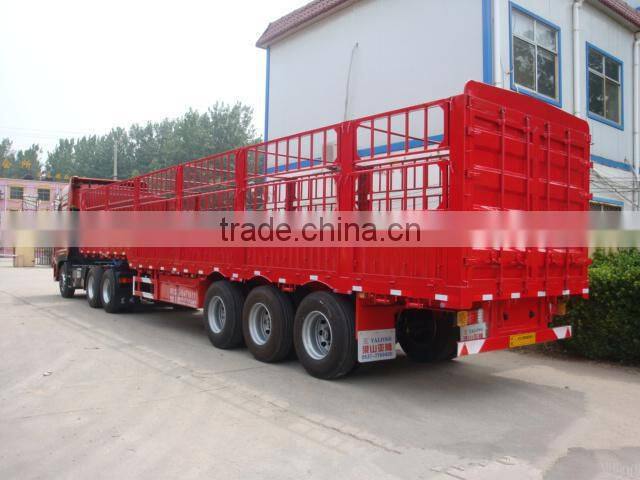

60ton 3 axles Low Bed Stake semi trailer

Tare Weight	About 8.3T
Dimension(mm)	13000x2490x2860 (Outside) /12800x2300x1800
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T
Rim	9.00-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mmx13(Thickness)mmx10 Layer or 100mmx12mmx12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam	16mm or 18mm channel steel ( Material is Q235steel ).
Side Wall	600mm-1800mm ,the open door can be choose freely. With 300-500mm height square tube or round tube
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS	Optional
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1x0.5x0.5(m) (Size can be choose freely) Equipped: 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
