Specifications
Container Transport Semi Trailer1.Loading capacity:40ton
2.No.tires:12
3.No.axles:3
4.With high reputation of quality

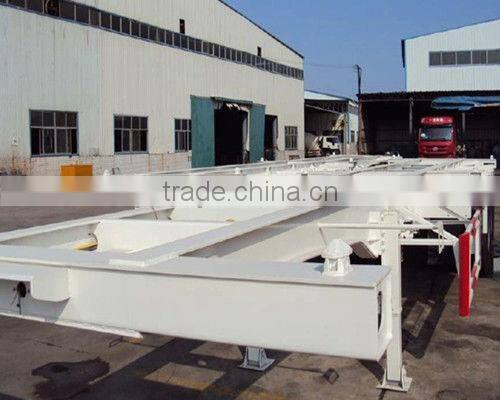

3 Axle 45 Feet Skeleton Semi Trailer
A semi-trailer, an articulated lorry, refers to a trailer having wheels at the back but supported at the front by a towing vehicle. Its centre of gravity is in the front of axles. It also comes with a coupling device passing the horizontal or vertical forces to towing vehicle.
Features and Advantages of semi-trailer:
Compared with individual vehicle, our semi trailer can make comprehensive economical profits for road transportation. Not only is cost reduced by 30%-40%, but also oil consumption is lowered by 20%-30%. More importantly, semi trailer has an important role in promoting logistic operations of China.
1. Container transport semi trailer is specially designed to container transport and it comes with frame construction without floor.
2. Low plate semi trailer offers plain structure without railing.
3. Semi trailer with railing framework embraces a huge enclosed box.
4. Tank semi trailer has a sealed tank framework.
Main Configurations of semi trailer :
Gross Weight | 6.6 tons |
Outer side dimension(mm) | 14200 × 4500× 1470/1850mm |
Loading Capacity (Ton) | ≤ 40 T |
AXLES | 3*13 T , 3 axles, FUWA brand |
Tire | 12R22.5 13pieces Triangle brand |
Rim | 9.0-22.5, 13 pieces |
Suspension | mechanical suspension |
Spring leaf | 10 pieces |
King pin | Jost brand 2.0"or 3.5” bolts type |
Support leg | 28T,China brand |
Main beam | Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 16mm |
Side beam | 16# channel plate |
Brake chamber | Four double and Two single chambers |
Twist Locks (Lifting type) | 12 pieces |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
