Specifications
Certification:CCC ISO9001.Material:H1250 H850 Q345A
High quality and better price.

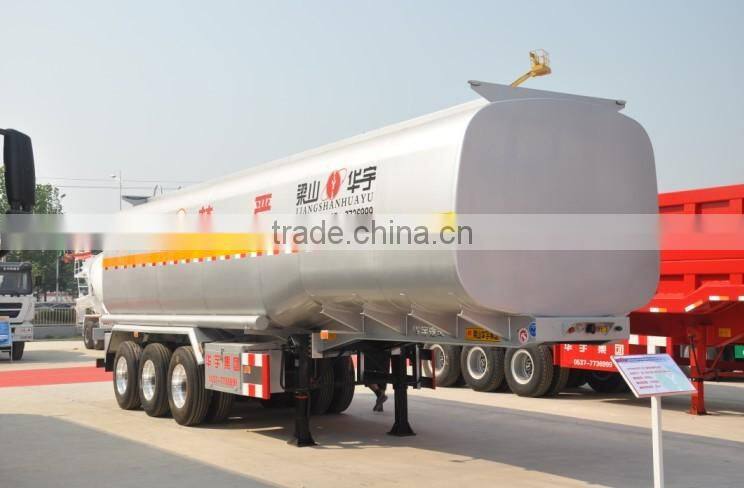

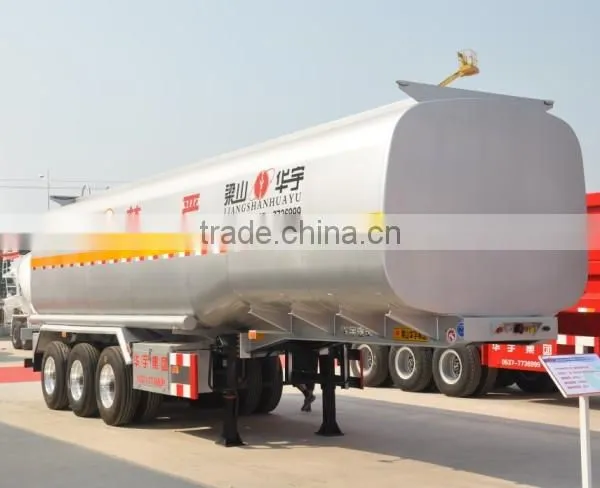

OIL TANK SMEI TRAILER |
|
||||||||||||
DIMENSIONS | |||||||||||||
Tare weight |
9000kg |
Volume |
40m3 |
||||||||||
Overall length |
11980mm |
Overall width |
2500mm |
Overall height |
3800mm |
||||||||
SPECIFICATION | |||||||||||||
Tank body |
Q235/5mm steel shape :monoblock cylinder |
||||||||||||
End plate |
Q235A/6mm steel sheet |
||||||||||||
Axle |
Number |
3 |
Brand |
Fuwa |
Capacity |
13T |
|||||||
Suspension |
Mechanical suspension |
|
|||||||||||
Leaf spring |
Leaf spring or air bag |
||||||||||||
Manhole cover |
500mm manhole cover .2 sets with 2 breather valve. |
||||||||||||
Tire |
11.00R22.5 |
||||||||||||
Discharge valve |
4`disc valve |
||||||||||||
Dischage pipe |
4`seamless steel tube |
||||||||||||
Kingpin |
2` bolt-in king pin |
|
|||||||||||
Landing gear |
two-speed,manual operating ,heavy duty landing gear |
||||||||||||
Bottom valve |
1-2 sets of aluminum API pneumatic bottom valve |
||||||||||||
Outside sheet |
1.2 mm steel sheet |
||||||||||||
Compartment |
Single inner fluidized bed:air bag |
||||||||||||
Braking system |
RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
||||||||||||
Paiting |
Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
|
|||||||||||
Accessories |
One standard tool box |
||||||||||||
Insulating materials |
Fiber glass/polyurethane 50mm |
||||||||||||
Heating device |
Optional |
||||||||||||
Main beams |
Opting for high tensile steel Q345B welded by automatic submerged-arc processes |
||||||||||||
