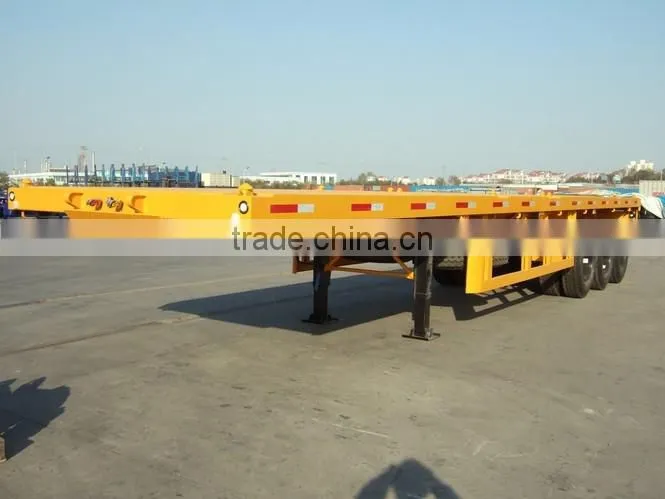

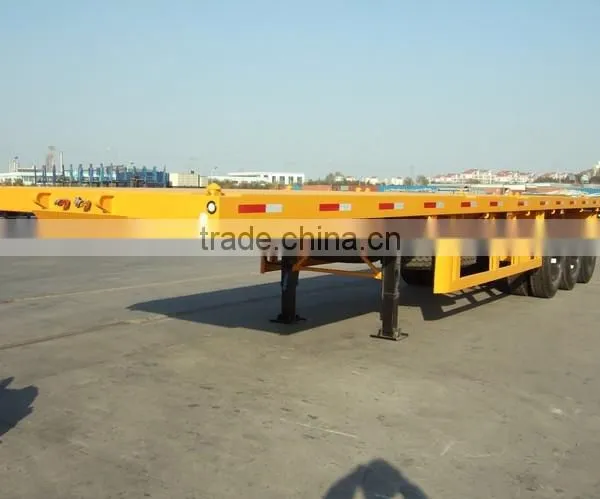

FLATBED SEMI TRAILER 60T 3Axle
- 600 Unit / Units per Month
- China main port
- T/T L/C D/P D/A
You May Like
Product Details
| Type | Semi-Trailer | Material | Iron | |
| Certification | CE | Size | 13000*3000*2000 | |
| Max Payload | 60000 | Place of Origin | Shandong, China | |
| Brand Name | SINOTRUK | Model Number | QDZ |
Product Description
Specifications
Certification:CCC ISO9001.Material:H1250 H850 Q345A
High quality and better price.
FLATBED SEMI TRAILER |
| ||||||||||||
DIMENSIONS | |||||||||||||
Tare weight | 7500kg | Payload | 40000 kg | ||||||||||
Overall length | 13000mm | Overall width | 2500mm | Overall height | 1500mm | ||||||||
SPECIFICATION | |||||||||||||
Chassis | Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 14mm,width140mm;Middle Flange 6mm;bottom flange16mm,width 140mm | ||||||||||||
Axle | Number | 3 | Brand | Fuwa | Capacity | 13T | |||||||
Suspension | Mechanical suspension or air suspension |
| |||||||||||
Leaf spring | Leaf spring or air bag | ||||||||||||
Floor | 2’’ bolt-in king pin | ||||||||||||
Tire | 11R22.5 | ||||||||||||
Wheel rim | 8.5-20 | ||||||||||||
Kingpin | 2’’ bolt-in king pin |
| |||||||||||
Landing gear | two-speed,manual operating ,heavy duty landing gear | ||||||||||||
Twist lock | 12 no.of ISO twist lock for 1x20ft,2x20ft,1x40ft container | ||||||||||||
Vehicular applications | Container (20ft.40ft..45ft ) transport | ||||||||||||
Drawing | Including | ||||||||||||
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks | ||||||||||||
Paiting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| |||||||||||
Accessories | One standard tool box | ||||||||||||
