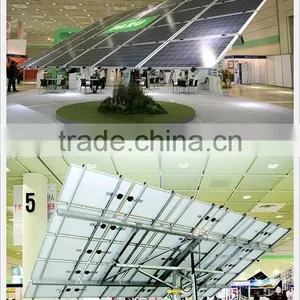

Solar Tracker

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

South Korea

Model Number:

PST-2A3, PST-1A6

Specification:

Normal

Paru Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin South Korea

Model Number PST-2A3, PST-1A6

Specification Normal

Specifications

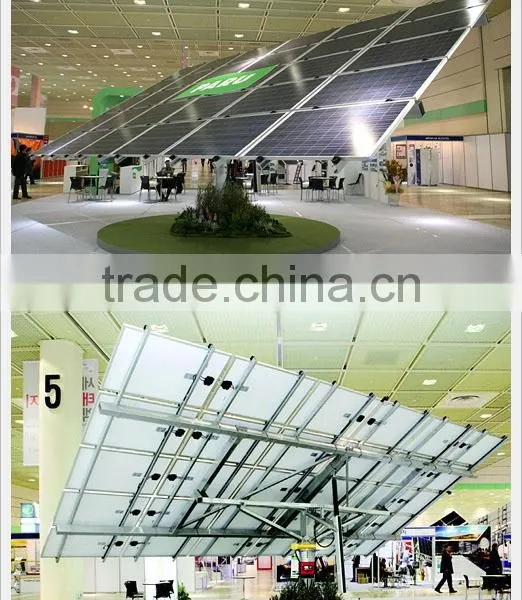

Solar Tracker : Real-time Tracking System with Solar Sensor

Solar Trackers

Azimuth drive	Worm drive Motor : 3,000RPM/120W/DC24V
Elevation drive	Linear actuator Control angle : 60° Motor : 3,000RPM/120W/DC24V Stroke distance : 1,000mm
PV Sensor	For PV applications Real-time tracking sensor Photo diode array Azimuth & Elevation signals Tracking accuracy within ±1°C
CPV Sensor	For Concentrated PV applications Real-time tracking sensor Tracking accuracy within ±0.1°C
Controller	Automatic/Manual control mode Automatic safety control : Wind/Snow, etc. User's config,(Azimuth/Elevation/Tilt/Wind/Temp) Compatibility with various sensors Two-way communications(RS-485)/web monitoring

Technical specs.

Contents		1 axis Tracker(6.4kW)	2 axis Tracker(3.2kW)	2 axis Tracker(6.6kW)
Model		PST-1A6	PST-2A3	PST-2A6
Peak Capacity		6.4KW(e.g.: 32modules of 200Wp)	3.2KW(e.g.: 16modules of 200Wp)	6.6KW(e.g.: 30modules of 220Wp)
Module area		46m2	23m2	48m2
Max. Mounting weight		800kg	500kg	800kg
System weight		1,400kg	600kg	1,100kg
Azimuth	Drive type	Worm drive(Roller bearing)	Worm drive(Roller bearing)	Worm drive(Roller bearing)
	Control Angle (Horizontal)	0~270°	0~240°	0~240°
	Motor	3,000RPM(120W/DC24V)(Ratio 62,694:1→0.047RPM)	3,000RPM(120W/DC24V)(Ratio 68,526:1→0.043RPM)	3,000RPM(120W/DC24V)(Ratio 62,694:1→0.047RPM)
Elevation	Drive type	-	Linear actuator	Linear actuator
	Control Angle (Vertical)	-	0~70°	0~70°
	Motor	-	3,000RPM(120W/DC24V)(Ratio 288:1→10.4RPM)	3,000RPM(120W/DC24V)(Ratio 288:1→10.4RPM)
Power consumption		120W(Max. 60Wh/day)
Materials		Zinc-galvanized steel
Tracking method		Closed loop(Real-time solar tracking sensor)
Sensor type		Photo diode array sensor
Tracking accuracy		WIthin ±1° with PV sensor/Within ±0.1° with CPV Sensor
Min. Lux for tracking		3.000Lux
Manual Controller		10 buttons : (Automatic/Manual), (East/West)/South/North), (Digit input 2 buttons/ESC/enter
Option		Monitoring system, Ambient sensor, Anemometer, Inclination sensor ... etc.
Max. Wind speed	Normal operation	14m/s(50Km/h)
	Safety mode(0°)	35m/s(126Km/h)
	At 45° angle(constant)	25m/s(90Km/h)
Safe mode		Automatic return to Horizontal position in case; 1)Below 3,000 Lux over 2hours, or 2)Warnings from sensors
