Solar Tracker

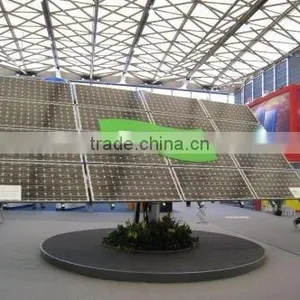

Solar Tracker thumbnail-1

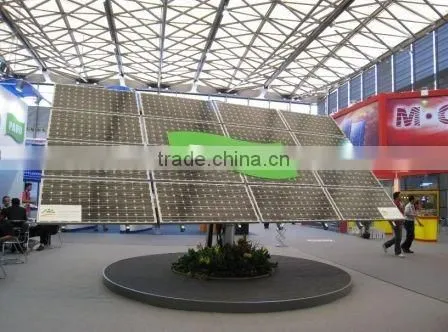

Solar Tracker photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jeollanam-do, South Korea
Brand Name:
Solar tracker
Model Number:
PST-2A3, PST-1A6
Contact Supplier Request Quote Chat Now
Paru Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jeollanam-do, South Korea
Brand Name Solar tracker
Model Number PST-2A3, PST-1A6
Specification Normal

Specifications

Solar Tracker : Real-time Tracking System with Solar Sensor

Solar Trackers

Sun trackers are more and more used to increase the electricity yield by more than 35%(dual-axis tracker) and 20%(single-axis tracker) compared to the fixed system.





Solar Trackers

  • Real-time tracking
  • CPV & PV solar sensor
  • Accuracy & Efficiency
  • Safety & Durability
  • Quick & Easy Installation
  • Cost-effective system

Azimuth drive
Worm drive
Motor : 3,000RPM/120W/DC24V
Elevation drive
Linear actuator
Control angle : 60°
Motor : 3,000RPM/120W/DC24V
Stroke distance : 1,000mm

PV Sensor
For PV applications
Real-time tracking sensor
Photo diode array
Azimuth & Elevation signals
Tracking accuracy within ±1°C
CPV Sensor
For Concentrated PV applications
Real-time tracking sensor
Tracking accuracy within ±0.1°C
Controller
Automatic/Manual control mode
Automatic safety control : Wind/Snow, etc.
User's config,(Azimuth/Elevation/Tilt/Wind/Temp)
Compatibility with various sensors
Two-way communications(RS-485)/web monitoring

Technical specs.

Contents
1 axis Tracker(6.4kW)
2 axis Tracker(3.2kW)
2 axis Tracker(6.6kW)
Model
PST-1A6
PST-2A3
PST-2A6
Peak Capacity
6.4KW(e.g.: 32modules of 200Wp)
3.2KW(e.g.: 16modules of 200Wp)
6.6KW(e.g.: 30modules of 220Wp)
Module area
46m2
23m2
48m2
Max. Mounting weight
800kg
500kg
800kg
System weight
1,400kg
600kg
1,100kg
Azimuth
Drive type
Worm drive(Roller bearing)
Worm drive(Roller bearing)
Worm drive(Roller bearing)
Control Angle
(Horizontal)
0~270°
0~240°
0~240°
Motor
3,000RPM(120W/DC24V)(Ratio 62,694:1→0.047RPM)
3,000RPM(120W/DC24V)(Ratio 68,526:1→0.043RPM)
3,000RPM(120W/DC24V)(Ratio 62,694:1→0.047RPM)
Elevation
Drive type
-
Linear actuator
Linear actuator
Control Angle
(Vertical)
-
0~70°
0~70°
Motor
-
3,000RPM(120W/DC24V)(Ratio 288:1→10.4RPM)
3,000RPM(120W/DC24V)(Ratio 288:1→10.4RPM)
Power consumption

120W(Max. 60Wh/day)




Materials

Zinc-galvanized steel
Tracking method

Closed loop(Real-time solar tracking sensor)
Sensor type

Photo diode array sensor
Tracking accuracy

WIthin ±1° with PV sensor/Within ±0.1° with CPV Sensor
Min. Lux for tracking

3.000Lux
Manual Controller

10 buttons : (Automatic/Manual), (East/West)/South/North), (Digit input 2 buttons/ESC/enter
Option

Monitoring system, Ambient sensor, Anemometer, Inclination sensor ... etc.
Max. Wind speed
Normal operation

14m/s(50Km/h)
Safety mode(0°)

35m/s(126Km/h)
At 45° angle(constant)

25m/s(90Km/h)
Safe mode

Automatic return to Horizontal position in case; 1)Below 3,000 Lux over 2hours, or 2)Warnings from sensors
