2-Axis Solar Tracker(4Kw)

2-Axis Solar Tracker(4Kw) thumbnail-1
2-Axis Solar Tracker(4Kw) thumbnail-2
2-Axis Solar Tracker(4Kw) thumbnail-3
2-Axis Solar Tracker(4Kw) photo-1
2-Axis Solar Tracker(4Kw) photo-2
2-Axis Solar Tracker(4Kw) photo-3
Negotiable MOQ: 30 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jeollanam-do, South Korea
Brand Name:
2-Axis Tracker (4Kw)
Model Number:
PST-2A4
Contact Supplier Request Quote Chat Now
Paru Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Inchon Busan Gwangyang and other ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jeollanam-do, South Korea
Brand Name 2-Axis Tracker (4Kw)
Model Number PST-2A4
Specification Normal
Application Industrial
Output Voltage (V) 120W/DC24V
Load Power (W) 50Km/h~230Km/h
Solar Power (W) 4Kw
Work Time (h) 24hours

2-Axis Tracker (4Kw)  Model No. PST-2A4

2-Axis Solar Tracker(4Kw)

Technical Specs

Contents2-Axis Tracker(4Kw)
Max. Capacity4Kw
Module Mounting Area26m²
Max. Mounting Weight350Kg
Total Weight1200Kg

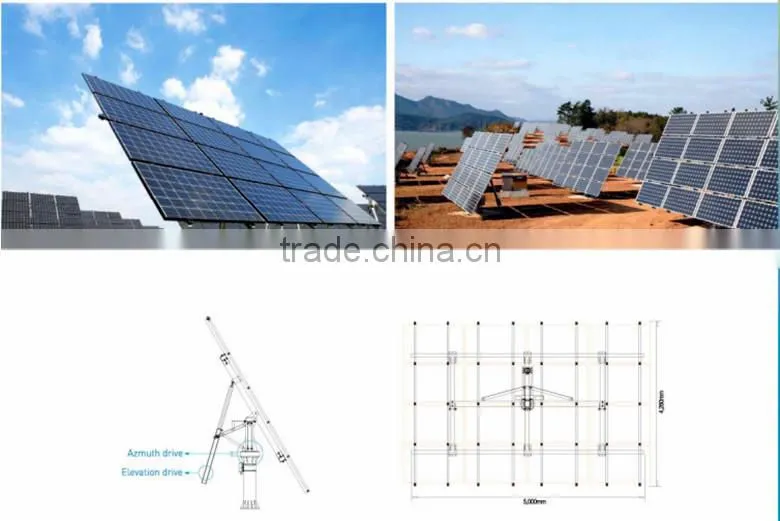

Azimuth ControlDriveWorm Drive (Roller Bearing)
Control Angle (Horizontal)270°
Motor2800RPM(120W/DC24V)
ElevationDriveLine Actuator
Control Angle (Vertical)0~70°
Motor2800RPM(120W/DC24V) / (Ration 288:1→10.4RPM)
Max. Power Consumption120W
Main MaterialZinc-Galvanized Steel
Tracking MethodStandard: Solar-Sensor Tracking / Optional: Data-Tracking
ControllerAuto Mode / Manual Mode...RS-485 Terminal
Tracking Accuracy Tolerance±1°
Min. Sunlight For Tracking300W/m²
FoundationConcrete Foundation, Ground Screw
OptionsMonitoring software, Anemometer
Max. Wind Load    Normal Operation                14m/s (50Km/h)
Safety Mode (0°)35m/s (126Km/h)
At 45° Angle (Contant)25m/s (90Km/h)
At 45° Angle (Instant)66.5m/s (230Km/h)
Night Mode (Horizontal Idling mode)1) Below 300W/m² over 2hours  2) Warnings from sensors
