2-Axis Solar Tracker(6.6Kw)

2-Axis Solar Tracker(6.6Kw) thumbnail-1
2-Axis Solar Tracker(6.6Kw) thumbnail-2
2-Axis Solar Tracker(6.6Kw) thumbnail-3
2-Axis Solar Tracker(6.6Kw) thumbnail-4
2-Axis Solar Tracker(6.6Kw) photo-1
2-Axis Solar Tracker(6.6Kw) photo-2
2-Axis Solar Tracker(6.6Kw) photo-3
2-Axis Solar Tracker(6.6Kw) photo-4
Negotiable MOQ: 30 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jeollanam-do, South Korea
Brand Name:
2-Axis Solar Tracker (6.6Kw)
Model Number:
PST-2A6
Contact Supplier Request Quote Chat Now
Paru Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Seoul Inchon Busan Gwangyang and other ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jeollanam-do, South Korea
Brand Name 2-Axis Solar Tracker (6.6Kw)
Model Number PST-2A6
Specification Normal
Application Industrial
Output Voltage (V) 120W/DC24V
Load Power (W) 50Km/h~230Km/h
Solar Power (W) 160W
Work Time (h) 24hours

2-Axis Solar Tracker (6.6Kw)   Model No.PST-2A6

2-Axis Solar Tracker(6.6Kw)



Technical Specs



Contents2-Aixs Tracker (6.6Kw)
Max. Capacity6.6Kw
Module Mounting Area50m²
Max. Mounting Weight660Kg
Total Weight2000Kg

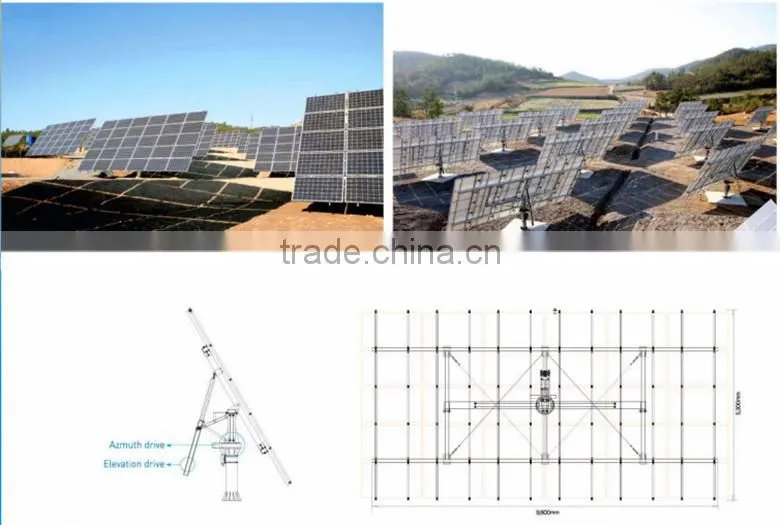

Azimuth ControlDriveWorm Drive (Roller Bearing)
Control Angle(Horizontal)270°c
Motor2800RPM(120W/DC24V)
ElevationDriveLiner Actuator
Control Angle(vertical)0~70°c
Motor2800RPM(120W/DC24V)/(Ration 288:1→10.4RPM)
Max.Power Consumption160W
Main MaterialsZinc-galvanized Steel
Tracking MethodStandard: Solar-Sensor Tracking / Optional: Data-tracking
ControllerAuto mode / Manual mode...RS-485 terminal

Tracking Accuracy Tolerance

±1°
Min.Sunlight For Tracking300W/m²
FoundationConcrete Foundation, Ground Screw
OptionsMonitoring software, Anemometer
Max.Wind Load Normal operation14m/s( 50Km/h)
Safety mode(0°)35m/s (126Km/h)
At 45° angle( Constant)            25m/s(90Km/h)
At 45° angle (Constant)66.5m/s(230Km/h)
Night Mode ( Horizontal Idling Mode)1)Below 300W/m² over 2hours  2) Warning from sensors
