1-Axis Solar Tracker(13.2kW)
Negotiable
MOQ: 30 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jeollanam-do, South Korea
Brand Name:
1-Aixs Solar Tracker(13.2kW)
Model Number:
PST-1A13
Payment & Shipping
Payment Methods:
Port of Shipment:
Inchon Busan Gwangyang and other ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jeollanam-do, South Korea
Brand Name
1-Aixs Solar Tracker(13.2kW)
Model Number
PST-1A13
Specification
Normal
Application
Industrial
Output Voltage (V)
120W/Dc24V
Load Power (W)
50Km/h~230Km/h
Solar Power (W)
13.2kW
Work Time (h)
24hours
1-Axis Solar Tracker(13.2kW) Model No.PST-1A13
Technical Specs
| Contents | 1-Axis Tracker(13.2kW) | |
| Max. Capacity | 13.2kW(e.g. 66modules of 200Wp) | |
| Module Mounting Area | 104m² | |
| Max. Mounting Weight | 1200Kg | |
| Total Weight ( Only Tracker) | 1800Kg | |
| Azimuth Control | Drive | - |
| Control Angle (Horizontal) | - | |
| Motor | - | |

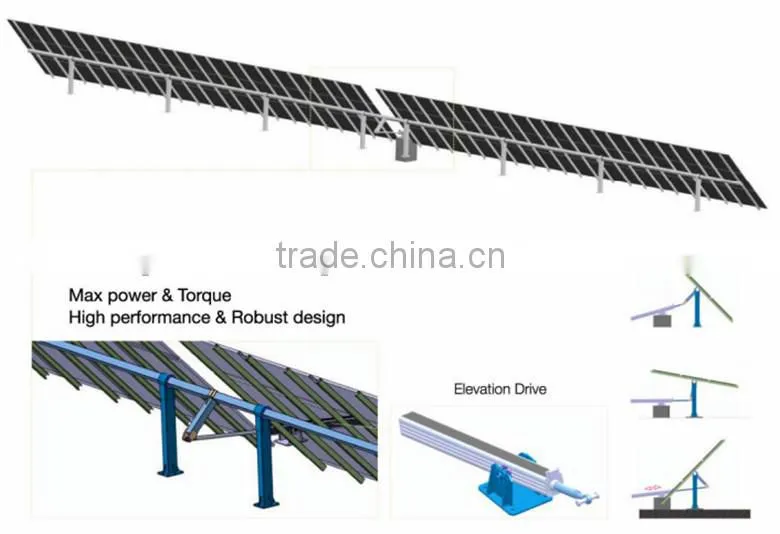

| Elevation | Drive | Line Actuator |
| Control Angle (Vertical) | ±45° | |
| Motor | 2800RPM (120W/DC24V) / (Ration 288:1→10.4RPM) | |
| Max. Power Consumption | 120W | |
| Main Materials | Zinc-Glavanized Steel | |
| Tracking Method | Standard: Solar-Sensor Tracking / Optional: Data-Tracking | |
| Controller | Auto Mode /Manual Mode..RS-485 Terminal | |
| Min. Sunlight For Tracking | 300W/m² | |
| Foundation | Concrete Foundation, Ground Screw | |
| Options | Monitoring software, Anemometer | |
| Max. Wind Load | Normal Operation | 14m/s (50Km/h) |
| Safety Mode(0°) | 35m/s (126Km/h) | |
| At 45° Angle (Constant) | 25m/s (90Km/h) | |
| At 45° Angle (Instant) | 66.5m/s (230Km/h) | |
| Night Mode (Horizontal Idling Mode) | 1) Below 300W/m² over 2hours 2) Warning from Sensors | |
