Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > Jaw Crusher PEF250X400 Price

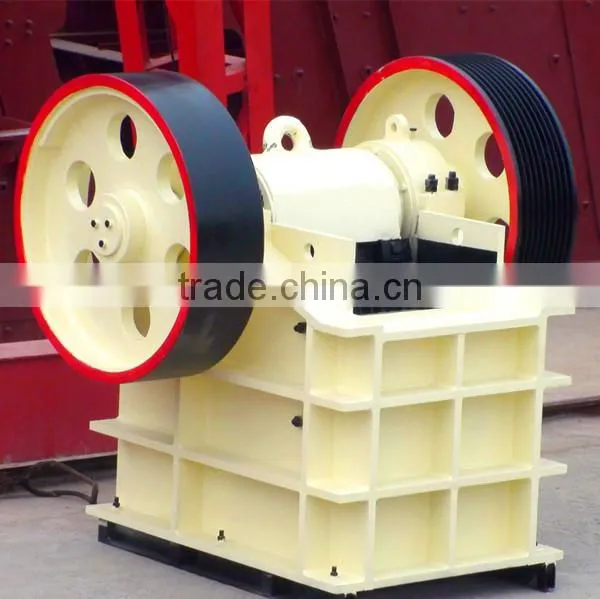

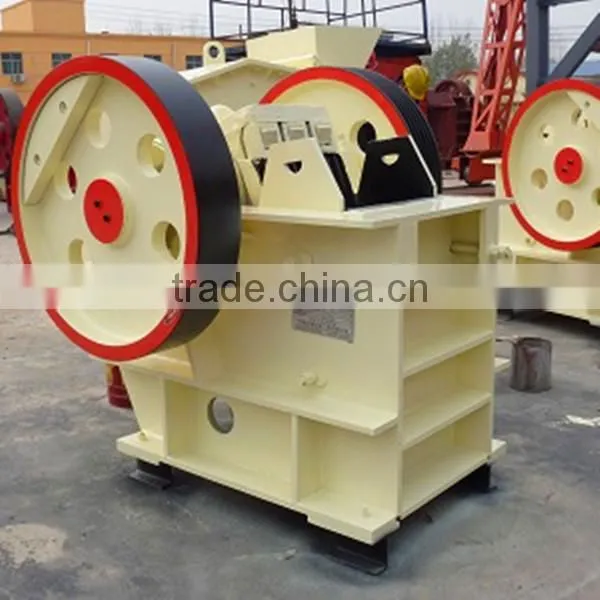

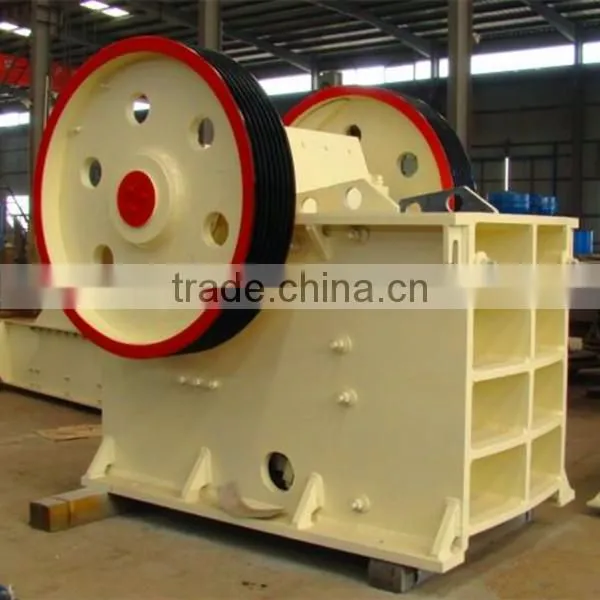

Jaw Crusher PEF250X400 Price

Zhengzhou Dynnor Industrial Machinery Co., Ltd.

Jaw Crusher PEF250X400 Price thumbnail-1

Jaw Crusher PEF250X400 Price thumbnail-2

Jaw Crusher PEF250X400 Price thumbnail-3

US$ 4,500 - 6,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Jaw Crusher

Application:

rock, limestone, etc., lime stone, rock

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO TIANJIN SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Jaw Crusher

Application rock, limestone, etc., lime stone, rock

Motor Type AC Motor

Power(W) 18.5

Capacity(t/h) 5-20 m3/h

Place of Origin Henan, China

Model Number PEF250x400

Dimension(L*W*H) 1108x1142x1392mm

Weight 3000kg

Certification ISO, CE

Warranty 12 months, 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Jaw Crusher PEF 250x400 Price

Description of Jaw Crusher:

The Jaw crusher is applicable for the rough and medium crushing of rocks and ores that have a compressive strength not more than 245MPa.

Structure of Jaw Crusher:

The jaw crusher consists of bracket, jaw, eccentric shaft, jaw plate and ancon plate etc. Eccentric shaft is driven to rotate by motor and jaw runs on adjusted track to crush materials in crushing chamber.

The bracket is welded by steel plate. On the front arm of bracket, jaw plate is fixed by wedge-shaped bolt. Edge protection plate is equipped on inside wall of bracket to prevent abrasion.

Technical Specification of Jaw Crusher:

Model	Technical specification				Power (kw)	Overall Dimensions (mm)	Weight (kg)
Model	Max. Feeding Size (mm)	Adjustment scopes (mm)	Capacity (m3/h)	Roatating speed of mainshaft (r/min)	Power (kw)	Overall Dimensions (mm)	Weight (kg)
PEF150x250	125	10-40	1-3	285	7.5	922x745x933	700
PEF200x300	165	20-70	2-8	265	11	1056x1100x1120	800
PEF250x400	210	20-80	5-20	310	18.5	1108x1142x1392	3000
PEF400x600	340	40-90	10-40	275	30	1700x1732x1392	7200
PEF350x750	290	30-55	20-50	300	37	1900x1806x1808	8900
PEF500x750	425	50-100	34-68	275	55	2050x1860x2145	11320
PEF600x900	480	75-200	40-120	255	75	2792x2168x2250	17600
PEF750x1060	630	80-200	80-160	250	90	4180x2560x3070	30530
PEF900x1200	750	100-200	110-200	250	110	5200x2900x3500	50000
PEF1200x1500	1020	150-300	220-400	180	160	4200x3300x3500	106000
PEX150x750	125	10-40	5-15	300	15	1220x1480x1180	3600
PEX250x1000	210	15-55	10-32	300	37	1580x1992x1380	7350
PEX250x1200	210	15-60	12-38	300	37	1530x2192x1380	8700
PEX300x1300	250	20-90	16-65	300	55	1930x2400x1747	11600
