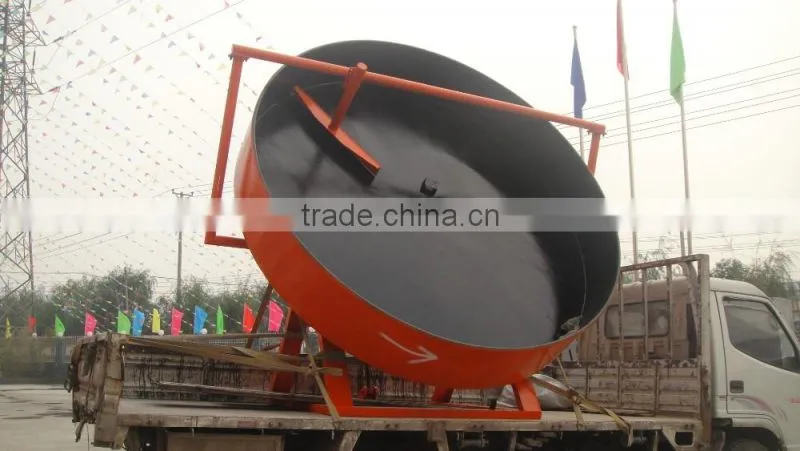

Pan Granulator for Making Organic Fertilizer
Brief Introduction of Organic Fertilizer Granulator
The Organic fertilizer production line uses animal dung likechicken, pig manure as the main raw material, and add a certain amount of nitrogen fertilizer, phosphate fertilizer, potash fertilizer, magnesium sulfate, ferrous sulfate and other substances, with rice bran, yeast, soybean meal and saccharide as biological bacterium fermentation time, under the action of sulfuric acid, mixed fermentation with biological fertilizer equipment.
Configurations of Organic Fertilizer Production Line :
Three configurations of Organic Fertilizer Production Line:
High configuration: chicken manure dryer, fermentation heap machine, pulverizer, of half wet material is horizontal mixer, granulator, dryer, cooling machine, roller screening machine, coating machine, packaging equipment, belt conveyor, etc.
Middle configuration: half wet materials grinder, horizontal mixer, granulator, dryer, cooling machine, drum screening machine, packaging equipment, belt conveyor, etc.
Low configuration: half wet materials grinder, horizontal mixer, granulator/drum screening machine, packaging equipment.

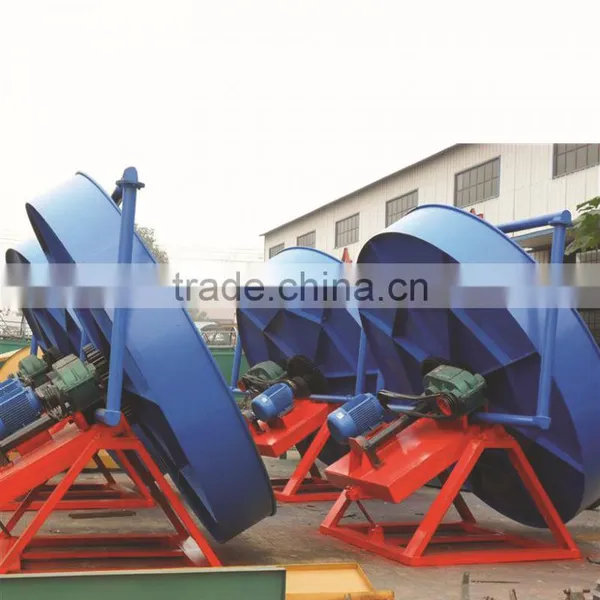

Characteristics of Pan Granulator:
This machine is suitable for the material that has 10-30% nutrient.
It has many characteristic such as: high rate, round grains, easy to operate and maintain. Stable moving on the traps of reducer and motor extend the life span of the machine.
The pan granulator adopts whole arc Angle structure with granulation rate of 93%. Granulation pan has three outlets which facilitate the material production operation and will greatly continuously reduce labor intensity and improve labor efficiency. Reducer and motor uses flexible belt drive, so it starts smoothly, slows wallop and improve equipment lifespan. The bottom of granulation pan adopts multiterm radiation steel strengthening, so the structure is sturdy and durable, never deformation. The machine adopts strong base design, no need the anchor bolts to fix and operate smoothly. The master gear of granulation adopts high frequency quenching which doubles the service life. Granulation face pan lined with high strength glass fiber reinforced plastics, anti-corrosion and durable.pment for organic fertilizer, compost production shorten the process.
Technical Specification of Pan Granulator:
Model |
Disk diameter (mm) |
Height of disk-rim (mm) |
Slope angle (°) |
Rotating speed (r/min) |
Motor power (kw) |
Production capability (t/h) |
DLY-2.0 |
2000 |
200-450 |
40-55 |
15.4 |
5.5 |
0.8-1.5 |
DLY -2.2 |
2200 |
250-500 |
40-55 |
15.4 |
7.5 |
1.5-2 |
DLY -2.5 |
2500 |
350-550 |
40-55 |
13.8 |
7.5 |
1.8-2.5 |
DLY -2.8 |
2800 |
350-600 |
40-55 |
13.8 |
7.5 |
2-3 |
DLY -3.0 |
3000 |
400-650 |
40-55 |
11.8 |
11 |
2.5-3.5 |
DLY -3.2 |
3200 |
400-650 |
40-55 |
11.8 |
15 |
3-5 |
DLY -3.6 |
3600 |
400-700 |
40-55 |
11.8 |
18.5 |
4-7 |
DLY -4.0 |
4000 |
400-700 |
40-55 |
9.6 |
30 |
6-10 |
DLY -4.2 |
4200 |
550-800 |
40-55 |
8.9 |
30 |
8-15 |
DLY -4.5 |
4500 |
600-900 |
40-55 |
7.8 |
37 |
12-20 |
