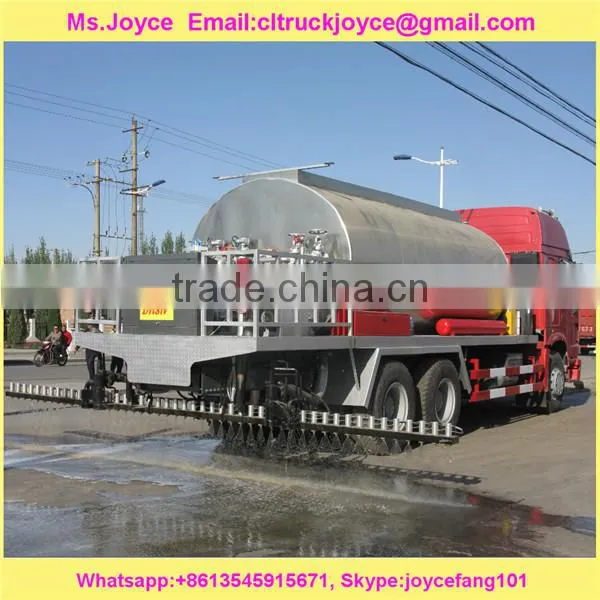

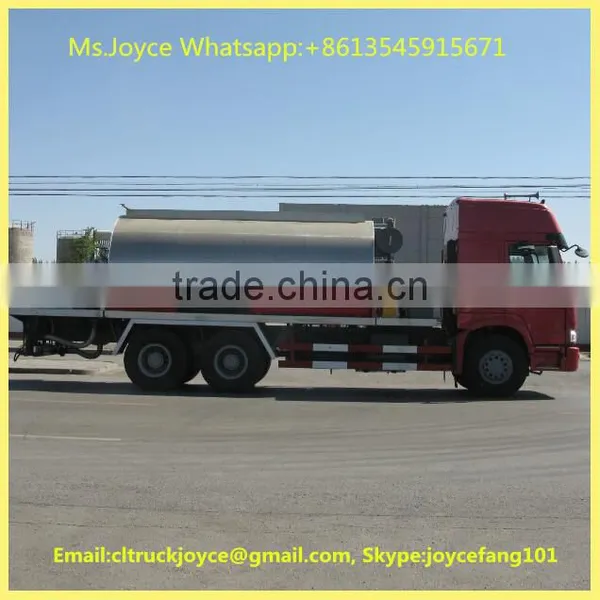

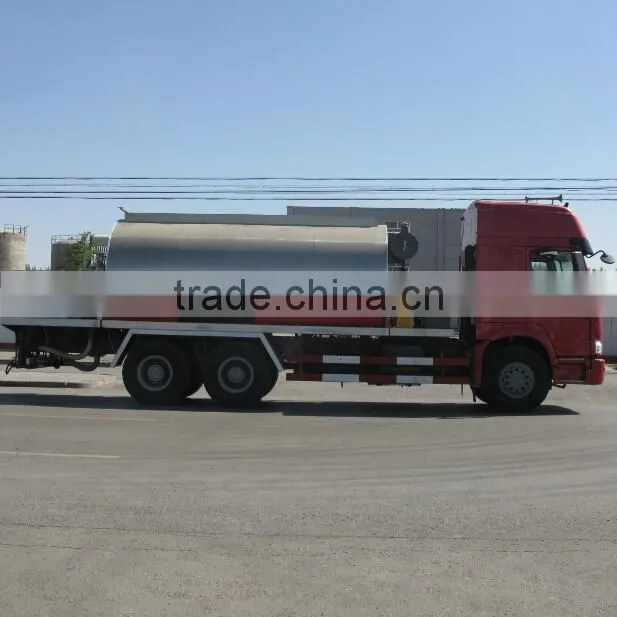

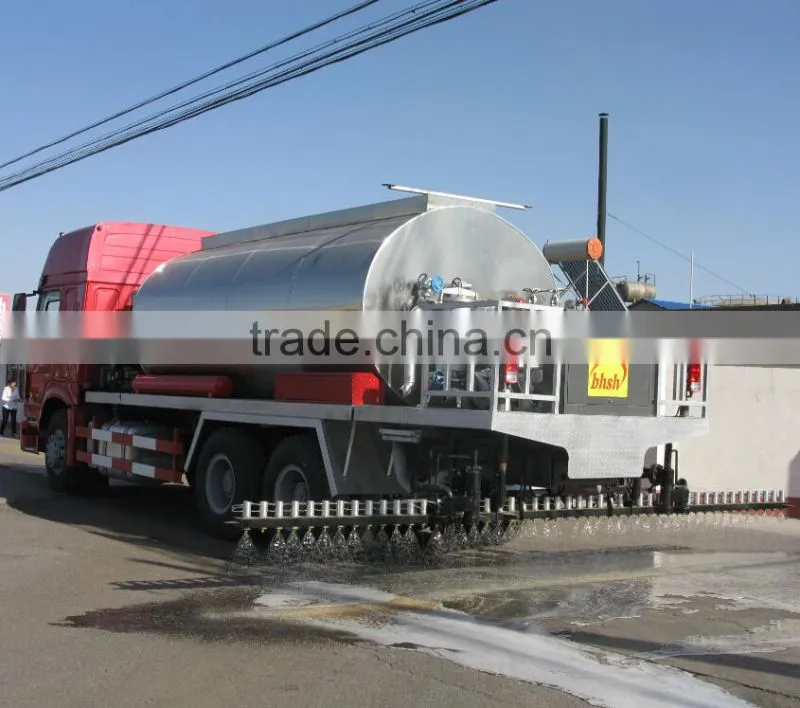

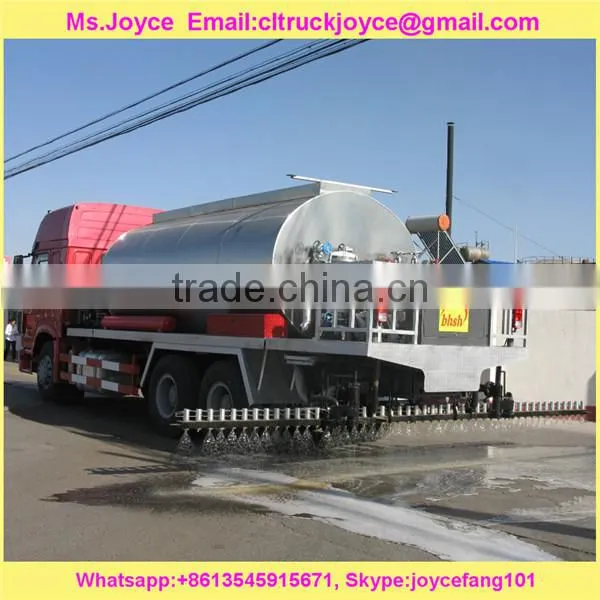

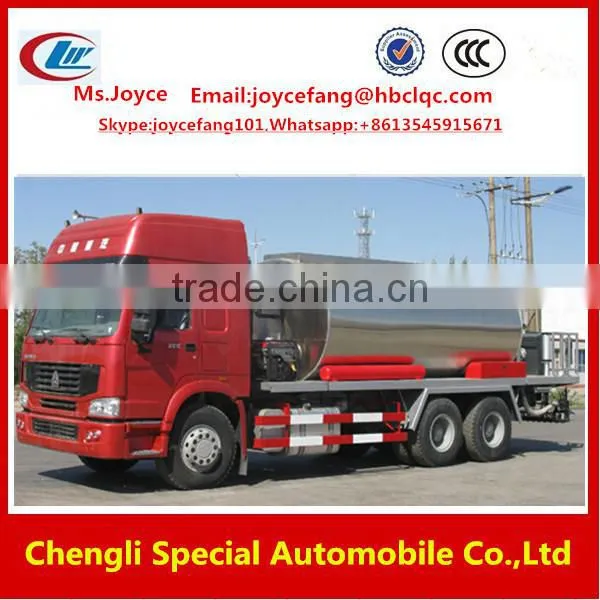

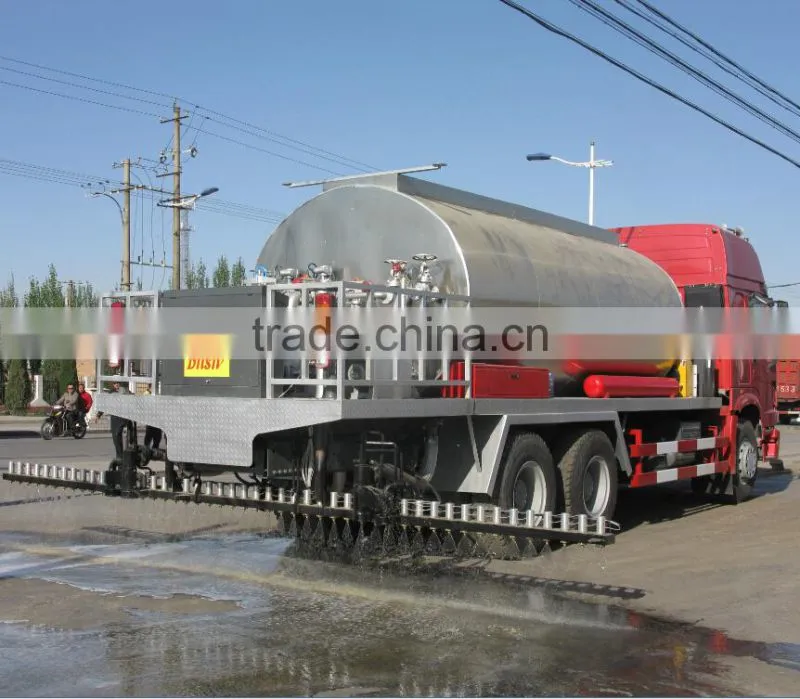

Howo Asphalt Distributor 8000L,Asphalt Mixers/Bitumen Sprayer
8000L Standard Asphalt Distributor/ Bitumen Sprayer
1.export quality and experience
2. Howo, Foton, Dongfeng
3.with heating system
Advantages and characterstics
1:A key can control all nozzles (our patent),2.The tank has good heat-retaining performance.
3 Saving manpower and diesel,enviroment friendly.
Parameters&Specification
Mass parameter: Sino Truck Asphalt Distributor | |||
Kerb Weight(kg) | 8900 | Total Weight(kg) | 16000 |
Rated loading Weight(kg) | 7100 | Dimension(mm) | 8995×2490 ×3160 |
Chassis Parameter: | |||
Chassis Model | ZZ1164G4715C | Tyre model | 9.00-20 |
Wheelbase (mm) | 5000 | Tread mm | 2020/1860 |
Front Overhang(mm) | 1430 | Rear Overhang(mm) | 2565 |
Approach angle,Departure angle | 20°/11.3° | Minimum Ground Clearance (mm) | 250 |
Engine parameter: | |||
Engine model | JID17B00287/YC6J90-33 | Manufacturer | SINO TRUCK |
Max.Power(kw) | 140 | Max. Torque(N.m) | 550/1300-1800 |
Fuel | Diesel | Displacement(ml) | 4752 |
Spray specification: | |||

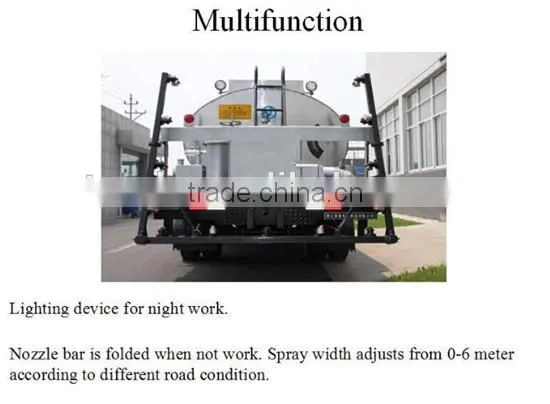

Tank Capacity(L) | 8000 | Spray width | 6000mm |
Hydraulic pump model | CBQ-F550 | Spray Value | 0.5-3.0(Kg) |
Hydraulic motor | L2F63W2P2 (Liyuan) | Insulation Thickness | 50mm |
Controller | / | Nozzles | 39 |
Burner | G20(Riello) | Asphalt pump | CB450 |
Generator(Converter) | YGBT2500 |
|
|
Other parameter: | |||
Max. truck speed(km/h) | 95 | Max. Grade ability | >23% |
Spring films(Front/Rear) | 11/10+10 | Minimum turning diameter (m) | 18.4 |
Axis No. | 2(4*2) |
|
|
Shipment &Package
We also can produce and supply:
Our leading varieties include more than 300 types of trucks and tanks such as
1.Water truck 2.Fecal suction truck 3.Garbage truck
4.Sewage suction truck 5.Fuel tank truck 6.High altitude operation truck
7.Truck with crane 8.Dump truck 9.Instructional truck
10.Van truck 11.Semi-trailer 12.Fire engine, Spares
13.Refrigerator truck 14.Water wagon 15.Tractor
16.High-altitude water truck 17.Bulk cement tank truck 18.Chemical liquid tank truck
19.Concrete mixer truck 20.Led advertising truck 21.Bulk cement tank semi trailer
Chengli group ~ China top 500 private manufacturing enterprises
1.Pament terms:
30% T/T payment in advance,70% to be balanced before delivery from Shanghai port.
2.MOQ: 1set
3.Contact me :
If you are interested in any types of our products or even you have special needs or confusions, plz. contact Joyce Fang, who is professional in this field and always willing to give you a hand.
