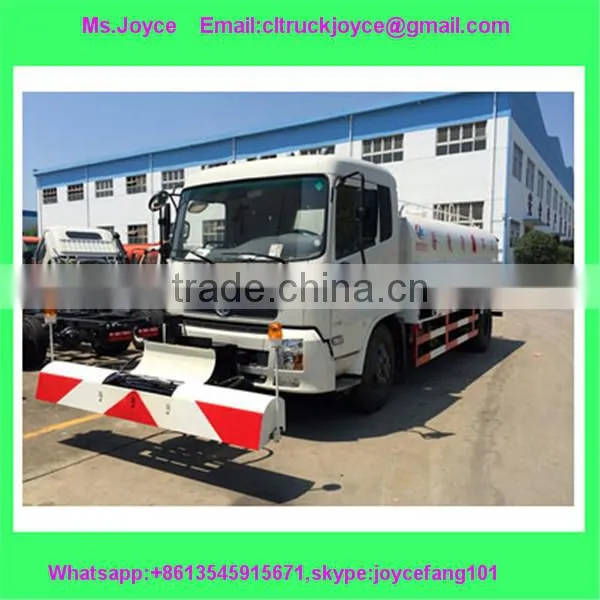

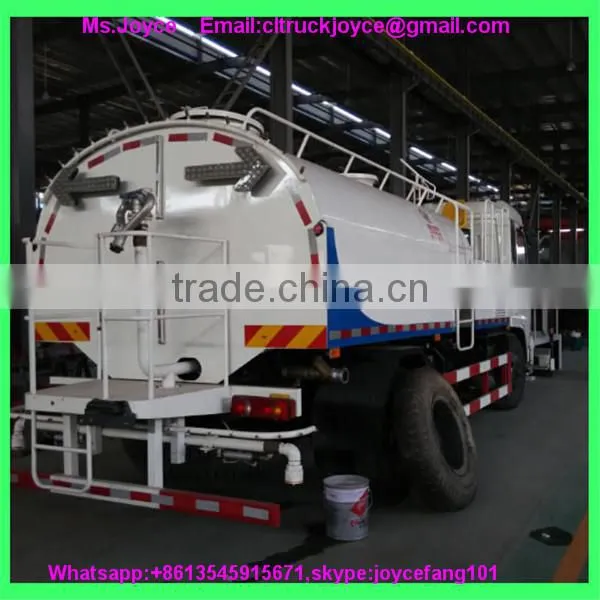

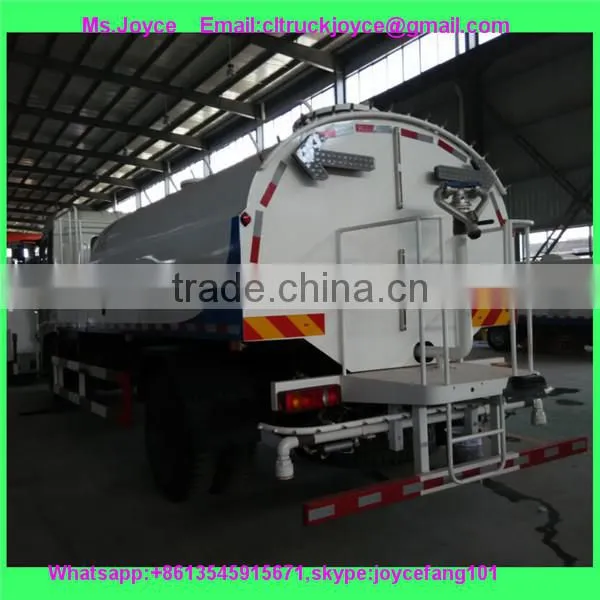

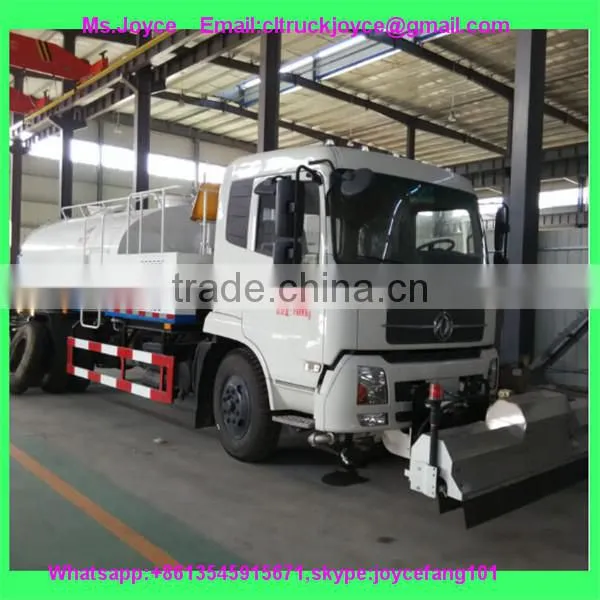

10000l High-pressure Sewer Flushing Vehicle For Sale
Features:
1.Main material of tank use Q345 steel,high strength,compared with ordinary steel materials,under the same thickness increase 60% strength than ordinary low carbon steel;Tank use epoxy anti-corrosion material handling,
great corrosion resistance, greatly extending the life of tanker.
2.Using Hangzhou Veyron sprinkler pumps,with characteristics of output power
and high pressure .
3.Sprinkler system install manual valves and pneumatic valves,both manual and automatic control can be used,tank Install alarm system of
low water level to prevent damage to the pump because of water shortage.
4.Tank is equipped with a spacious rear platform, people can operate on thestage, the use of high-pressure spray gun with a long-range, can do long-range spraying operations,High pressure spray gun nozzle can be achieved
by manually adjusting the water column, mist spray, mist,heavy rain and
light rain to meet different needs.
high-pressure water system:
Before cleaning device’s cleaning width 2.5m ~ 3.5m, we can control, when the adjustable spray rod shrink, to achieve enhanced the dual water wash.
Using natural gas vice engine to drive high pressure pumps and working device hydraulic system, high pressure cleaning speed can be controlled at will.
Liquid, gas central control, has good man-machine interface, operation can be
convenient and flexible.
Use of international brand-name high-pressure pumps, reliable performance,
long life, ensuring the cleaning effect; inlet nozzle, jet stability, low pressure loss.
Using modular combination design, implement a variety of cleaning functions and auxiliary work function, a multi-purpose machine.
Spray on left and right angle is suitable for efficient water-saving ground pavement,
curbs, guardrails isolation belt, sidewalks.
High pressure spray gun not only can be use clear signs, billboards, etc.; but also can spray dust,adjust air humidity and spray air disinfectant.
Application:
Clw8125GYY3 is high-pressure cleaning cars that specialized use in city
sanitation.Its working principle is:Using high-pressure pumps to generate
high-pressure water, the spray nozzle holder, the role of the formation of
a high-pressure water surface, the old dirt road clean; or high-pressure
water through the left, right corner of the puff out, cleaning curbs,sidewalks and isolation belt guardrail; using a high pressure spray gun can also be
cleaned signs, billboards, viaducts, etc.; spray system,with a strong spray
dust and regulate air humidity function.
This high-pressure cleaning truck fully take advantage of the kinetic energy of the high-pressure water,by way of high pressure,low flow to cleaning,decontamination capabilityand efficient water conservation.Mainly used for urban roads,squares,highways,bridges,tunnels, large warehouses, port operations and road cleaning and spray dust.
Truck name | Dongfeng tianjin Street Washing Truck | ||
Chassis model | DFL1120B11(cleaning road , Pipeline dredge, computer intelligent control) | ||
Volume | Garbage box 4m3, sewage tank 2m3 | ||
Sweeper specification | Cleaning width | 3000mm | |
Cleaning speed | 3-20km/h | ||
Cleaning capacity | 9000-60000m2/h | ||
Cleaning Efficiency | 98% | ||
Maximum suction particle size | 120mm | ||
Suction mouth ground clearance | 200mm | ||
Discharge angle | 45 | ||
Discharge height | 970mm | ||
Truck information | Vehicle size | 8290×2370×2760 | |
Total mass | 12495 | ||
Fuel type | Diesel | ||
fuel consumption (L) | 19L/100km | ||
Max speed | 100 | ||
Engine specification | Model | ISDe180 40 | ISDe160 40 |
Power /horsepower | 132/180 | 118/160 | |
Manufacture | Dongfeng | Dongfeng | |
Type | 6-cylinder | ||
Chassis specification | Drive type | 4×2 | |
Wheelbase | 5000,4700mm | ||
Front /rear axles | 5T/10T | ||
Leaf spring quantity | 7/9+6 | ||
Tyre size | 9.00-20,9.00R20 | ||
Air condition | Option | ||
Performance | 1) They have ultimate performance for very dirty roads minimum consumption (for both fuel and brushes) 3) The flexibility of the production department, which facilitates the ability to adapt the machine to local requirements 4) All the critical parts in our products are from worldwide suppliers, so it is easy to find a dealer everywhere in the world if something were to happen. 5) Continuous innovations that make the difference. | ||
2.dongfeng 8 tons street sweeper truck images:
Our road washing truck details :
CLW road cleaning truck,street sweeper truck brand : Dongfeng, Foton,Howo, Jac, Faw, Sinotruk, etc.
Street Sweeper Truck,Road cleaning truck, road washing truck, road sweeper truck, water truck ,garbage truck manufacture : Chengli Special Automobile Co.,Ltd
Pls Email me for more road cleaning truck, road washing truck, road sweeper truck,wash car, water truck, garbage truck, etc.
