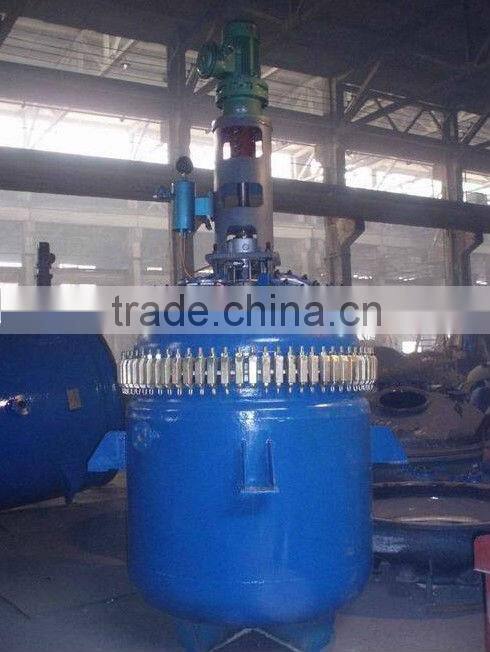

Stainless Steel SS304 316L Reactor
- FOB Dalian port China or CIF
- T/T PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Liaoning, China | |
| Brand Name | FHPEE (or OEM) | Model Number | FHK,FHC | |
| Dimension(L*W*H) | According Specific Requirement/Order, OEM service | Capacity | 50-35000 liter | |
| Weight | 50- 15000 Kgs |
Packing: Ocean transfer suitable strong steel frame plus clad plates
Product Description
Specifications
1.Agitation efficient 2. Ready-to Use 3.Durability ctionality5. 50- 60000 liter 6. Economic efficient 7. easy install

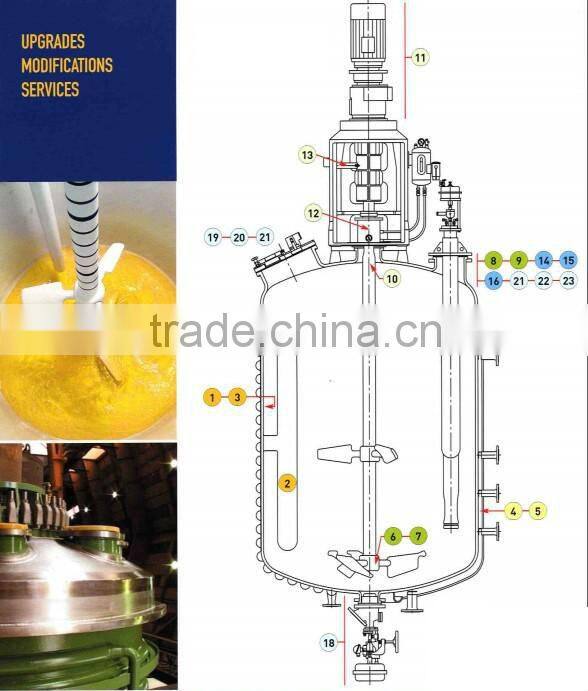

dimensions, mm
Code | Nominal Volume VN(L) | ||||||||
F2000 | F3000 | F5000 | F6300 | F8000 | F10000 | F12500 | F16000 | ||
DN | 1450 | 1600 | 1750 | 1750 | 2000 | 2200 | 2200 | 2400 | |
D0 | 1015 | 1120 | 1220 | 1220 | 1400 | 1540 | 1540 | 1680 | |
D1 | 1600 | 1750 | 1900 | 1900 | 2200 | 2400 | 2400 | 2600 | |
D2 | 1809 | 1960 | 2112 | 2112 | 2506 | 2618 | 2618 | 2822 | |
D3 | 30 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | |
D4 | 1075 | 1300 | 1400 | 1400 | 1600 | 1800 | 1800 | 1950 | |
D5 | 600 | 600 | 600 | 600 | 800 | 800 | 800 | 800 | |
H | 1800 | 2250 | 2888 | 3244 | 3310 | 3509 | 4053 | 4346 | |
H1 | 1130 | 1200 | 1400 | 1400 | 1430 | 1500 | 1500 | 1600 | |
H2 | 400 | 400 | 400 | 400 | 400 | 470 | 470 | 470 | |
H3 | 800 | 850 | 900 | 900 | 1000 | 1075 | 1075 | 1130 | |
H4 | 1285 | 1409 | 1495 | 1495 | 1712 | 1781 | 1781 | 1964 | |
L | 3340 | 3915 | 4648 | 5005 | 5315 | 5606 | 6150 | 6595 | |
h | 240 | 240 | 270 | 270 | 270 | 360 | 390 | 360 | |
| 0.25Mpa | 28-BM12 | 28-BM12 | 28-BM12 | 28-BM12 | 40-BM12 | 40-BM12 | 40-BM12 | 40-BM12 |
0.6Mpa | 36-AM12 | 36-AM12 | 36-AM12 | 36-AM12 | 36-AM16 | 36-AM16 | 36-AM16 | 36-AM16 | |
| BLD3 | BLD3 | BLD4 | BLD4 | BLD5 | BLD5 | BLD5 | BLD6 | |
| 100/50 | 125/80 | 125/80 | 125/80 | 125/80 | 150/100 | 150/100 | 150/100 | |
kw | 4 | 5.5 | 7.5 | 7.5 | 7.5/11 | 11/15 | 15 | 18.5 | |
m3 | 2.42 | 3.74 | 5.98 | 6.86 | 9.01 | 11.67 | 13.65 | 17.4 | |
Please contact for more technical data and dimensions as well as our products catalogue for your reference.
- Max. Design Pressure:1 Mpa
- Max. Design Temperature: -20 C degree To 350 C degree
- The Glass-lining Thickness: 1.0-2.8 mm
- Final Hydrostatic Test: 1.6 Mpa
- The High Voltage- sparking test to Glass-lining: 20KV
- Radiography Shell / Head: welding Spot / Full
- Penetrate testing Shell / Head: welding Spot / Full
- Magnetic particle testing Shell / Head: welding Spot / Full
- Ultrasonic inspection Shell / Head: welding Spot / Full
- Joint Efficiency: 0.85 / 1.0
- Corrosion Allowance 1.0
- Water, steam or oil heating
- Mechanical sealing
- Cycloid reducer or gear box reducer
- Flameproof motor with gear box
- Impeller/anchor/paddle and customized glass lined/stainless steel agitator
Company Profile
We are a manufacturer of glass lined and stainless steel 304/316L reactors, vessels and heat exchangers with chemical, petrochemical, refining and environmental-friendly treatment. Our factory was built in 1998. Our subsidiary exporting company (FHPEE Engineered Products) is focusing on the exporting and importing business. We have many clients in East Asia, the Middle East as well as in Russia and other countries and regions. There are about 100 workers, including more than 10 engineers and more than 5 quality control staff members. We hold ISO9001:2000 certificate and Class D1 and D2 Pressure Equipment Manufacturer certificates issued by China. We have stainless steel tanks, vessels, glass lined reactors, mixers, blenders, heat exchangers, dryers, pumps, columns, compressors, dust collectors, blowers, centrifuges and others in stock. We have over 20 acres of process equipment area.
