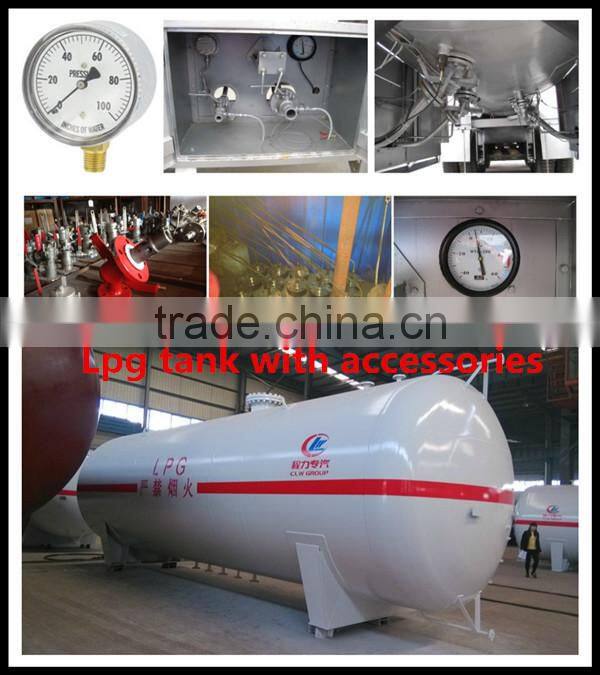

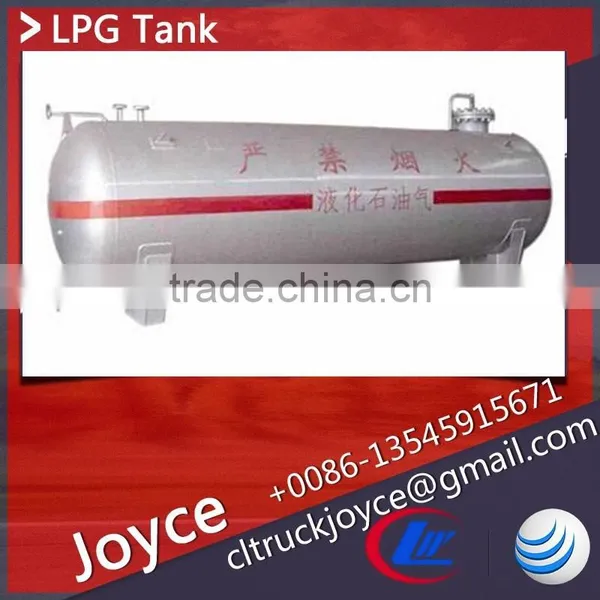

Lpg tank with Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves

item

unit

parameters

Products name

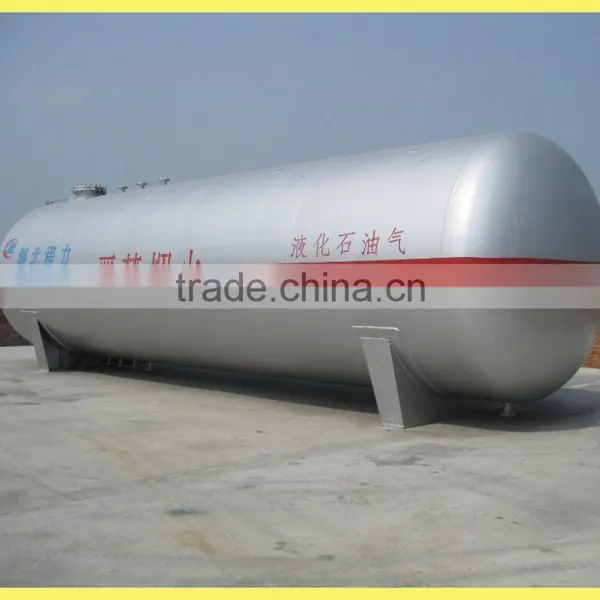

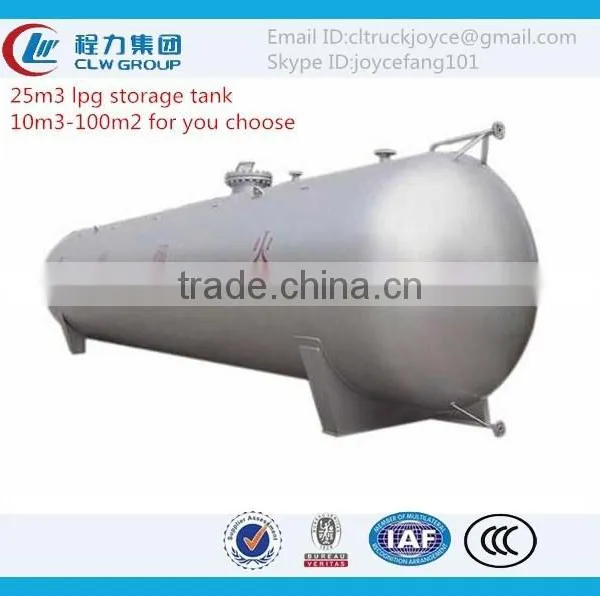

LPG storage tank

Products number

CLG1600-05

CLG31600-08

CLG1600-10

Filling medium

LPG(propane)

LPG(propane)

LPG(propane)

Overall dimentions(L*W*H)

mm

3070*1620*2210

4270*1620*2210

5260*1620*2210

Tank size(inner diameter*thickness*length)

mm

DN1600*10*3070

DN1600*10*4270

DN1600*10*5260

volume

m³

5

8

10

Net weight

kg

2030

2540

2950

Designing pressure

Mpa

1.77

1.77

1.77

Working pressure

Mpa

≤1.6

≤1.6

≤1.6

Working temperature

°C

≤50

≤50

≤50

Hydraulic test pressure

Mpa

2.22

2.22

2.22

Air test pressure

Mpa

1.77

1.77

1.77

Material of tank and accessory

Q345R,16MnIII

standard

GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures

accessory

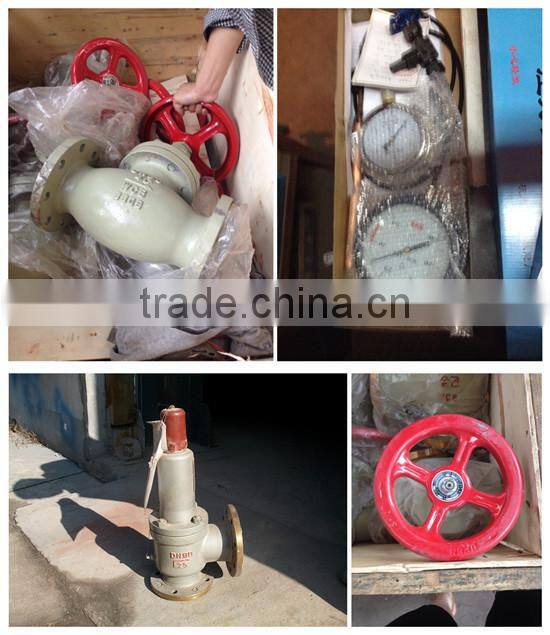

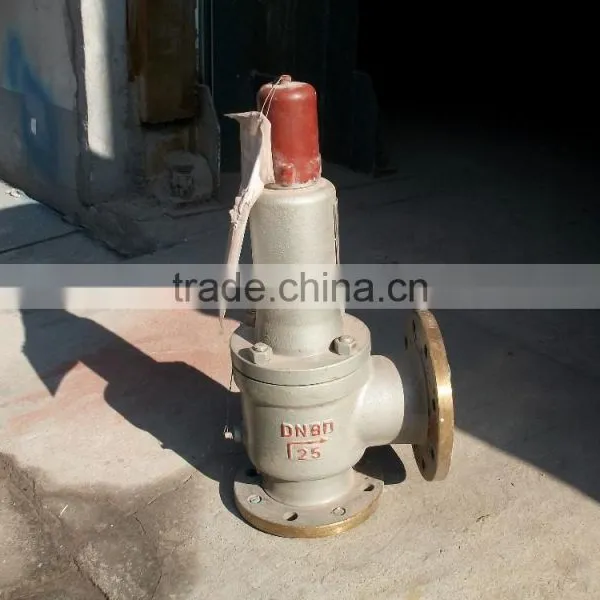

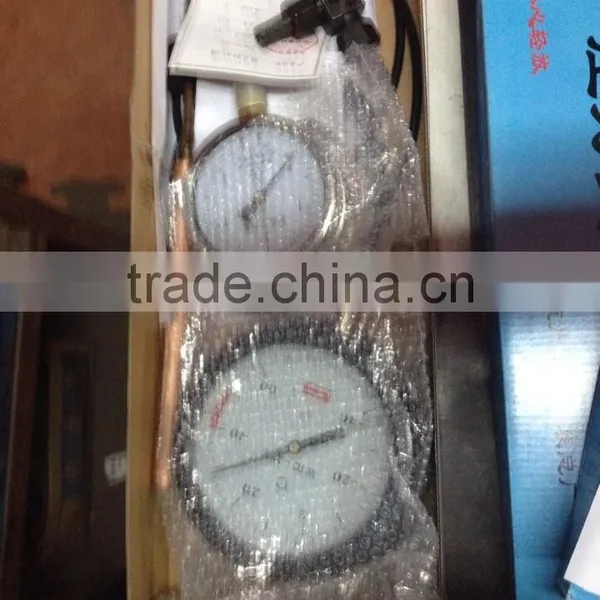

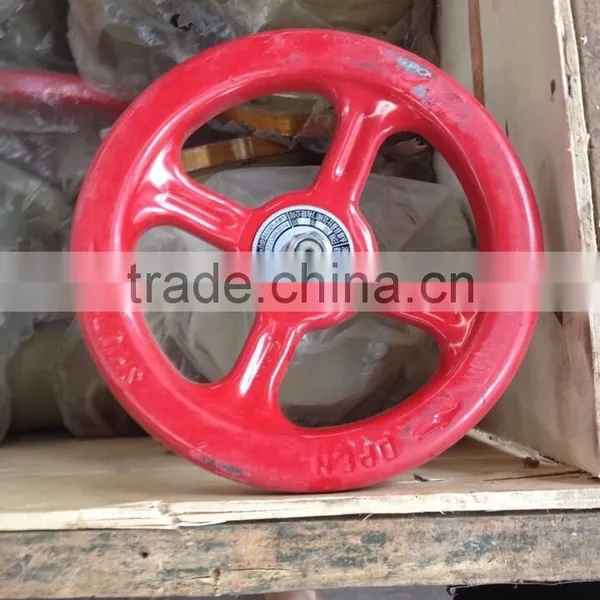

Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.
