16 Ton Boom Truck Crane,16T Mobile Crane,16 Tons Truck Mounted Crane
16 Ton Boom Truck Crane,16T Mobile Crane,16 tons Truck Mounted Crane
1. What's the application of our Crane Truck ?
Our truck mounted crane widely used in logistics,dock, marine, railway,highway,telecommunication,mine,Water Corporation,etc.
2. What's the advantage of our Crane Truck ?
a.Our boom truck crane with big oil tank volume, with strong lifting capacity, you could compare with other suppliers.

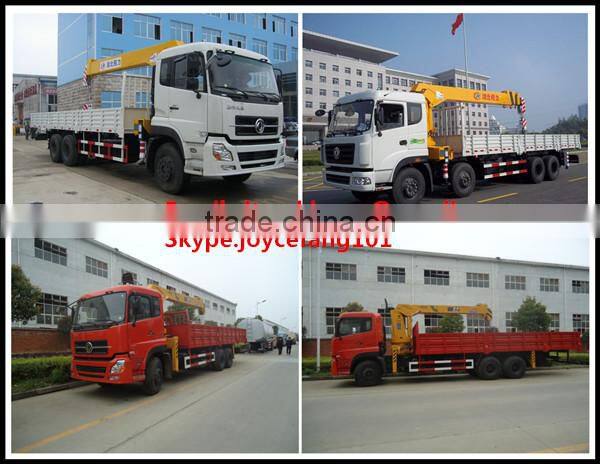

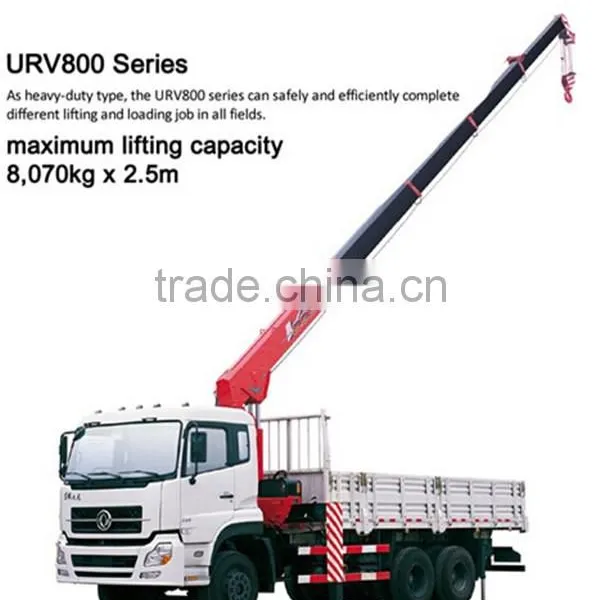

Products outlook :
3. The technical parameters of our 16 Ton Boom Truck Crane
Technical specification of crane | |||||||||||||
Model of crane | SQ16SA2 (16t Three straight arms) | ||||||||||||
Max.loading capacity(t) | 16 tons | Max.Lifting Moment(t.m) | 11.25 | ||||||||||
Rated power (kw) | 16 | Rated flow | 50L/min | ||||||||||
Section form | pentagon | Gyration Institution | Gyration speed(r/min) | 2 | |||||||||
Arm number | 3 arms(stretch 2 arms) | Gyration range° | 360(any) | ||||||||||
Length (m) | 3.68-8.395 | Leg (2legs in front) | Type | H | |||||||||
ing radius(m) | 8.0 | Span(m) | 2.28-5.1 | ||||||||||
Extending speed(m/s) | 0.2 | hydraulic system | System pressure(mpa) | 18 | |||||||||
Rangeability | 1-71 | Oil tank volume(L) | 70 | ||||||||||
Arm angular velocity (°/s) | 5.8 | safety device | Overwind alarm | ||||||||||
Max. Lifting height(m) | 10 | Self weight(kg) | 1550 | ||||||||||
Lifting speed of hook(m/min) | 7 | installation space | 900mm | ||||||||||
Diameter of wirerope(mm) | 8 | Matching the truck | Load above 5tons truck | ||||||||||
Length of wirerope(m) | 65 | ||||||||||||
Lifting capacity table |
| ||||||||||||
Working radius(m) | 2.25 | 3.0 | 3.5 | 5.0 | 5.5 | 6.5 | 7.5 | 8.0 |
| ||||
Rated loading(kg) | 5000 | 3680 | 2820 | 1580 | 1360 | 1050 | 830 | 750 |
| ||||
Technical specification of 16 T crane truck | ||
Unit | Crane truck | |
The truck with self unloading function,with aircondition in cab,with power handle | ||
Drive system |
| RHD or LHD |
Truck Model | CLW5160JSQ3 | |
Chassis model |
| EQ1167 |
Overall dimension | mm | 9000*2490*3560 |
Van body size | mm | 6140*2294*600 |
GVW | Kg | 15990 |
Mass in working order | 7595 | |
Rated quality | 8200 | |
Chassis loading capacity | T | 10-15t |
Wheelbase | mm | 5100 |
Axle load | kg | 5995/9995 |
Front /Rear overhang | mm | 1250/2650 |
App/departure angle | ° | 30/35 |
Tire specification | 9.00-20 | |
Number of axles | 2 | |
Number of tires | 6 | |
Number of Spring plate | 9/11+8 | |
Max Speed | KM/H | 80 |
Engine | diesel engine Cummins B170-33 170hp | |
Displacement /Horsepower | Cc/HP | 5900/170 |

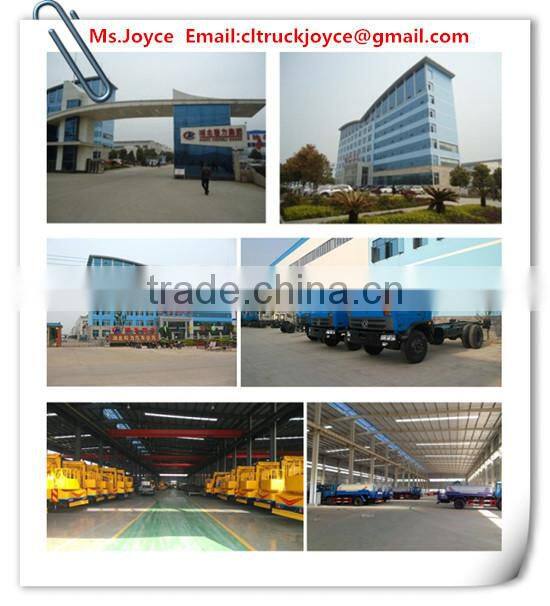

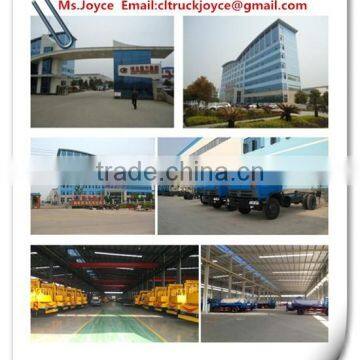

Company Outlook
Since being founded in 1998, ChengLi has continually worked to improve its production processes and production tools. Qualified personnel ensure the highest standards of quality control in the manufacture of the principal components and the final assembly. Covering an area of 8 hectares more than 5000 vehicles are produced each year. Our company has independent export right, the product had delivery to many countries around the word. Take 2008 for example, the amount of export reach 2000 units. The registered Labels CLW is well known in these years.
Based on high quality and advanced technology, the leading varieties include more than 200 types of trucks such as water truck, garbage truck, fecal and sewage suction truck,refuse compactor, fuel tank, aerial platform, truck with crane, dump truck, van truck, trailers, fire-fighting truck, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, LPG tank, etc. All products have passed the ISO9001-2000 and t 3C(China Compulsory Certification) standard.
Company certification
Company pass the 3 c certification, BV certification, iso9000 quality system certification, environmental quality certification, SGS certification, and products.At the same time the company has also issued by the national government contract and credit enterprise certification, as well as issued by the bank credit enterprise, credit enterprise and user vote through the network.
Other problem
No.1 Payment
We only Accept T/T or Western Union;(30%as deposite, after Inspectiing at our factory ,pay the blance 70%) If you don't accepet, We sincerely welcome you to our factory for inspecting or discussing
No.2 Packing
Nude, Covered with max, small type can be put into 20"GP,or 40GP,40HQ,big type can be carried by bulk ship or RO-ROshipping or according to your requirement
No.3.Delivery Time
We have lots of truck in stock, delivery time is 7-15days as long
Remarks :
The above Infomation is just for your reference.We can manufacure the truck as eachyour request.
Any questiones, pls feel free to reach me ,It would be great pleasure to be on your service.
Pls see below contact information or scan two-dimensional code
