Home > Manufacturing & Processing Machinery > Crane > Truck Crane > Hiab Crane,Kran,Grua,Palfinger,Effer,Fassi,Tadano Cranes 8-10 Ton

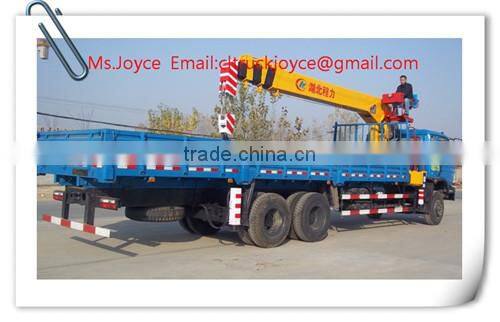

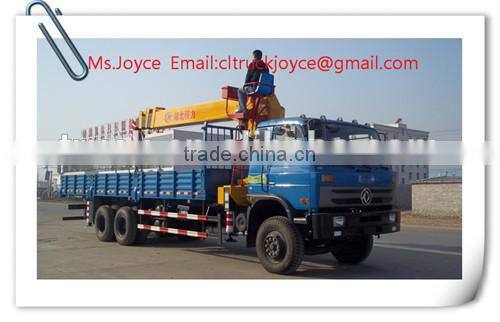

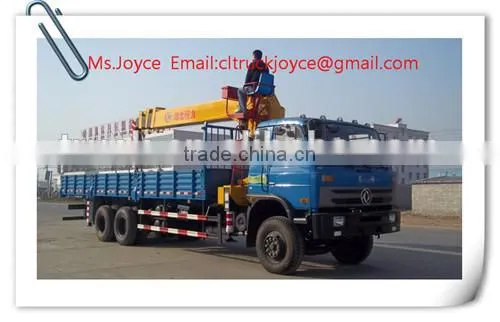

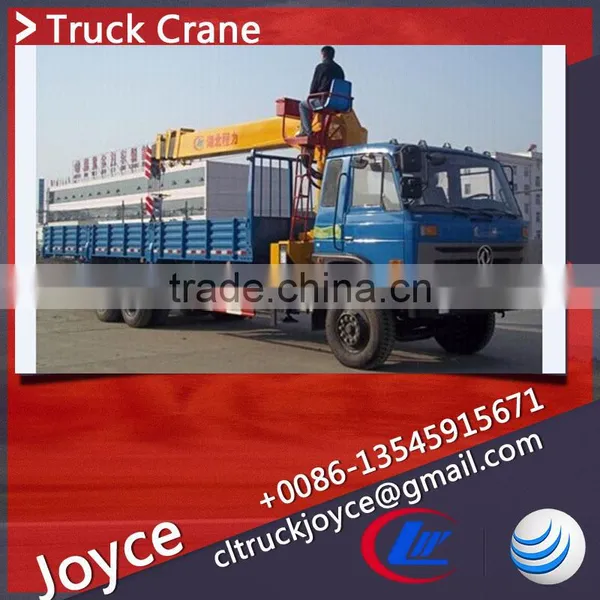

Hiab Crane,Kran,Grua,Palfinger,Effer,Fassi,Tadano Cranes 8-10 Ton

US$ 52,000 - 58,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Application:

load and lift goods

Rated Loading Capacity:

10000kg

Contact Supplier Request Quote Chat Now

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application load and lift goods

Rated Loading Capacity 10000kg

Rated Lifting Moment 25T.M

Max. Lifting Load 10000kg

Max. Lifting Height 15.5m

Span 5.9m

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW5252JSQ3

Certification CCC,ISO

Warranty 12months

After-sales Service Provided Overseas third-party support available

Hiab crane,Kran,Grua,Palfinger,Effer,Fassi,Tadano cranes 8-10 ton

we are hubei chengli special automobile co., ltd, which is a professional manufacturer of crane, kran, grua, fassi, tadano, palfinger, effer and many other special purpose vehicles, such as water wagon, fuel tank trucks, tipper, LPG tank, tractor, kinds of semi-trailers and so on.

our main oversea markets are Africa and Asia, with low price and good quality, we provide both left hand driving and right hand driving trucks as your target market. we also make production according to your special requirements about the trucks swiftly.

Dongfeng Truck (left hand driving or right hand driving)
truck item	10T truck crane		Overall size(mm)			1110025003750
GVW	25000kg		Cargo van size(mm)			75002294550
Rated loading	12000kg		wheel base(mm)			5370+1300
Curb weight	12805kg		axles			3
steering modes	steering wheel		springs			8/13
tires	10*10.00-20		wheel track			1940, 1860/1860
front/rear overhang	1245/3185		approach/departure angle			32/13
Engine parameters
engine model	B210-33		engine brand			Cummins engine
engine displacement	5900		engine power			210hp
fuel consumption	28.1L/100km		fuel type			diesel
Crane parameters	10000kg truck crane
Max lifting weight	10000 kg		Max lifting moment			250000 n.m
lifting height	11m		working radius			9.3m
gap of legs	2.2-5.7m		Rotary range			360°
the number of arms	3		Hydraulic system pressure			24MPa
cross section of arms	pentagon		Oil tank volume			180L
weight of the crane	3100kg		matched heavy trucks			more than 12 tons
Working radius(m)	2.5	3.5	4.5	5.5	6.5	7.5	8.5	9.3
Rated loading(kg)	10000	7140	5500	4540	3800	3220	2800	2700
Production cycle	Around 25 working days
Warranty	12 months from the day of supply
FOB Shanghai	USD 53800/set
